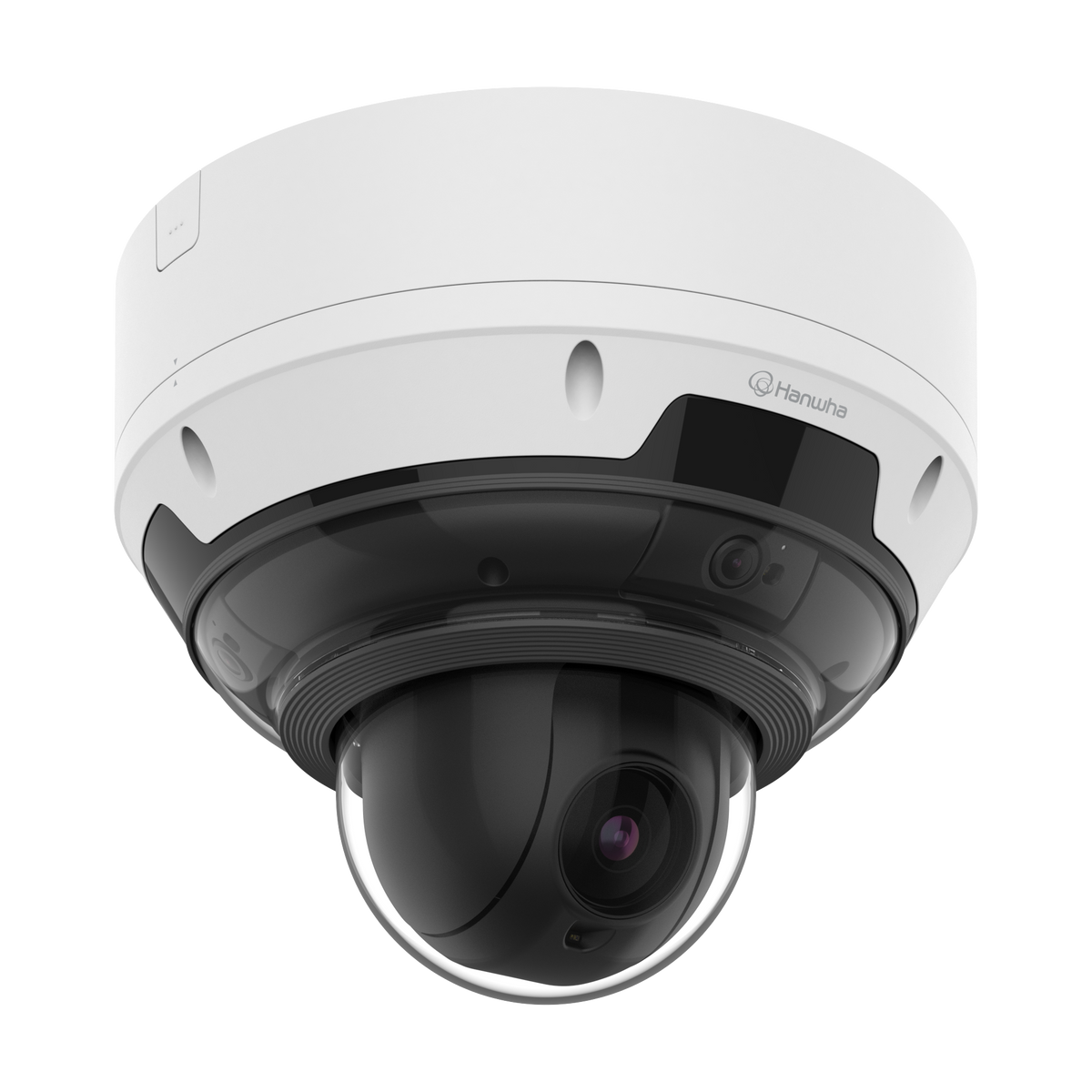

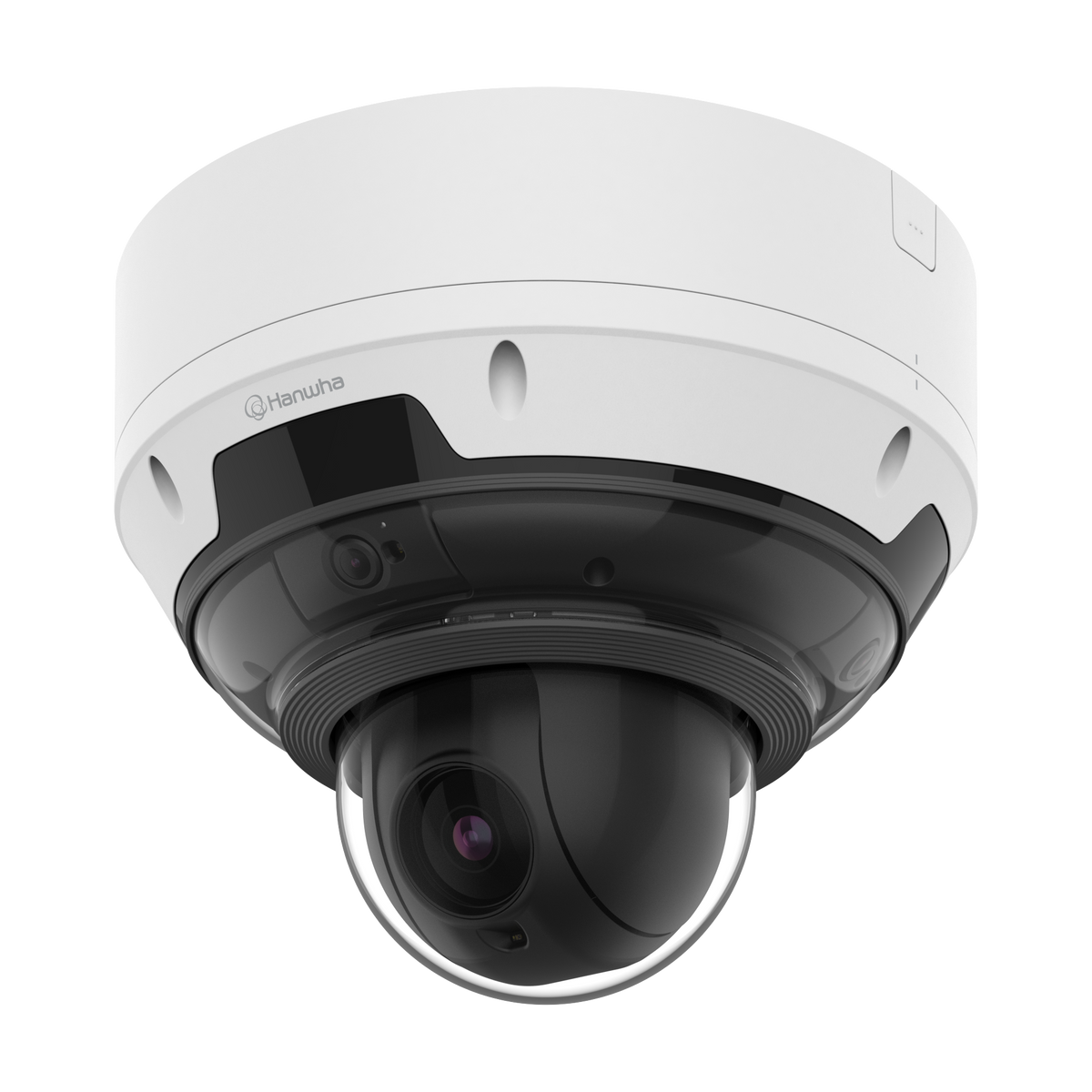

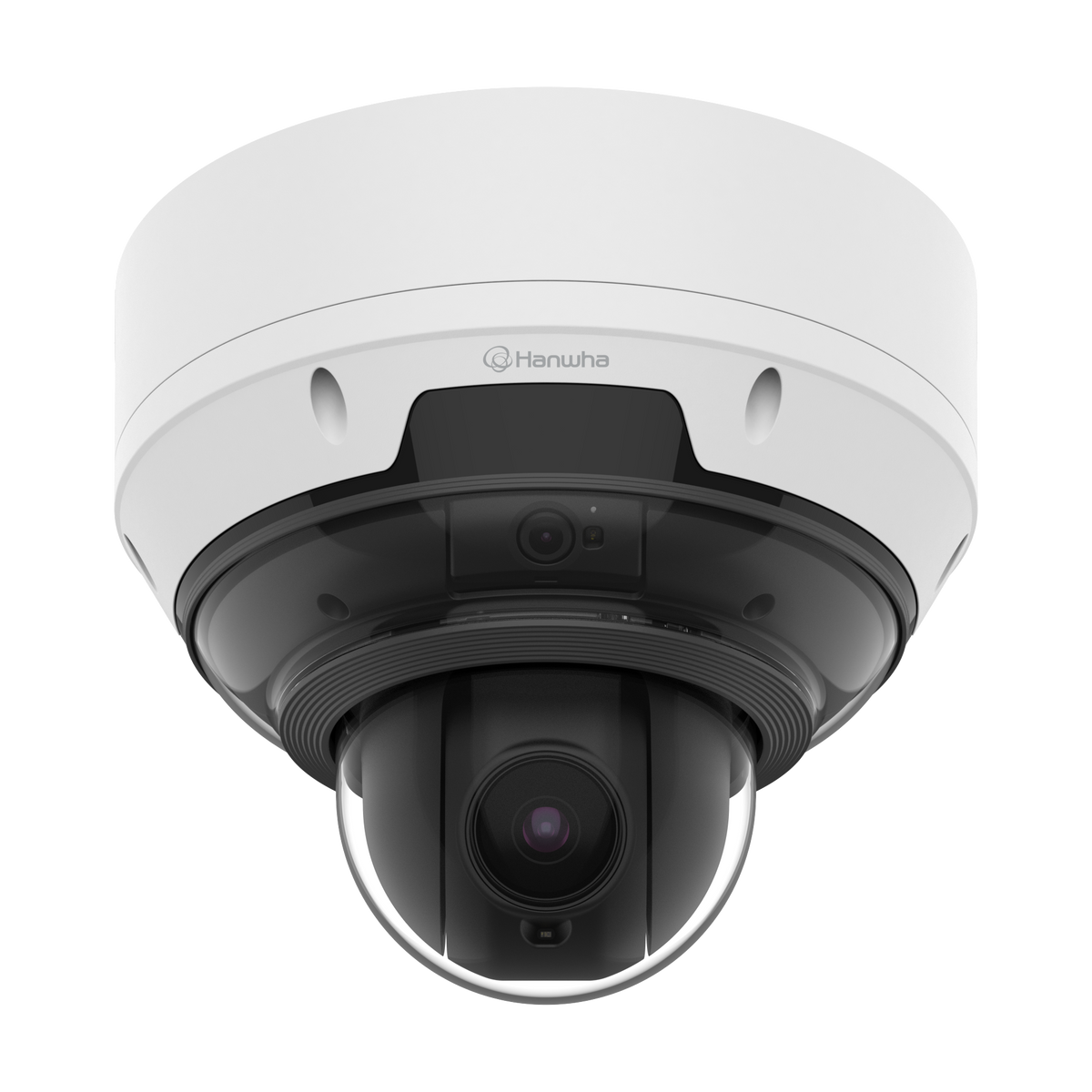

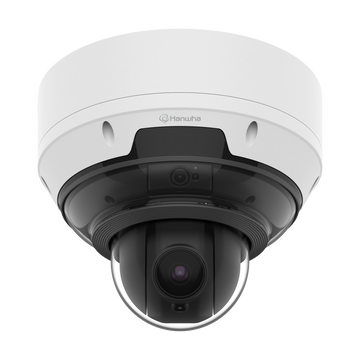

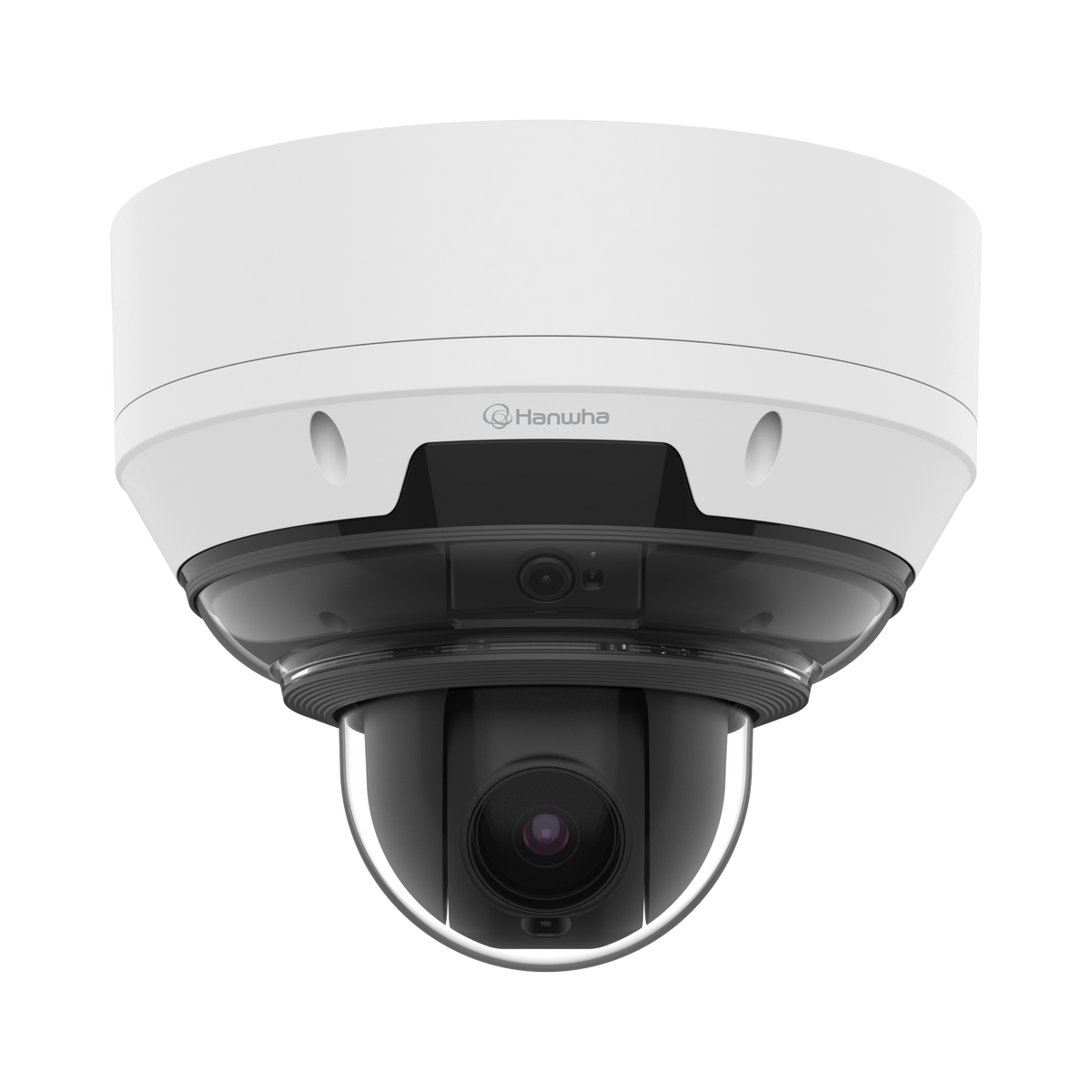

Hanwha Vision PNM-C19183RVTP 5MP x 3CH + 4MP outdoor PTZ Camera

Regular price $1,600.00
Sale price $1,600.00 Regular price
Unit price
Hanwha Vision PNM-C19183RVTP 5MP x 3CH + 4MP outdoor PTZ Camera

Hanwha Vision PNM-C19183RVTP 5MP x 3CH + 4MP outdoor PTZ Camera

Regular price $1,600.00
Sale price $1,600.00 Regular price
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision PNM-C19183RVTP 5MP x 3CH + 4MP outdoor PTZ Camera

Key Features

  • 4MP x 18x PTZ
  • AI Based Analytics and Business Intelligence
  • Auto calibration
  • Supports Smart Zoom (Advanced Handover)
  • WiseStream (Based on AI engine)

Video

  CH1 CH2 CH3 CH4
Imaging Device Size 1/2.8" - - -
Type CMOS - - -
Resolution   2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264 30fps 30fps 30fps 30fps
MJPEG 30fps(@5MP Max. 5fps) 30fps(@5MP Max. 5fps) 30fps(@5MP Max. 5fps) 30fps(@4MP Max. 5fps)
Min. Illumination (Lux) Color(1/30sec, 30IRE) 0.08 0.08 0.08 0.05
BW(1/30sec, 30IRE) 0.008 0.008 0.008 0.005
Video Out   USB: USB Type C. Preview and installation ONLY. Requires WiFi dongle. - - -

Lens

  CH1 CH2 CH3 CH4
Focal Length (mm)   2.4 2.4 2.4 5.42~98.29
Zoom Ratio Optical - - - 18x
Digital - - - 32x
Max Aperture Ratio (F number) Wide 2.0 2.0 2.0 2.0
Tele - - - 3.27
Angular Field of View Horizontal 123° 123° 123° 53.1°~3.39°
Vertical 91° 91° 91° 31.75°~1.98°
Diagonal 159° 159° 159° 60.8°~3.92°
Min. Object Distance   0.5m(1.64ft) 0.5m(1.64ft) 0.5m(1.64ft) 5.0m(16.4ft)
Focus Control   Fixed Fixed Fixed Oneshot AF, Focus save
Lens Type   Fixed iris Fixed iris Fixed iris Adaptive P iris

Pan / Tilt / Rotate

  CH1 CH2 CH3 CH4
Pan Speed Preset - - - Max. 600°/sec
Manual - - - 0.024°/sec~250°/sec
Tilt Speed Preset - - - Max. 500°/sec
Manual - - - 0.024°/sec~250°/sec
Sequence   - - - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy   - - - ±0.2°

Operational

  CH1 CH2 CH3 CH4
Direction Indicator   - - - Support
Day & Night   Auto(ICR) - - -
Backlight Compensation   BLC, WDR, SSDR BLC, WDR, SSDR BLC, WDR, SSDR BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB)   120 - - -
Digital Noise Reduction   WiseNRⅡ(Based on AI engine), SSNRⅤ - - -
Digital Image Stabilization   - - - Support
Defog   Support - - -
Motion Detection Quantity 8ea - - -
Shape 8point Polygonal zones - - -
Privacy Masking Quantity 12ea 12ea 12ea 32ea
Shape 4point Quadrangle zones 4point Quadrangle zones 4point Quadrangle zones 4point Quadrangle zones
Color / Option Gray, Green, Red, Blue, Black, White Gray, Green, Red, Blue, Black, White Gray, Green, Red, Blue, Black, White Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control   Low, Middle, High Low, Middle, High Low, Middle, High Off, Max gain, Manual
White Balance   ATW, AWC, Manual, Indoor, Outdoor ATW, AWC, Manual, Indoor, Outdoor ATW, AWC, Manual, Indoor, Outdoor ATW, NarrowATW, AWC, Manual, Indoor, Outdoor, Mercury, Sodium
LDC   Support Support Support -
Electronic Shutter Mode Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine) - - -
Speed Range 1/5~1/12,000sec - - -
Video Rotation   - - - Flip, Mirror
Alarm Interface Others Support alarm I/O via optional I/O box - - -
Alarm Triggers   Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription - - -
Alarm Events When Alarm Trigger Occurred   File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, MQTT: publication, Smart zoom - - -
Audio In   Support via optional I/O box - - -
Audio Out   Support via optional I/O box - - -
Light Type   IR LED IR LED IR LED -
Light Viewable Length IR 15m(49.21ft), 10m(32.8ft) under 3m height installation 15m(49.21ft), 10m(32.8ft) under 3m height installation 15m(49.21ft), 10m(32.8ft) under 3m height installation -
IR Wavelength   850nm 850nm 850nm -
Auto Tracking   - - - Object auto tracking(Person/Vehicle), Target lock tracking

Analytics

  CH1 CH2 CH3 CH4
Classified Object Type   Person, Face, Vehicle, License plate - - -
Attributes Person Upper/Lower clothes color Upper/Lower clothes color Upper/Lower clothes color -
Vehicle Type(car, bus, truck, motorcycle, bicycle), Color Type(car, bus, truck, motorcycle, bicycle), Color Type(car, bus, truck, motorcycle, bicycle), Color Type(car, bus, truck, motorcycle, bicycle)
Thumbnail   BestShot BestShot BestShot DetectionShot
Analytics Events Based on AI Engine Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Normal Tampering, Audio detection, Virtual area(Appear/Disappear) Tampering, Audio detection, Virtual area(Appear/Disappear) Tampering, Audio detection, Virtual area(Appear/Disappear) Tampering, Fog detection, Audio detection
Business Intelligence Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting People counting, Queue management, Heatmap, Vehicle counting People counting, Queue management, Heatmap, Vehicle counting -

Network

  CH1 CH2 CH3 CH4
Ethernet   Metal shielded RJ-45(10/100/1000BASE-T) - - -
Video Compression   H.265/H.264: Main/Baseline/High, MJPEG - - -
Smart Codec   Manual, WiseStream(Based on AI engine) Manual, WiseStream(Based on AI engine) Manual, WiseStream(Based on AI engine) Manual, WiseStreamⅡ
Bitrate Control   H.265/H.264: CBR or VBR, MJPEG: VBR - - -
Streaming Unicast Up to 5 users Up to 5 users Up to 5 users Up to 5 users
Multicast Support Support Support Support
Multiple Streaming Up to 4 profiles Up to 4 profiles Up to 4 profiles Up to 3 profiles
Protocol   IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT, SMTP(StartTLS) - - -
Application Programming Interface ONVIF S, G, T, M - - -
Others SUNAPI(HTTP API), Hanwha Vision Open Platform - - -
Direct Cloud Connection   Support - - -

Security

  CH1 CH2 CH3 CH4
OS / Firmware Protect   Encrypted firmware, Secure boot, Signed firmware
User authentication   Digest authentication, Prevent brute-force attack
Network authentication   IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication   HTTPS, WSS(WebSocket Secure), SRTP
Access Control   IP-based access control
Data Protect   Encryption credentials, Encrypt compress for live recording file export
Audit   Access / System / Event Log management
Device ID   Device certificate(Hanwha Vision Root CA)
Secure Storage   SDcard partition encrypt(AES-256), Secure element
Supply Chain Security   SBOM
Security Certificate   Secure element(FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645), Security Built-in Process Certification (IEC 62443-4-1)

General

  CH1 CH2 CH3 CH4
SoC Type Wisenet 7 + NT98690 - - -
Memory RAM 8GB 8GB 8GB 4GB
Flash 8GB 8GB 8GB 512MB
Edge Storage Micro SD/SDHC/SDXC Max. 1TB x 2slot(Total 2TB) - - -
Edge Storage(OnCloud) Micro SD/SDHC/SDXC Max. 1TB x 2slots (Total 2TB) *Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording. - - -

Environmental & Electrical

  CH1 CH2 CH3 CH4
Operating Condition Temperature -40°C~+55°C(-40°F~+131°F)
Humidity 0~100% RH(condensing)
Others Start up should be done at above -35°C, Humidity control with AIR vent
Storage Condition Temperature -50°C~+60°C(-58°F~+140°F)
Humidity 0~90% RH(non-condensing)
EPA(Effective Projected Area)   0.038㎡
Input Voltage   PoE++(IEEE802.3bt type3, Class6)
Power Consumption PoE 42W

Mechanical

  CH1 CH2 CH3 CH4
Color   White
Material   Aluminum, Hard-coated dome
Material Management Declaration RoHS(EU RoHS directive 2011/65/EU and IEC/EN 63000:2018), REACH(Regulation (EC) No. 1907/2006), Conflict mineral policy(Section 1502 of US Dodd Frank Act)
RAL Code   RAL9003
Product Dimensions   ø251.4x212mm(ø9.9x8.35")
Product Weight   4,800g(10.58lb)
Compatible Conduit Hole   19.1mm(3/4")(M25)
Compatible Gang Box   Single, Double, 4" Octagon, Square
