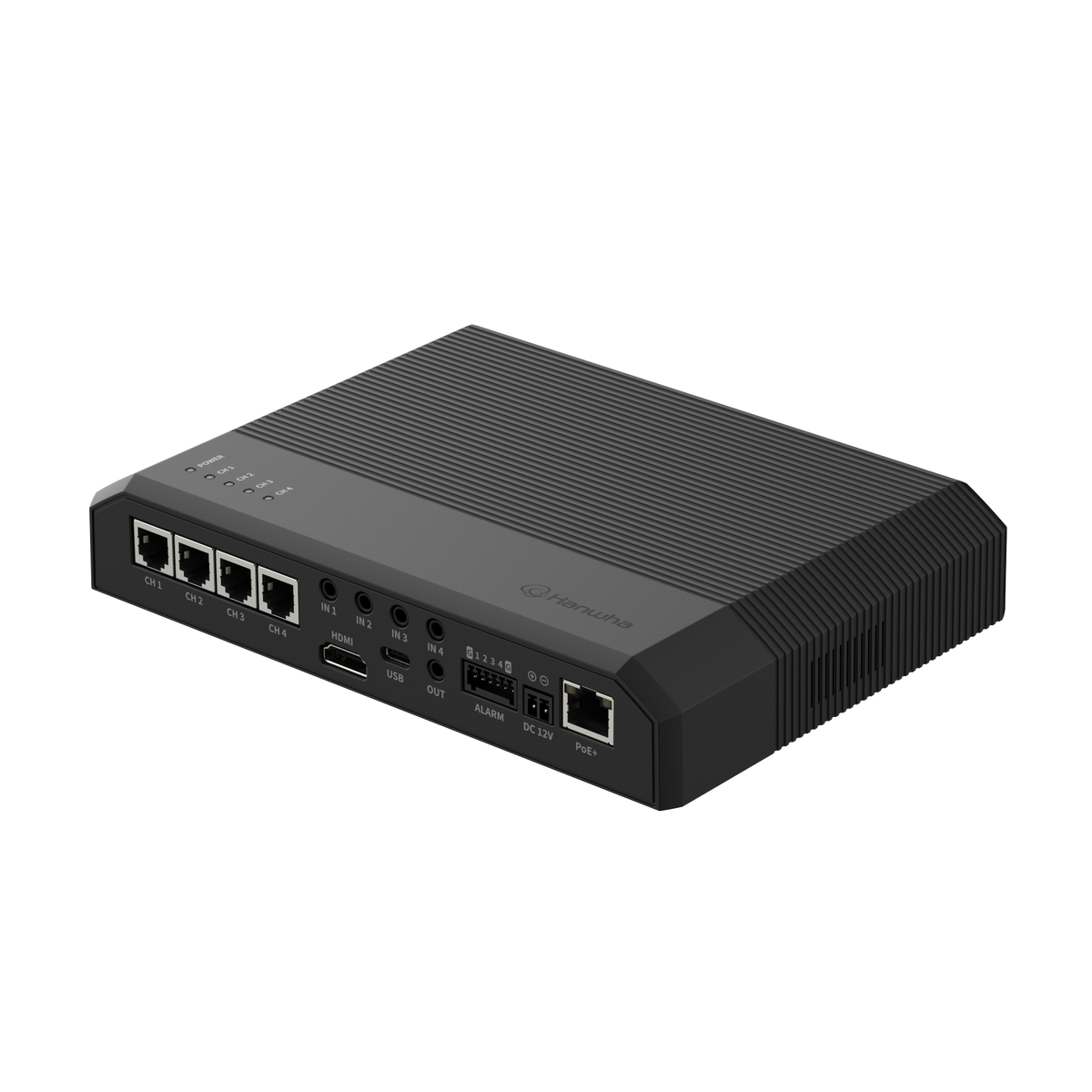

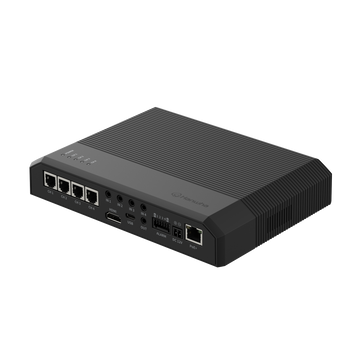

Hanwha Vision PNM-C20000QB 5MP/2MP x 4CH AI Remote head Camera

Regular price $1,600.00
Sale price $1,600.00 Regular price
Unit price
Hanwha Vision PNM-C20000QB 5MP/2MP x 4CH AI Remote head Camera

Hanwha Vision PNM-C20000QB 5MP/2MP x 4CH AI Remote head Camera

Regular price $1,600.00
Sale price $1,600.00 Regular price
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision PNM-C20000QB 5MP/2MP x 4CH AI Remote head Camera

Key features

  • Object recognition - person/face/vehicle/license plate
  • IVA - Virtual Line/Area, Enter/Exit, Stay, Direction, Intrusion
  • People and vehicle counting (based on AI)
  • Shock detection with gyroscope sensor
  • Business Intelligence - People/Vehicle Counting
  • Supports 4 audio inputs / 1 audio output
  • WiseStream (based on AI engine) Secure Element - FIPS 140-3 Level 3, CC EAL6+

video

resolution 2592x1944, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240, 320x180
Max. frame rate H.265/H.264 30 fps/25 fps (60 Hz/50 Hz)
MJPEG 30 fps
Video output USB: Micro-USB Type C, HDMI (Single/Quadruple view)

lens

Optional lens SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA, SLA-T2480WDA, SLA-T2480WA, SLA-T2480BA, SLA-T2880BA, SLA-T4680DA, SLA-T4680DSA, SLA-F1080FA, SLA-F2480A, SLA-F2480VA, SLA-F4780A, SLA-F4780VA, SLA-F2480WDA, SLA-F2480WA, SLA-F2480BA, SLA-F2480DA, SLA-F2480DSA, SLA-F2480HA, SLA-T4615VA, SLA-T2480HA

Operational

Day & Night (Electric) car
Backlight compensation BLC, WDR, SSDR
Wide dynamic range (dB) 120
Digital noise reduction WiseNR II (based on AI engine), SSNR V
Digital image stabilization Support
Defogging Support
Motion detection Crowd 8EA
form 8-point polygon zones
Privacy masking Crowd 16ea
form 4-point square zones
Color / Option Grey, Green, Red, Blue, Black, White
Reinforcement Low, Medium, High
White balance ATW, AWC, Manual, Indoor, Outdoor
LDC Support
Electronic lock mode Minimum, Maximum, Anti-flicker
Speed range 2–1/12,000 second
Video shoot Rotate, mirror, corridor view (90°/270°) – Each channel separately
Alarm interface Entrance/Exit 4 configurable I/O ports
Alarm trigger Analytics, Disconnect network connection, Alarm input, App event, Schedule, MQTT subscription
Alarm events when an alarm trigger occurs File upload (image): Email/FTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing
Audio input 4 x Selectable (Microphone input/Line-In)
Audio output Line-Out

Analyses

Classified object type Person, face, vehicle, license plate
Attribute person Top/bottom dress color
vehicle Type (car, bus, truck, motorcycle, bicycle), color
Preview image BestShot
Analysis events Based on AI engine Object detection, virtual line (intersection/direction), virtual area (loitering/intrusion/entering/exiting/appearing/disappearing)
Normal Defocus detection, motion detection, tamper detection, audio detection, shock detection
Business Intelligence Based on AI engine People counting, queue management, heat map, vehicle counting

Network

Ethernet Metal shielded RJ-45 (10/100/1000 BASE-T)
Video compression H.265/H.264: Main/Baseline/High, MJPEG
Audio compression G.711 (PCM): 8 kHz (64 kbit/s), G.726 (ADPCM): 8 kHz (16/24/32/40 kbit/s), AAC-LC: 16 kHz (48 kbit/s)
Intelligent codec WiseStream (based on AI engine)
Bitrate control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast Up to 20 users
Multicast Support
Multi-streaming Up to 4 profiles
protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, SMTP (StartTLS)
Application Programming Interface ONVIF S, G, T, M
Other SUNAPI (HTTP API), Hanwha Vision Open Platform

Security

Operating system / firmware protection Encrypted firmware, Secure Boot, Signed firmware
User authentication Digest authentication
Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure communication HTTPS, WSS (WebSocket Secure), SRTP
Access control IP-based access control
Data protection Encryption credentials, encrypted compression for exporting live recording files
Audit Access/System/Event Log Management
Device ID Device certificate (Hanwha Vision Root CA)
Secure storage Encrypt SD card partition (AES-256), Secure Element
Security certificate Safe element (FIPS 140-3 Level 3, CC EAL6+), ETSI EN 303 645, IEC 62443-4-1

Generally

SoC Type NT98690
memory R.A.M. 8 GB
Flash 8 GB
Edge Storage Micro SD/SDHC/SDXC Max. 1 TB x 2 slots (2 TB total)

Environment & Electrics

Operating conditions temperature -10°C~+45°C(+14°F~+113°F)
humidity 0–95% relative humidity (non-condensing)
Storage conditions temperature -50°C~+60°C(-58°F~+140°F)
humidity 0–90% relative humidity (non-condensing)
Input voltage PoE+ (IEEE802.3at, Class 4), 12 VDC
electricity consumption PoE Max. 25.5W, typical 23.8W
12 VDC Max. 23.1W, typical 21.5W

Mechanically

Color Black
material plastic
Materials management Explanation RoHS (EU RoHS Directive 2011/65/EU and IEC/EN 63000:2018), REACH (Regulation (EC) No. 1907/2006), Conflict Minerals Directive (Section 1502 of the US Dodd-Frank Act)
RAL code RAL9005
Product dimensions 200(W)x37(H)x146(D)mm(7.87x1.46x5.75")
Product weight 1.015g (2.24lb)
