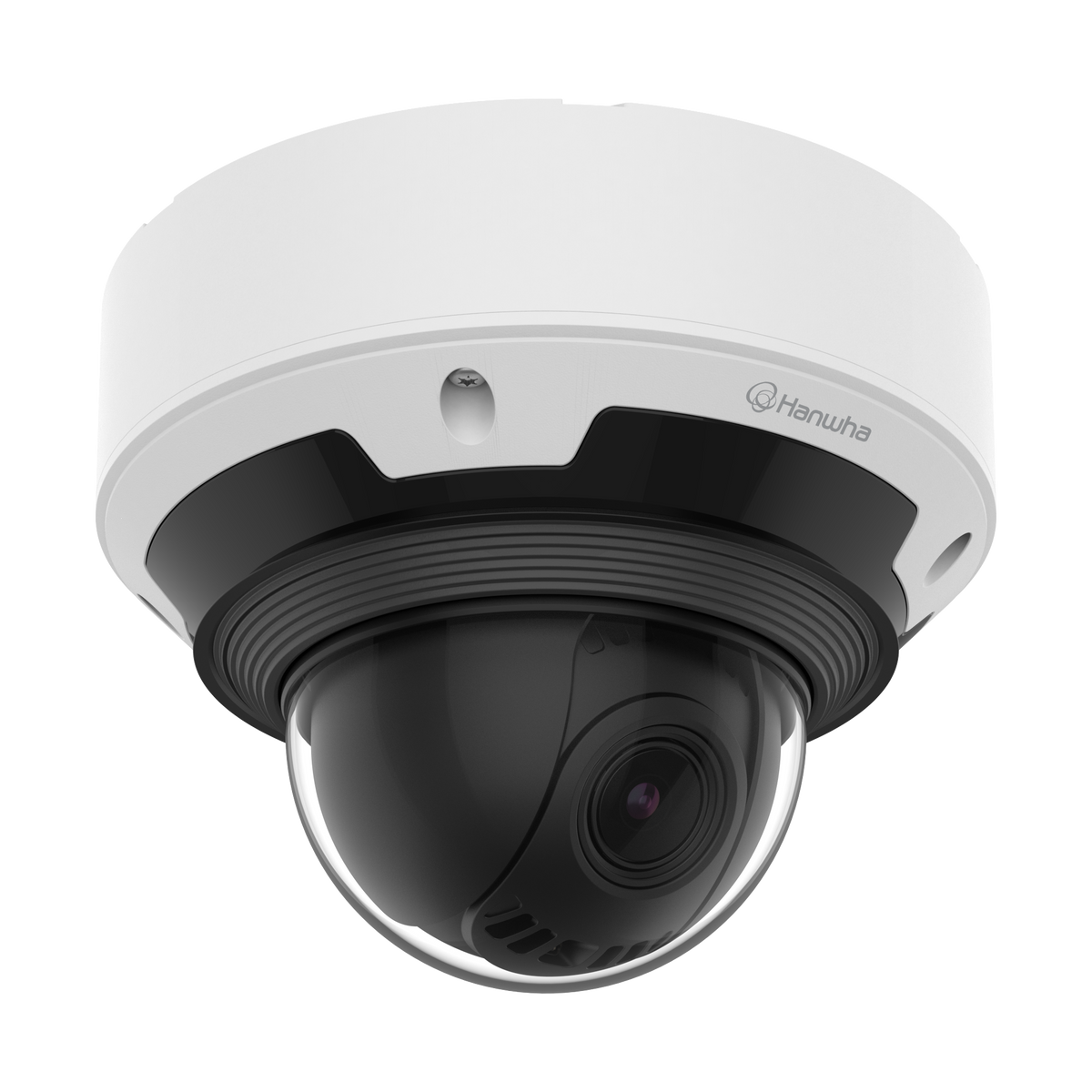

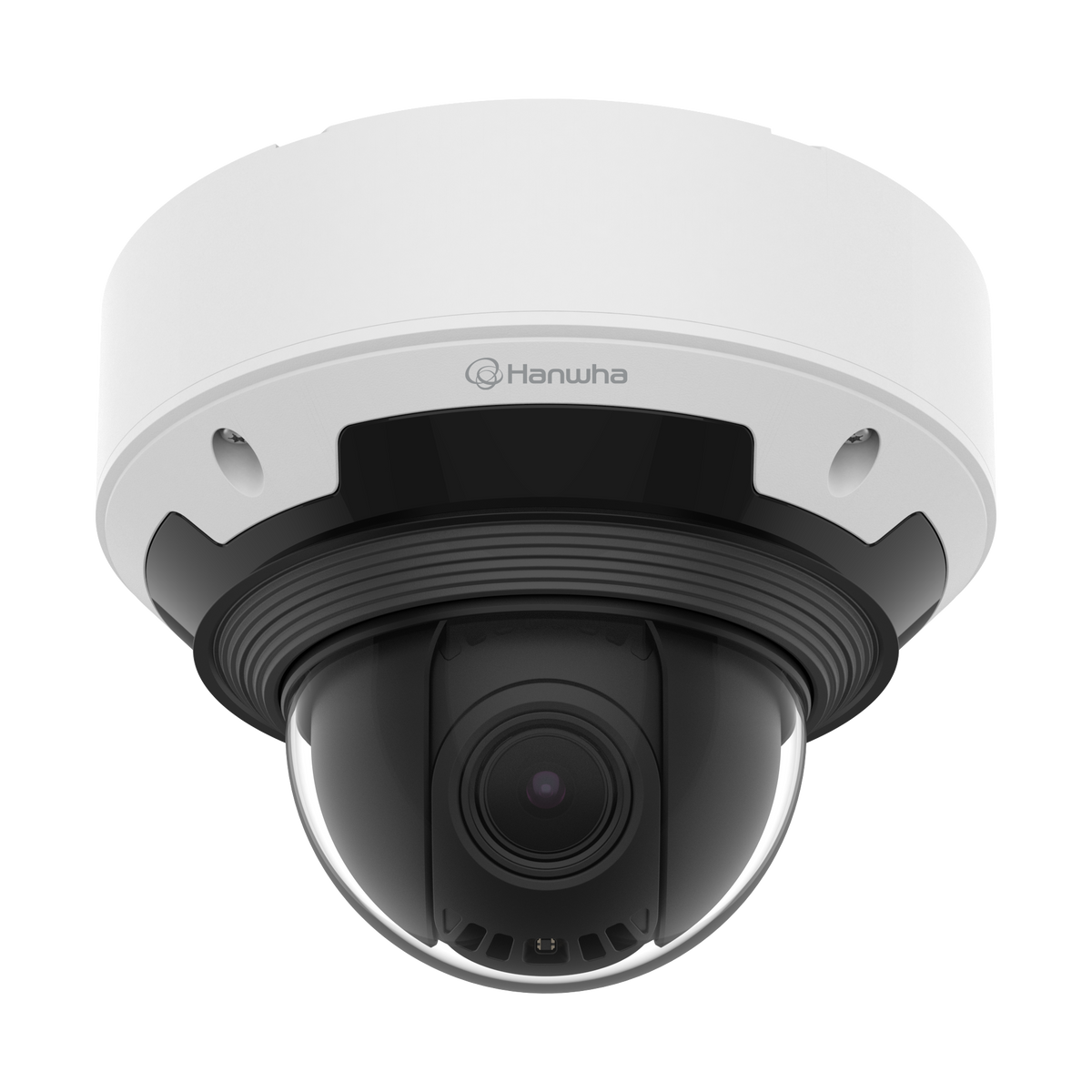

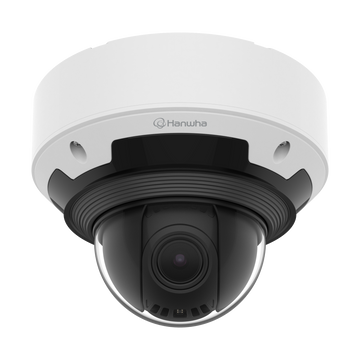

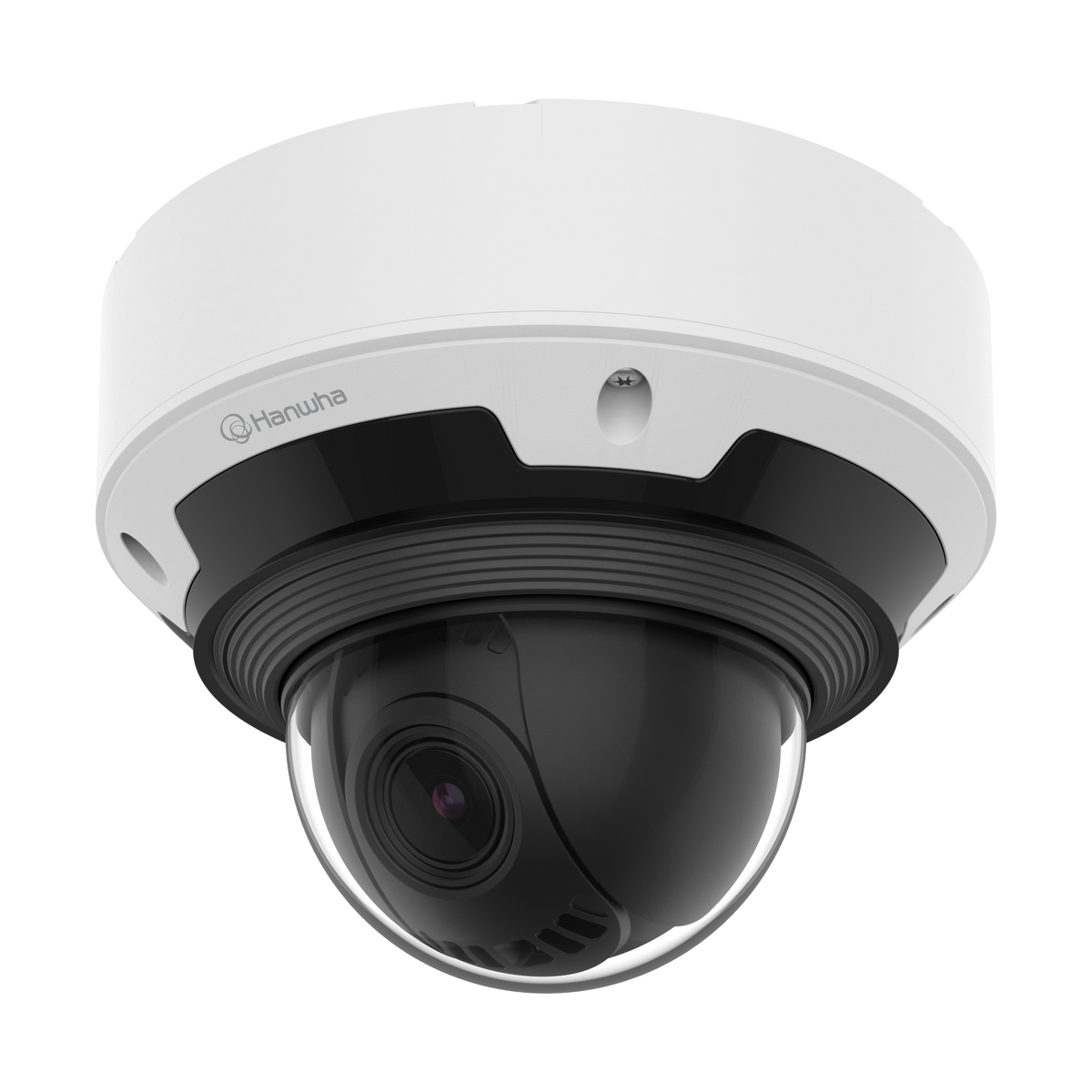

Hanwha Vision PNV-A7082RZ Wisenet 9 4MP outdoor Vandal IP PTRZ Camera

Regular price $2,200.00
Sale price $2,200.00 Regular price $0.00
Unit price
Hanwha Vision PNV-A7082RZ Wisenet 9 4MP outdoor Vandal IP PTRZ Camera

Hanwha Vision PNV-A7082RZ Wisenet 9 4MP outdoor Vandal IP PTRZ Camera

Regular price $2,200.00
Sale price $2,200.00 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision PNV-A7082RZ Wisenet 9 4MP outdoor Vandal IP PTRZ Camera

Key features

  • Maximum resolution of 4MP (1/1.8” sensor)
  • 4.6~9.35mm (2.0x) motorized varifocal lens
  • Long-range WiseIR range up to 30m (98.43ft)
  • Color: 0.03Lux (F1.3, 1/30sec, 30IRE)
  • SW: 0.003Lux (F1.3, 1/30sec, 30IRE)
  • PRTZ for easy installation
  • PTRZ preset support twice daily
  • Analysis events based on AI engine: Object recognition (person/face/vehicle/license plate), IVA (virtual line/area, enter/exit, linger, direction, intrusion), slip & fall detection, face mask detection, social distancing detection
  • Business intelligence based on an AI engine: People/vehicle/quantity counting, queue management, heatmap
  • BestShot support and full attributes
  • Support for dynamic privacy masking
  • AI-based image enhancement

video

Imaging device Size 1-1.8"
type CMOS
resolution 2592x1520, 2560x1440, 1920x1080, 1600x1200, 1280x960, 1280x720, 1024x768, 800x600, 640x480, 640x360, 320x240, 320x180
Max. frame rate H.265/H.264 60 fps/50 fps (60 Hz/50 Hz) (WDR off) / 30 fps/25 fps (60 Hz/50 Hz) (WDR on)
MJPEG 30 fps (at 4 MP Max. 5 fps)
Minimum illumination (lux) Color (1/30 second, 30 IRE) 0.03
B/W (1/30 second, 30 IRE) 0.003

lens

Focal length (mm) 4.6~9.35
Zoom ratio Visually 2.0x
Maximum aperture ratio (F-number) Far 1.3
Tele 2.15
Angle of view Horizontal 105°~47°
Vertical 58°~27°
Diagonal 128°~55°
Minimum object distance 1.5m (4.92ft)
Focus control Simple focus
Lens type P-aperture (IR-corrected)

Pan / Tilt / Rotate

Swivel / tilt / rotation range Sway 0°~350°
Tend 0°~85°
Turn -95°~95°
Other Remote setting (max. 3,650 cycles)

Surgical

Day & Night Auto (ICR)
Backlight compensation BLC, HLC, WDR, SSDR
Wide dynamic range (dB) 120
Digital noise reduction WiseNR II (based on AI engine), SSNR V
Digital image stabilization Support
Defogging Support
Motion detection Crowd 8EA
form 8-point polygon zones
Privacy masking Crowd 32ea
form 8-point polygon zones
Color / Option Grey, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Dynamic privacy masking: Color / Option Grey, Green, Red, Blue, Black, White, Mosaic, Purple, Yellow
Reinforcement Off, Max. Reinforcement, Manual.
White balance ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC Support (fill/stretch mode)
Electronic lock mode Minimum, Maximum, Anti-Flicker, Prefer Shutter Control (based on AI engine)
Speed ​​range 2–1/30,000 second
Video shoot Rotate, mirror, corridor view (90°/270°)
Alarm interface Other Supports additional alarm I/O via optional I/O box
Alarm trigger Analysis, network disconnection, alarm input, schedule, MQTT subscription, chassis tampering, day/night, memory interruption
Alarm events when an alarm trigger occurs File upload (image): Email/FTP/SFTP, File upload (video clip): FTP/SFTP, Notification: Email, Recording: SD/SDHC/SDXC or NAS recording upon event triggers, Alarm output, Transfer: PTZ preset, Send message via HTTP/HTTPS/TCP, Audio clip playback, MQTT: Publishing
Light type IR LED
Light visible length IR WiseIR 30m (98.43ft)
IR wavelength 850 nm

Analyses

Classified object type Person, face, vehicle, license plate
Attribute person Top/bottom dress color, gender, bag
vehicle Type (car, bus, truck, motorcycle, bicycle), color
Face Age, gender, face mask, glasses
Similarity Search Support
Preview image BestShot
Analysis events Based on AI engine Object detection, virtual line (intersection/direction), motion detection, face mask detection, distance detection, slip and fall detection, virtual area (loitering/intrusion/entering/exiting/appearing/disappearing)
Normal Defocus detection, manipulation, audio detection, shock detection
Business Intelligence Based on AI engine People counting, queue management, heat map, vehicle counting, mass counting

Network

Ethernet Metal shielded RJ-45 (10/100/1000 BASE-T)
Video compression H.265/H.264: Main/Baseline/High, MJPEG
Intelligent codec WiseStream (based on AI engine)
Bitrate control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast Up to 20 users
Multicast Support
Multi-streaming Up to 5 profiles, support for 3 virtual channels
protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMP v1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT, Syslog
Application Programming Interface ONVIF S, G, T, M
Other SUNAPI (HTTP API), Hanwha Vision Open Platform
Direct cloud connection bracket

Security

Operating system / firmware protection Encrypted firmware, Secure Boot, Signed firmware
User authentication Digest authentication, preventing brute-force attacks
Network authentication IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure communication HTTPS, WSS (WebSocket Secure), SRTP
Access control IP-based access control, MAC-based access control, automatic logout
Data protection Encryption credentials, encrypted compression for exporting live recording files
Audit Access/System/Event Log Management
Device ID Device certificate (Hanwha Vision Root CA)
Secure storage Encrypt SD card partition (AES-256), Secure Element
Supply chain security SBOM
Security certificate Safe element (FIPS 140-3 Level 3, CC EAL6+), ETSI EN 303 645

Generally

SoC Type Wisenet 9
Dual NPU Support
memory R.A.M. 4 GB
Flash 8 GB eMMC
Edge Storage Micro SD/SDHC/SDXC Max. 1 TB x 2 slots (2 TB total)
Edge Storage (OnCloud) Micro SD/SDHC/SDXC Max. 1 TB x 2 slots (2 TB total) *Hanwha Vision brand microSD cards have been certified and recommended for OnCloud Edge recording.

Environment & Electrics

Operating conditions temperature -50°C~+55°C(-58°F~+131°F)
humidity 0–100% relative humidity (condensing)
Other +74 °C (+165 °F) (Max.) based on NEMA-TS 2 (2.2.7), Commissioning should take place at temperatures above -30 °C, Humidity control with ventilation valve
Storage conditions temperature -50°C~+60°C(-58°F~+140°F)
humidity 0–90% relative humidity (non-condensing)
EPA (Effective Projected Area) 0.017
Input voltage PoE+ (IEEE802.3at, Class 4)
electricity consumption PoE Max. 15.0W, typical 9.0W
Wisepower Power monitoring

Mechanically

Color White
material Aluminum, hard-coated dome
RAL code RAL9003
Product dimensions ø180x135mm(ø7.09x5.31")
Product weight 2,100g (4.63lb)
Compatible conduit drilling 19.1 mm (3/4") (M25)
Compatible gear box Singles, Doubles, 4" Octagon, Square
