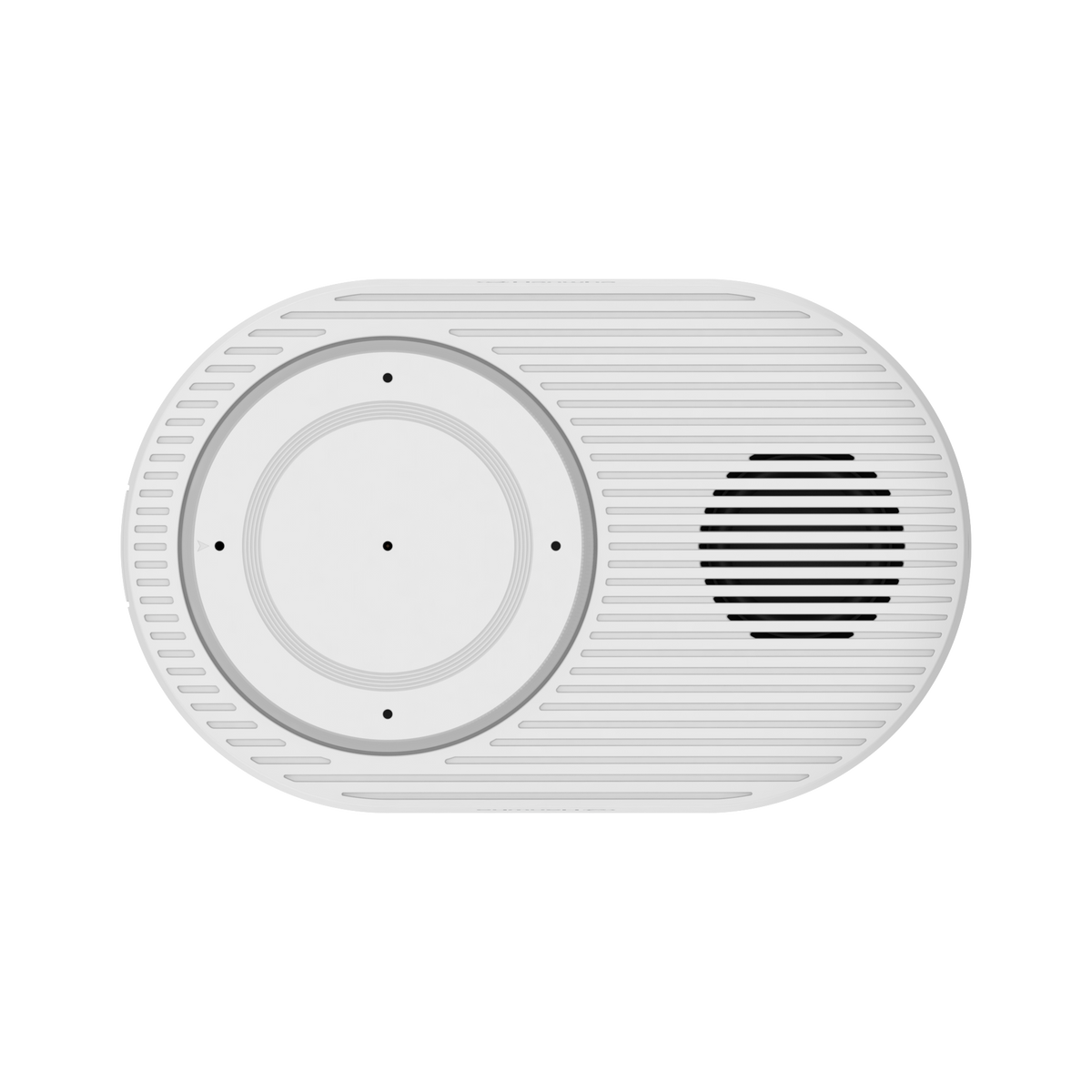

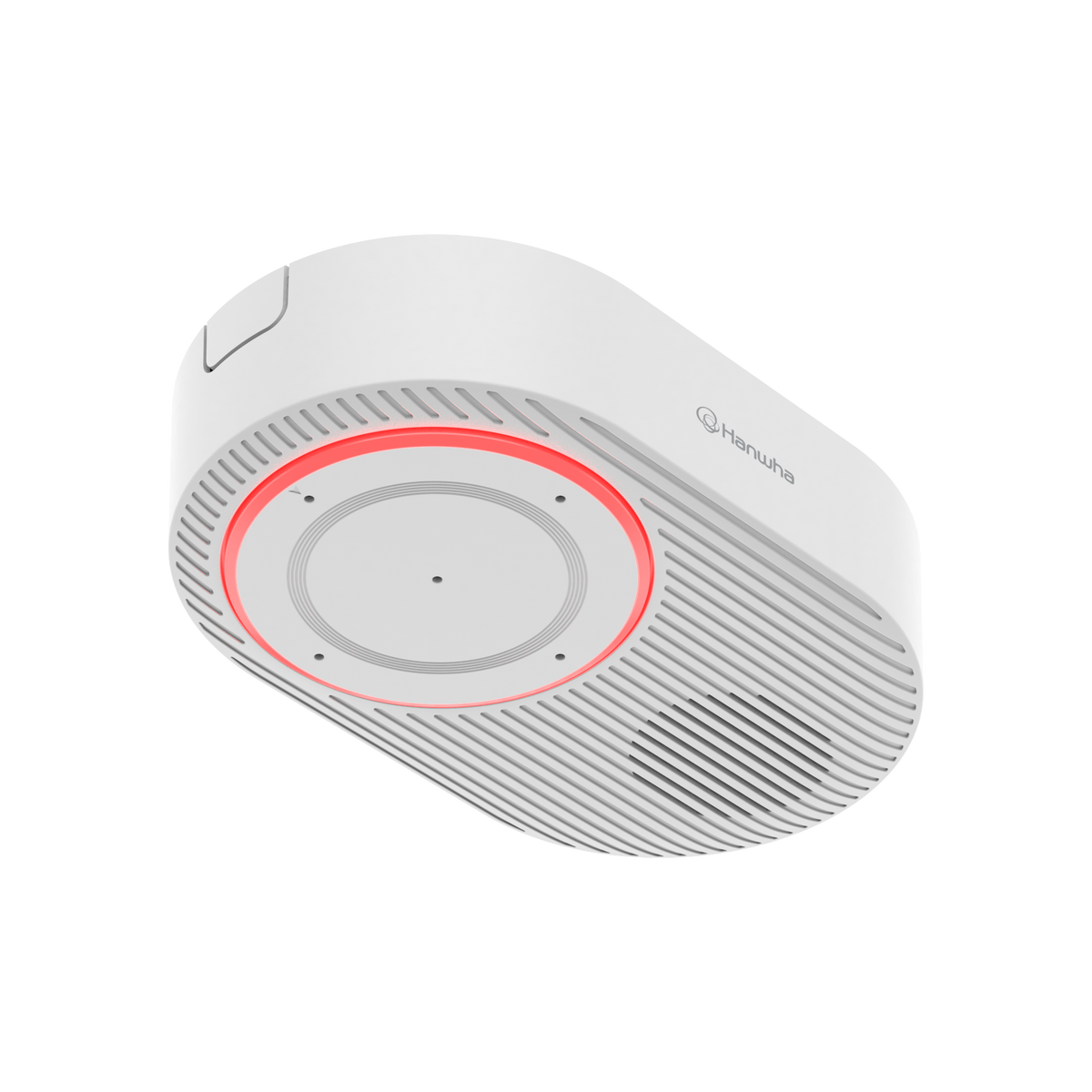

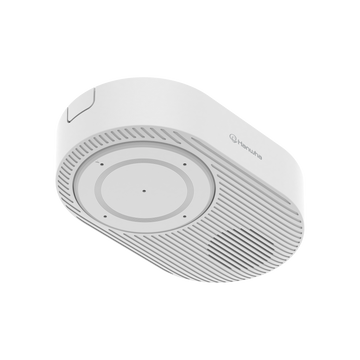

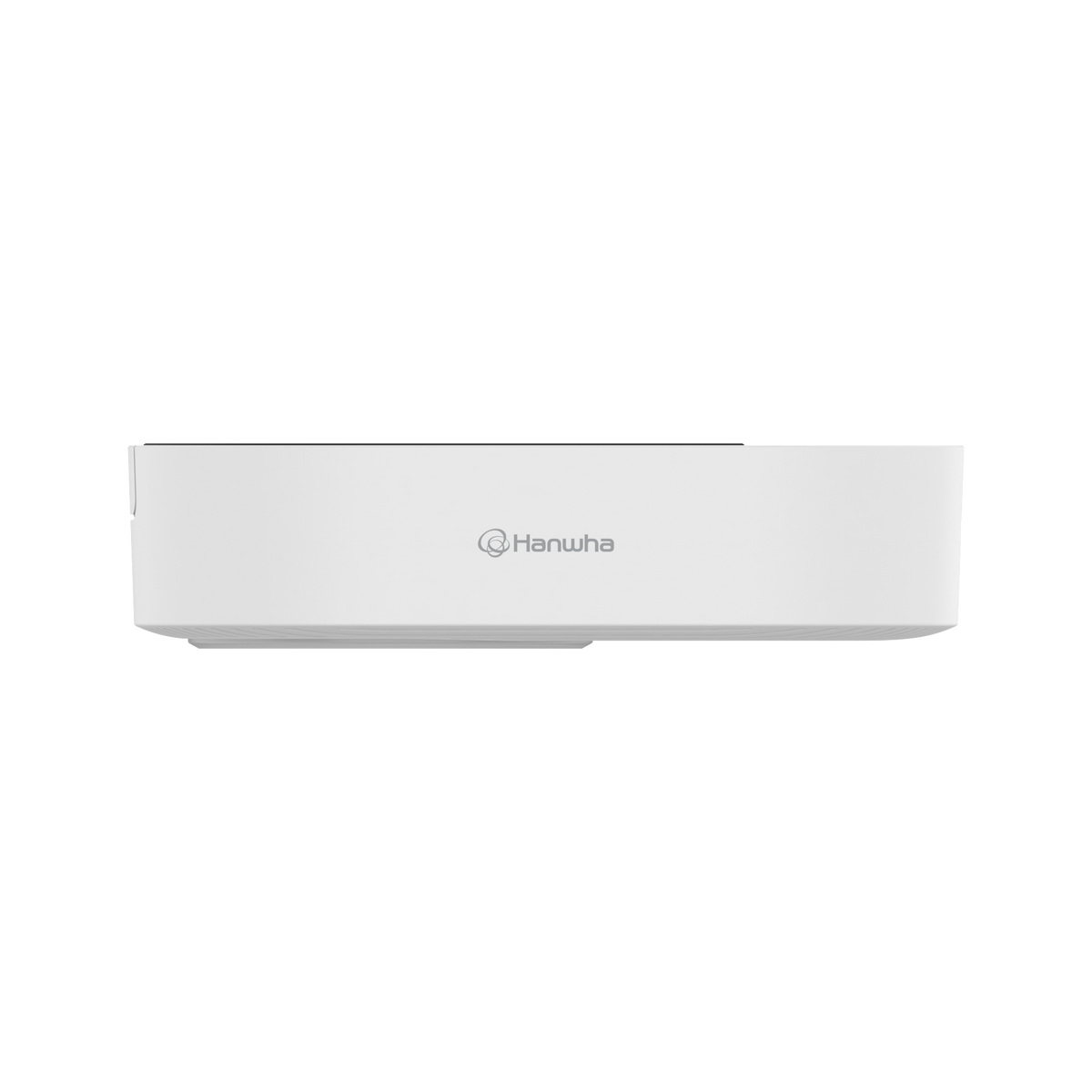

Hanwha Vision SPS-A100M IP Speaker / Microphone / LED Combo

Key features

  • Audio-Beacon – Loudspeaker with a maximum sound pressure level of 90 dB at 1 m (3.28 ft)
  • Frequency range: 144 Hz to 20 kHz
  • 5 digital microphones with selectable two-way/one-way function
  • Full-duplex communication with echo cancellation and noise reduction.
  • Noise classification: breaking glass, screams, extremely loud noises
  • Event metadata: noise direction, reliability, audio clip, dB level
  • LED ring (green, blue, red, pink, sky blue, violet)
  • Setting for measures before and after the duration
  • USB-C for installation app
  • 2 configurable digital inputs/outputs
  • PoE+
  • ONVIF profile S
  • SUNAPI (HTTP API)
  • Open platform Wisenet
  • AI noise classification package included
  • Security element compliant with FIPS 140-3 Level 3
  • Suitable for indoor use

video

resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. frame rate H.265/H.264 10fps
MJPEG 5fps
Others Static image video
Video Out USB: Micro USB Type C, setting true north point using Wisenet installation

Operational

Alarm Interface 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event(Sound classification), Time schedule, MQTT subscription, Case tampering
Audio Streaming Two-way/one-way selectable, full duplex, echo cancellation, noise reduction
Alarm Events When Alarm Trigger Occurred File upload(audio): e-mail/FTP, Notification: e-mail, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback(6MB, WAV), MQTT: publication, LED, Speaker
Audio In Built-in MEMS 5mics
Audio Out Built-in speaker, Max. Sound Pressure Level 90dB at 1m(3.28ft), Frequency Range: 144Hz~20kHz
Light Type LED Ring(Green, Blue, Red, Pink, Sky blue, Purple), for event action

Analytics

Analytics Events Based on AI Engine Sound classification
Classified Sound Type Crashing glass, screaming, vehicle horn, tire screech
Event Metadata Sound type, Sound direction, Confidence, Timestamp, Best sound(audio file), dB(±10dB)
Sound Direction Ceiling mounting: ±15 degrees

Network

Ethernet RJ-45(10/100 BASE-T)
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 16kHz(48kbps)
Streaming Unicast Up to 6 users
Multicast Support
Multiple streaming Up to 6 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT, SIP 2.0(RFC 3261 and companion RFCs)
Application programming interface ONVIF S
Others SUNAPI(HTTP API), Hanwha Vision Open Platform, AI Sound Classification pack included

Security

OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication SRTP, HTTPS, WSS (WebSocket Secure)
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage Secure element
Security Certificate Secure element(FIPS 140-3 level3, CC EAL6+)

General

Memory R.A.M. 4GB
Flash 512MB

Environmental & Electrical

Operating Condition Temperature -20°C~+55°C (-4°F~+122°F)
Humidity 0~90% RH (non-condensing)
Storage Condition Temperature -50°C~+60°C (-58°F~+140°F)
Humidity 0~90% RH (non-condensing)
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption PoE Max 18.5W, typical 8.2W

Mechanical

Color White
material Plastic, Aluminum
RAL Code RAL9003
Product Dimensions 215.1(W)x135.1(D)x52.8(H)mm(8.47"x5.32"x2.08")
Product Weight 973g (2.15 lb)
Compatible Conduit Hole Support conduit compatibility via optional adapter
Compatible Gang Box Single, Double, 4" Octagon, Square
