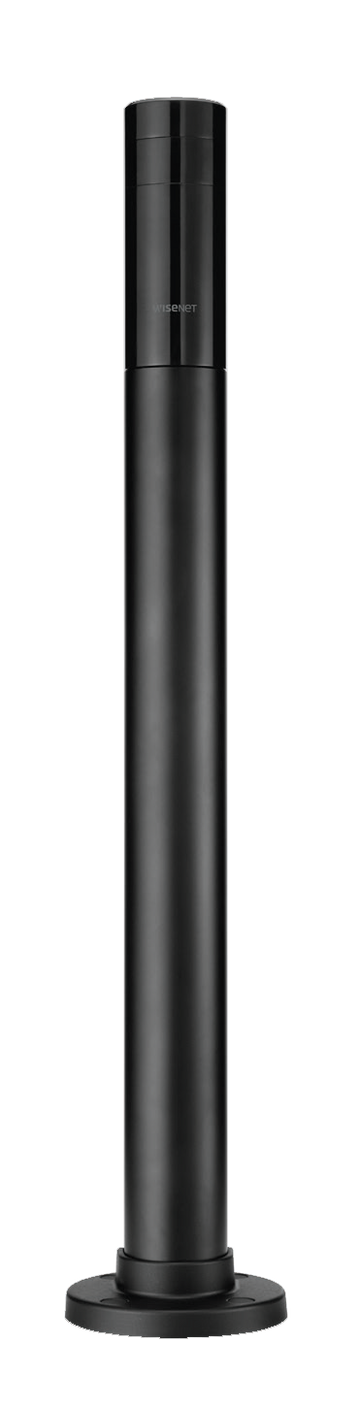

Hanwha Vision XNB-H6282B Wisenet 7 2MP Network Bandit Barrier Camera Kit

Regular price $1,375.00
Sale price $1,375.00 Regular price
Unit price
Hanwha Vision XNB-H6282B Wisenet 7 2MP Network Bandit Barrier Camera Kit

Hanwha Vision XNB-H6282B Wisenet 7 2MP Network Bandit Barrier Camera Kit

Regular price $1,375.00
Sale price $1,375.00 Regular price
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision XNB-H6282B Wisenet 7 2MP Network Bandit Barrier Camera Kit

Key Features

  • 2 Megapixel (1920 x 1080) resolution
  • 2.8mm wide-angle lens (107.4°)
  • H.265, H.264, MJPEG codec support, Multiple streaming
  • 60fps@2MP (H.265 / H.264)
  • WDR (120dB)
  • Built-in Analytics
  • SD / SDHC / SDXC memory slot (Maximum 256GB)
  • Hallway View, WiseStream II support
  • LDC, PoE / 12V DC, Bi-directional audio support
  • Adjustable height and installation options for various installation types

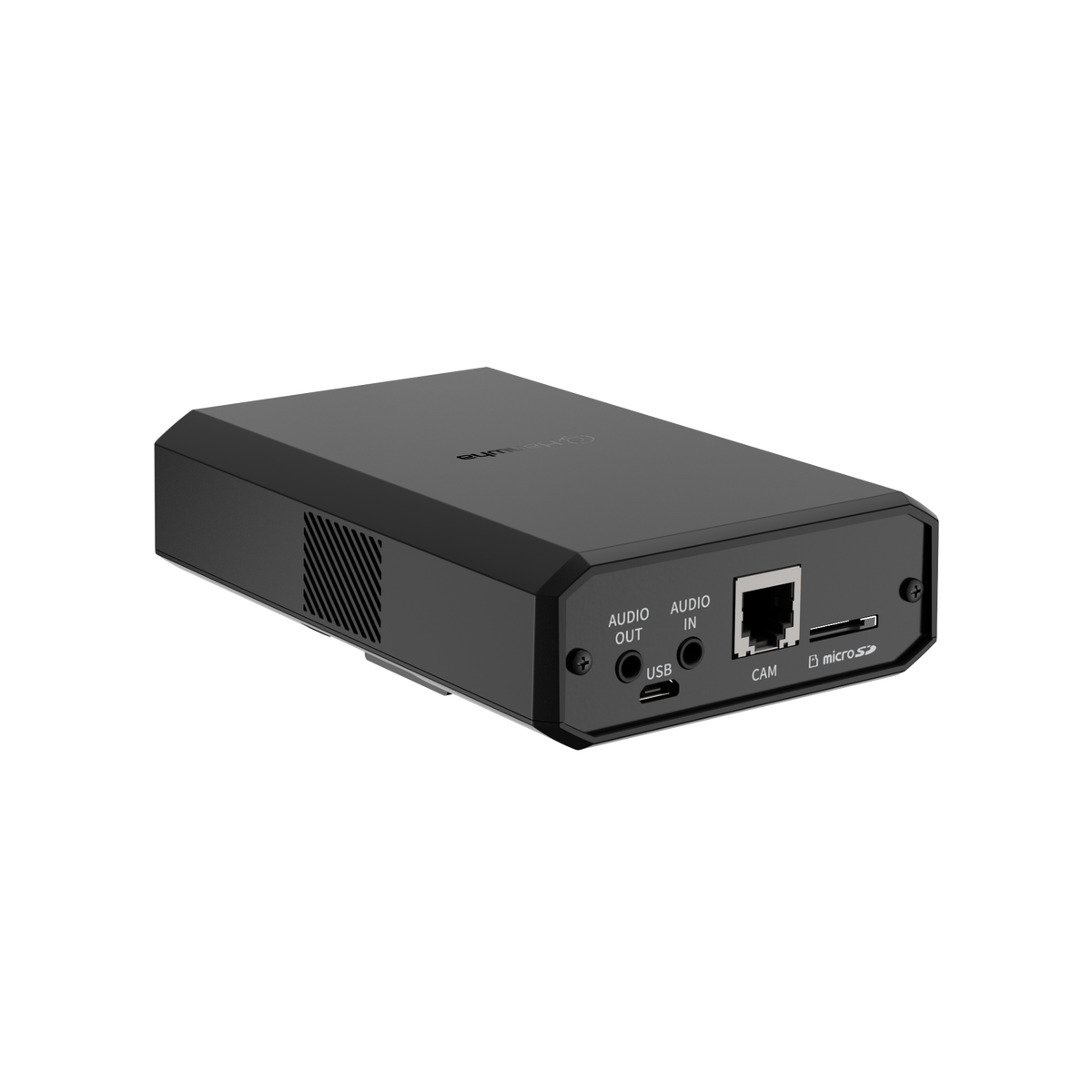

  • Includes XNB-6002 main unit & SLA-T2880BA lens with 8m cable


Video

Imaging Device Size 1/2.8"
Type CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264 60fps/50fps(60Hz/50Hz)
MJPEG 30fps
Video Out CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.

Lens

Focal Length (mm) 2.8
Angular Field of View Horizontal 107.4°
Vertical 60.4°
Focus Control Fixed
Lens Type Fixed iris
Optional Lens SLA-T1080FA, SLA-T2480A, SLA-T2480VA, SLA-T4680A, SLA-T4680VA

Operational

Day & Night Auto(Electrical)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range (dB) 120
Digital Noise Reduction WiseNR, SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection Quantity 8ea
Shape 8point Polygonal zones
Privacy Masking Quantity 32ea
Shape 4point Quadrangle zones
Color / Option Gray, Green, Red, Blue, Black, White, Mosaic
Gain Control Off, Max gain, Manual
White Balance ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
LDC Support(Not support for fisheye lens)
Electronic Shutter Mode Minimum, Maximum, Anti flicker, Prefer shutter control
Speed Range 2~1/12,000sec
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Alarm Interface In/Out Input 1ea, Output 1ea
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When Alarm Trigger Occurred File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback
Audio In Selectable(mic in/line in)
Audio Out Line out

Analytics

Analytics Events Normal Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)
Business Intelligence Normal People counting, Queue management, Heatmap

Network

Ethernet RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec Manual, WiseStreamⅡ
Bitrate Control H.265/H.264: CBR or VBR, MJPEG: VBR
Streaming Unicast Up to 20 users
Multicast Support
Multiple Streaming Up to 10 profiles
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
Application Programming Interface ONVIF S, G, T
Others SUNAPI(HTTP API), Hanwha Vision Open Platform
Direct Cloud Connection Support

Security

OS / Firmware Protect Encrypted firmware, Secure boot, Signed firmware
User authentication Digest authentication, Prevent brute-force attack
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
Security Certificate TPM 2.0 with FIPS 140-2 level2

General

Memory RAM 2GB
Flash 512MB
Edge Storage Micro SD/SDHC/SDXC Max. 1TB x 1slot

Environmental & Electrical

Operating Condition Temperature -10°C~+55°C(+14°F~+131°F)
Humidity 0~90% RH(non-condensing)
Storage Condition Temperature -30°C~+60°C(-22°F~+140°F)
Humidity 0~90% RH(non-condensing)
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE Max. 10.5W, typical 6.9W
12VDC Max. 8.6W, typical 5.5W
Power Redundance Failover Support

Mechanical

Color Black
Material Metal, Plastic
RAL Code RAL9005
Product Dimensions 131.1x28x86mm(5.16"x1.10"x3.39")
Product Weight 420g(0.93lb)
