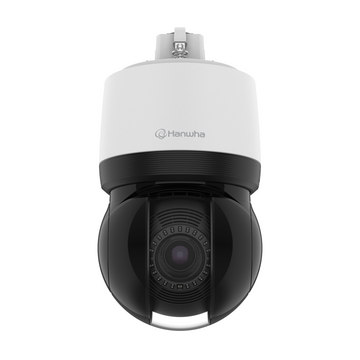

Hanwha Vision XNP-C6403R

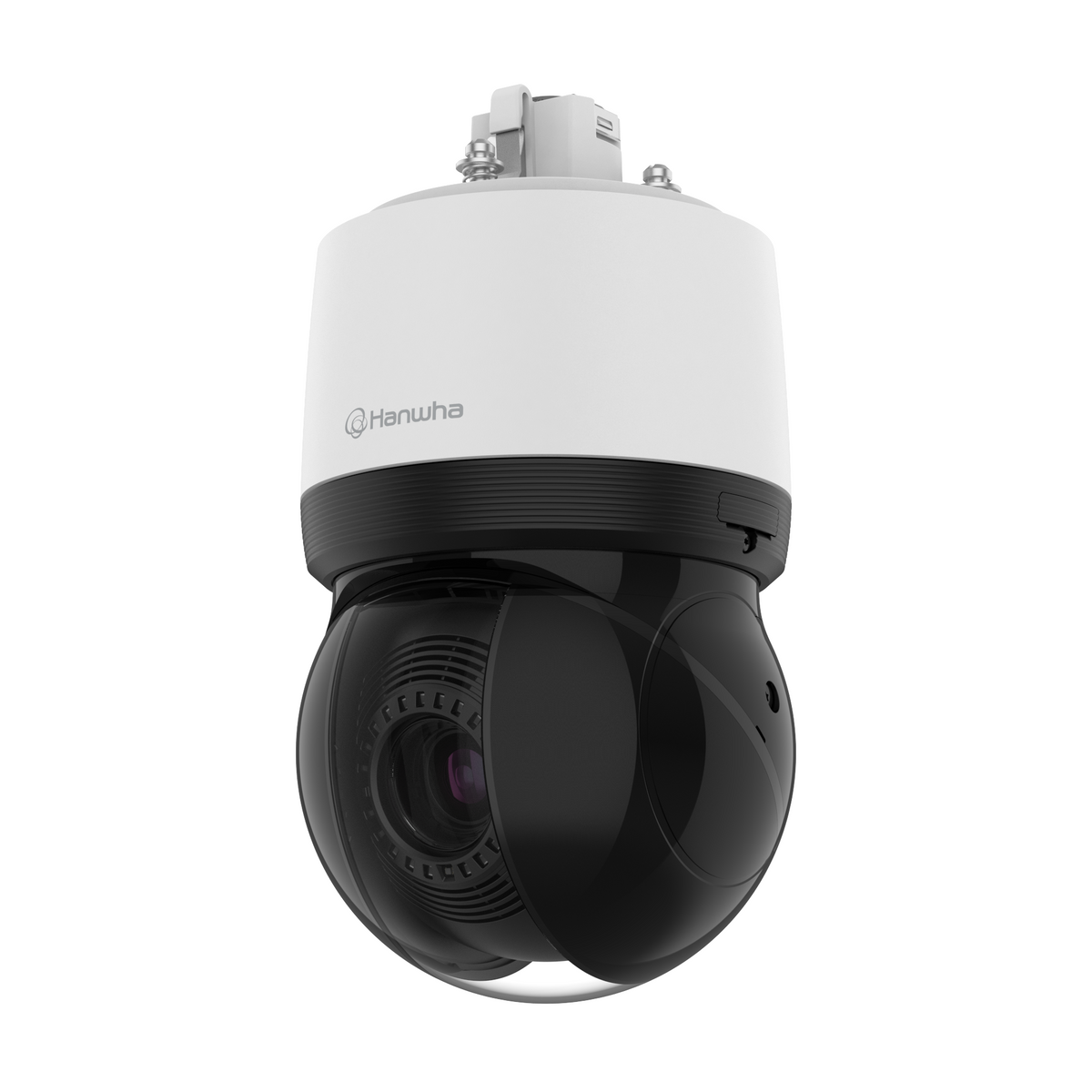

Hanwha Vision XNP-C6403R security camera product photo, additional view 2
Hanwha Vision XNP-C6403R security camera product photo, additional view 3

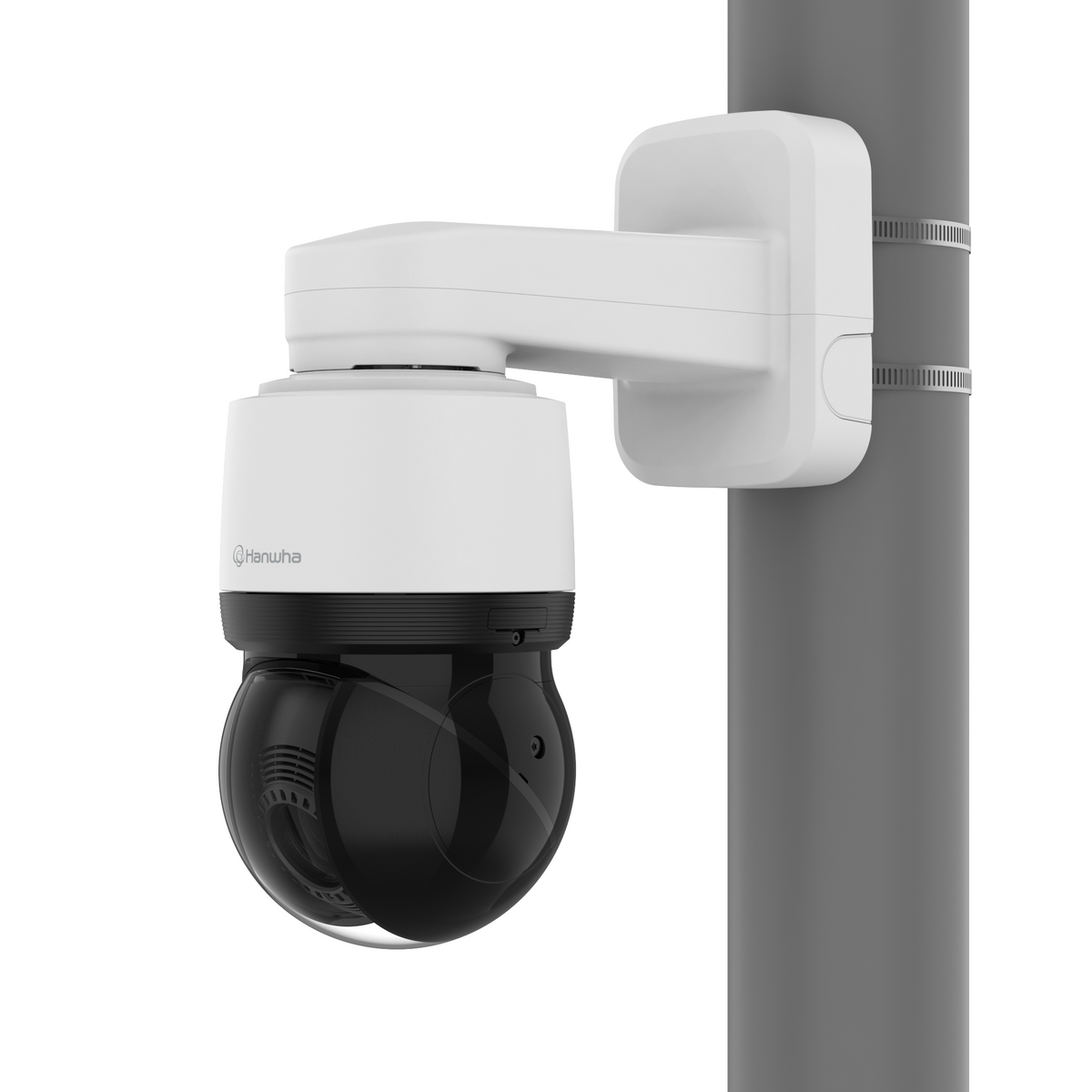

Hanwha Vision XNP-C6403R security camera product photo, additional view 4

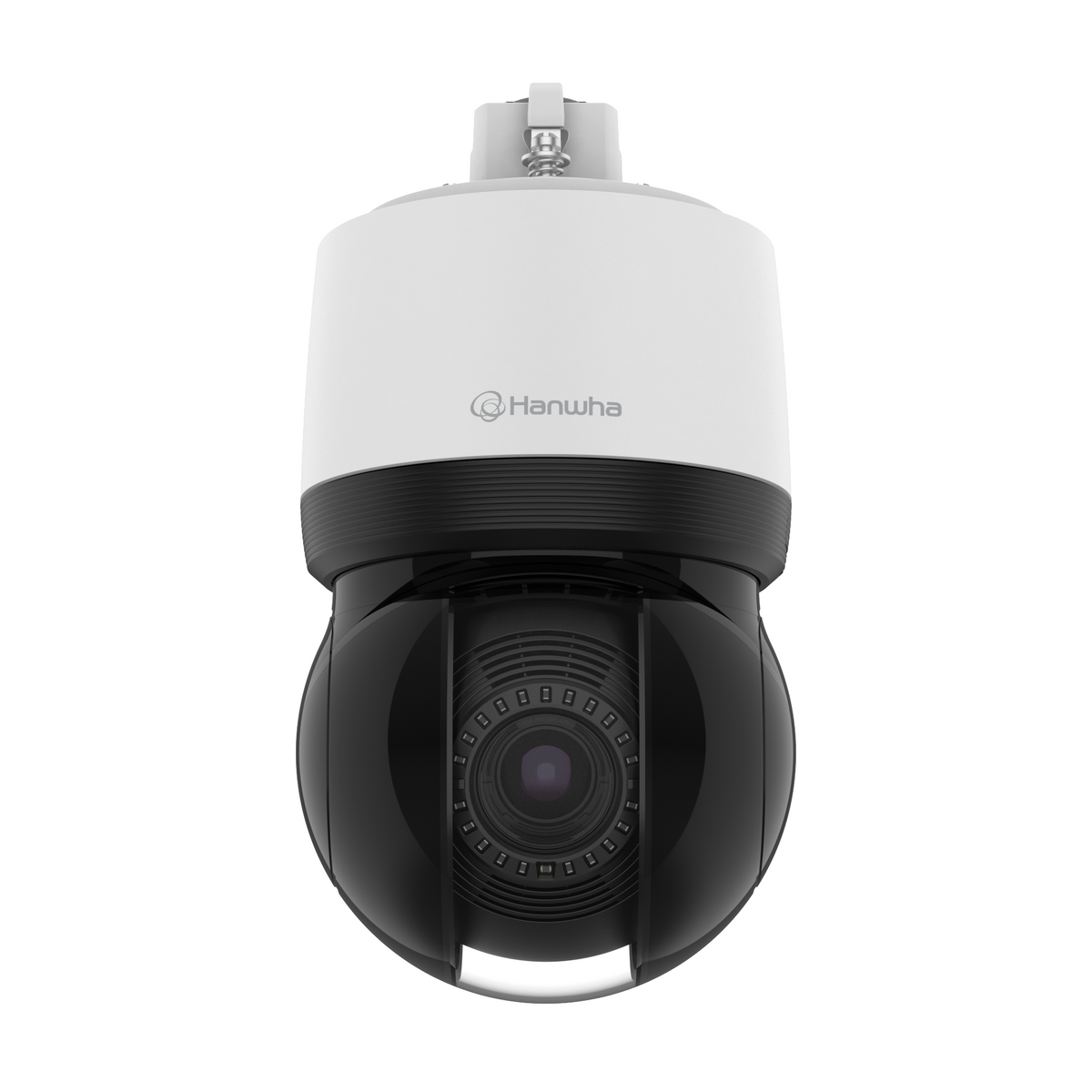

Hanwha Vision XNP-C6403R
Hanwha Vision XNP-C6403R security camera product photo, additional view 2
Hanwha Vision XNP-C6403R security camera product photo, additional view 3
Hanwha Vision XNP-C6403R security camera product photo, additional view 4

Hanwha Vision XNP-C6403R 2MP AI IR IP PTZ Security Camera 4.25mm~170mm Lens

Regular price $4,100.00
Sale price $4,100.00 Regular price
Unit price
Hanwha Vision XNP-C6403R

Hanwha Vision XNP-C6403R 2MP AI IR IP PTZ Security Camera 4.25mm~170mm Lens

Regular price $4,100.00
Sale price $4,100.00 Regular price
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

Hanwha Vision XNP-C6403R 2MP AI IR IP PTZ Security Camera� 4.25mm~170mm Lens

XNP-C6403R

2MP, 40x, AI IR PTZ camera

Powered by the Wisenet 7 chipset, the PTZ PLUS AI camera provides AI-based object detection and auto tracking (Person/Vehicle) with Target lock tracking.

  • 2MP resolution
  • 40X optical zoom
  • IR viewable length : 200m (656ft)
  • 40x optical zoom lens (4.25mm~170mm)
  • -20� tilt look-up capability to see above the horizon
  • Lens heater & spin dry for water/snow removal
  • 360� endless pan
  • Triple codec H.265/H.264/MJPEG
  • WiseStream III technology
  • extreme WDR
  • Azimuth display (Cardinal & intermediate directions)
  • AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
  • Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track
Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
NETD None
Pixel Size None
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)
Video Out None
Video Transmission Distance None
Lens
Focal Length (Zoom Ratio) 4.25~170mm(40x) zoom (digital 32x, total 1280x zoom)
Optical Zoom 40x
Max. Aperture Ratio F1.6(Wide)~F4.95(Tele)
Angular Field of View H: 65.66�(Wide)~1.88�(Tele) / V: 39.4�(Wide)~1.09�(Tele)
Min. Object Distance 5m(16.4ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Mount Type None
Optional Lens None
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range None
Pan Range 360� Endless
Pan Speed Max. 700�/sec, Manual: 0.024�/sec~250�/sec
Tilt Range 110�(90�~-20�)
Tilt Speed Max. 500�/sec, Manual: 0.024�/sec~250�/sec
Rotate Range None
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy Up to �0.1�, Pan/Tilt correction
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range Extreme WDR(150dB)
Digital Noise Reduction WiseNR?(Based on AI engine), SSNR?
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic
Gain Control Off / Max gain / Manual
White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodiu
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine)
Video Rotation
Analytics Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Tampering, Fog detection, Shock detection, Virtual area(Appear/Disappear) * Audio detection, Sound classification(Via optional I/O box SPM-4210)
Alarm Triggers
Alarm Events When alarm trigger occurred - File upload(image) : e-mail/FTP/SFTP - FIle upload(video clip): FTP/SFTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication * Alarm output / Audio clip playback(Via optional I/O box SPM-4210)
ight Type
IR Viewable Length Wise IR 200m(656.17ft)

Water Removal Support(Spin dry, Lens heater)
Auto Tracking Support Object auto tracking(Person/Vehicle) Target lock tracking
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression None
Smart Codec Manual(5ea area), WiseStream?, WiseStream?(Based on AI Engine)
Video Quality Adjustment H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
SIP support (VoIP, Peer-to-peer, SIP/PBX integration) None
Security None
Application Programming Interface ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authentication, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer None
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB (512GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40�C~+50�C(-40�F ~ +122�F) / +74�C(+165�F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30�C 0~100%RH(Condensing) Humidity control with AIR vent
Storage Temperature / Humidity -50�C ~ +60�C(-58�F ~ +140�F) / 0~90% RH
Wind Load 241km/h(150mph) EPA(Effective Projected Area) : 0.035?
Certification IP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
Input Voltage PoE++(IEEE802.3bt, Class6, Type3, Injector included)
Power Consumption Typical 24W, Max 40W
Mechanical
Color / Material Body : White / Aluminum Head : Black / Polycarbontate Hard-coated dome
RAL Code White: RAL9003 / Black: RAL9005
Product Dimensions / Weight �158x293.3mm(6.22x11.55") / 3200g(7.05lb)
