Reolink 12MP HD PoE Person Detection Security System with Color Night Vision

Regular price $1,299.00
Sale price $1,299.00 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    RLK16-1200D8-A
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 12MP HD PoE Person Detection Security System with Color Night Vision - Secure IT Global

Reolink 12MP HD PoE Person Detection Security System with Color Night Vision

Regular price $1,299.00
Sale price $1,299.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

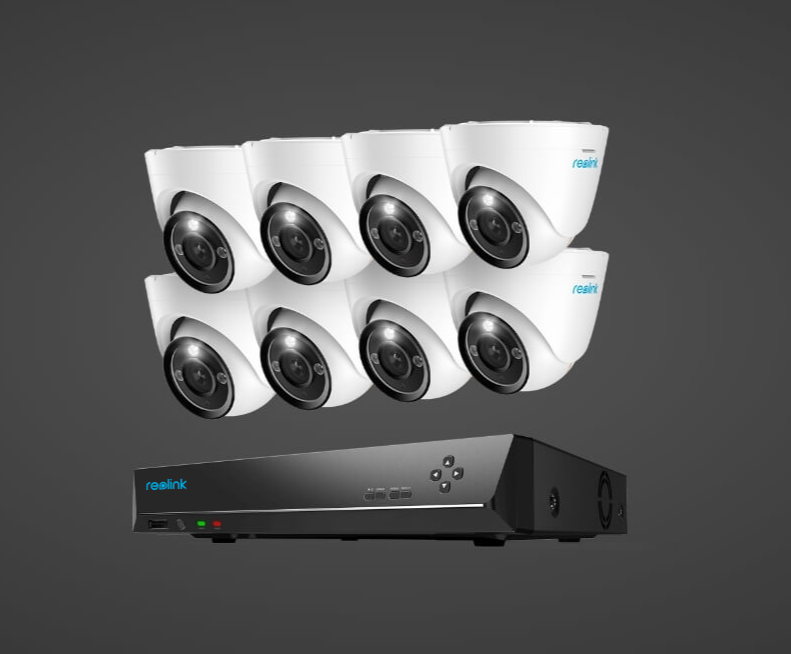

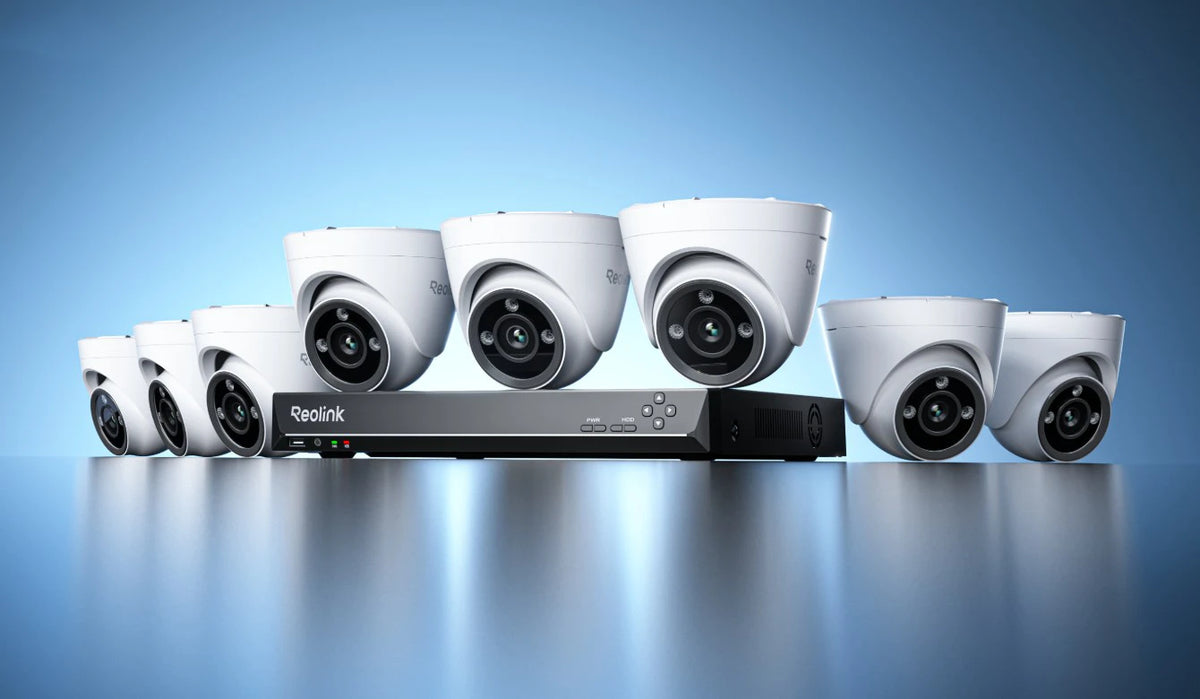

12MP PoE Security System with Color Night Vision

12MP Ultra HD

Person/Vehicle Detection

Power over Ethernet

16-Channel NVR



                                      Find Beauty in the Details with 12MP

Enjoy the breathtaking details and hues with 12MP ultra-high resolution and F1.6 large aperture lens. Even the tiniest subjects such as raindrops and rose petals look extraordinary.



                                     Precise Detection, Premium Protection

Featuring person/vehicle detecting technology, RLK16-1200D8-A will let you know whether a person or a vehicle is on your property and send you accurate alerts. Also, it can help you keep an eye on your pets. You don’t have to waste time checking all alarms to find the important ones.



                                     Night Vision with Ultra Clarity & Color

Each camera of this surveillance kit is equipped with a powerful spotlight that keeps on at night, making night scenes as vivid as day. You can see more details in full color without worrying about poor lights.



                                                        Easy PoE Setup

No power cable or adapter is needed. RLK16-1200D8-A with Power over Ethernet (PoE) technology needs only one single network cable for each camera. Less wiring, less cost, more convenience.



                                             Continuous 24/7 Recording

With a 4TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day videos without missing a beat.



                                          Work with Various Reolink IP Cameras

This security camera system can be expanded up to 16-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 8MP, 5MP or 4MP – to cover every corner in your home, store or factory.



                                                         Easy Management

You can get remote access to your cameras and control them via free Reolink APP and Client, besides NVR. Just a touch away, manage your home, store or factory easily.



                                                                                          Motion Alerts

Once something suspicious is detected, the cameras will inform you by sending to your device an instant push notification or email. Know what's happening all the time.

                                                                                    Multi-Cam Live Feed

See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

                                                                                        Smart Playback

You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

                                                                                      Record Scheduling

You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.



                                                                                        Motion Zone

You can customize the motion zone to your liking, deciding where objects’ movements will be detected and where they will not.





 D1200(4.0mm)

Note:

The cameras of the kit cannot work without the NVR.

Video & Audio

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 4512X2512 (12 Megapixels) at 20 frames/sec

Lens

f=4.0mm; F=1.6, with IR-cut filter

Video Format

H.265

Field of View

• Horizontal: 93°

• Vertical: 49°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

30 meters (LED: 2pcs/28mil/850nm)

Color Night Vision

Spotlight: 1pcs/4.3W/6500K/700 Lumens

Audio

Two-way audio (via Reolink App/Client)

Power

PoE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Audio

Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 2fps - 20fps (default: 20fps)

• Substream: 4fps - 20fps (default: 10fps)

Code Rate

• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)

• Substream: 128Kbps - 1024Kbps (default: 768Kbps)

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Working Environment

Temperature

Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP67

Size & Weight

Hardware

Hardware

V2

Video/Audio Input

IP Video Input

PoE IP camera x 16

Audio Input

Cameras with built-in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768

• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768

Audio output

1-channel, RCA

Decoding

Live View/Playback Resolution

4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Video Format

H.265, H.264

Synchronous Playback

Up to 4 channels

HDD

SATA

2 x SATA interface (1 x 4TB HDD included)

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External HDD

No

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN

• 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera

PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3 af/at

Network

Network Protocol

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browser Supported

Firefox, Chrome, Edge, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~54V

Power Consumption

<10W (without HDD & PoE)

Working Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

Dimensions

330 x 45 x 285mm

Weight

2.4kg

RLC-1224A(4.0mm):

Note:

The camera is only applicable for bundle sale.

Video & Audio

Image Sensor

1/2.49" CMOS Sensor

Video Resolution

Default: 4512X2512 (12 Megapixels) at 20 frames/sec

Lens

f=4.0mm; F=1.6, with IR-cut filter

Video Format

H.265

Field of View

• Horizontal: 93°

• Vertical: 49°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

30 meters (100ft) (LED: 2pcs/28mil/850nm)

Color Night Vision

Spotlight: 1pcs/4.3W/6500K/700 Lumens

Audio

Two-way audio

Power

POE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

microSD card slot (Max. 256GB)

Audio

Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 2fps - 20fps (default: 20fps)

• Substream: 4fps - 20fps (default: 10fps)

Code Rate

• Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps)

• Substream: 128Kbps - 1024Kbps (default: 768Kbps)

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection/person detection/vehicle detection/pet detection

Record Mode

Motion-triggered recording (default); scheduled recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 Users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

Work with

Google Assistant

Working Environment

Temperature

Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP67

Size & Weight

Dimension

Φ117.4*103.8mm

Weight

515g

Dimension

Φ117.4*103.7mm

Weight

510g
