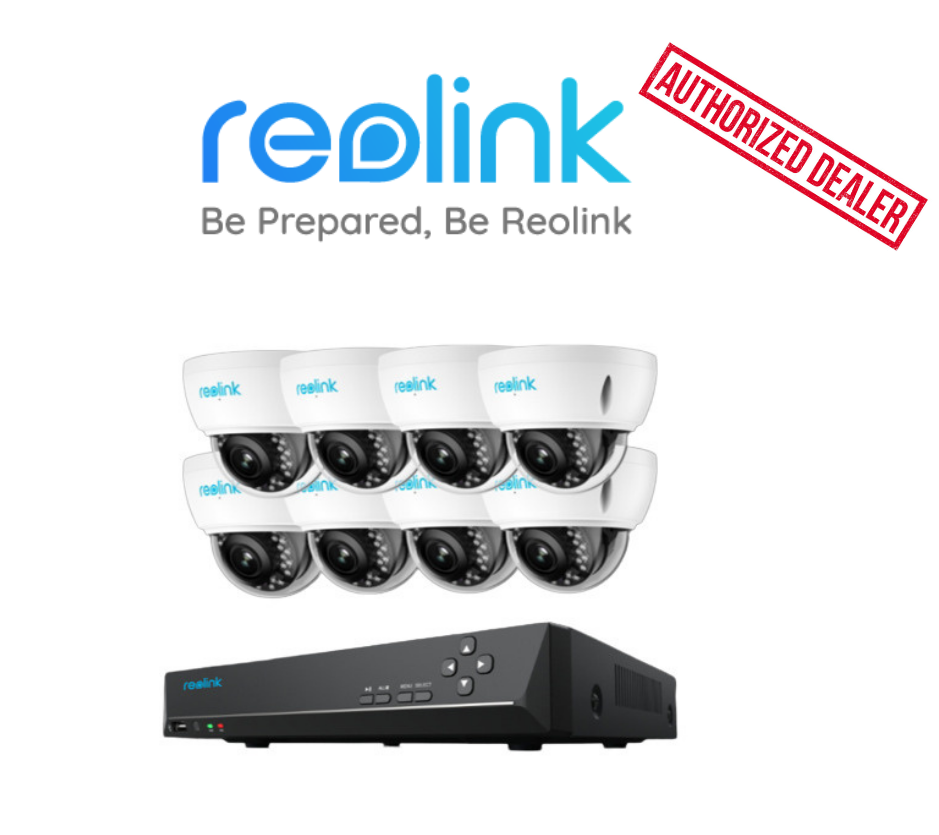

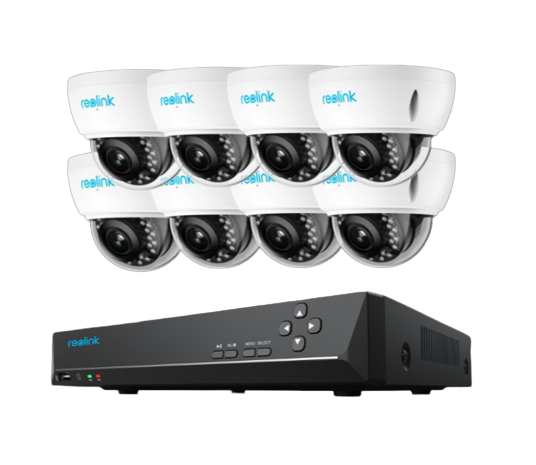

Reolink 16CH NVR 4K 8MP Ultra HD PoE 4TB HDD Human/Car Detect Security System

Regular price $1,403.00
Sale price $1,403.00 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    RLK16-842D8-A
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 16CH NVR 4K 8MP Ultra HD PoE 4TB HDD Human/Car Detect Security System - Secure IT Global

Reolink 16CH NVR 4K 8MP Ultra HD PoE 4TB HDD Human/Car Detect Security System

Regular price $1,403.00
Sale price $1,403.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

4K IK10 PoE Security System with 24/7 Recording & Smart Detection



4K 8MP Ultra HD

5X Optical Zoom

IK10 Vandal Proof

16-Channel 4TB NVR

                         Accurate Detection, Premium Protection

Thanks to advanced detection technology, this security system can better keep an eye on your home and business. You can receive alarms only when the cameras detect a person, vehicle, or pet within their monitoring area. No subscription fees are required.

                                Marvelous 4K Day & Night

Blurry images are already a thing of the past. Now enjoy a 4K visual experience with this system! Whatever you see around your home or store, you'll get a sharp and clear live feed and playback of it, day or night.

              Make Distant Details Closer with 5X Optical Zoom

Cameras in this security system feature a motorized varifocal lens, offering a wide angle of 27° to 96° and 5X optical zoom. Feel free to zoom out for a large field of view or zoom in on faraway objects for more details without sacrificing clarity.

                                       IK10 Vandal-Proof

The cameras are covered with certified IK10 rugged housing to withstand malicious damage. Shatter-proof and vandal-proof, even "professional" thieves cannot destroy them.

                           Easy PoE Installation within Minutes

Applying the Power over Ethernet (PoE) technology, cameras in this kit transmit videos and electric power using only one network cable. Enjoy more convenience with fewer costs and less wiring.

                                 Withstand Any Weather

Cameras of this PoE system are equipped with robust IP66 aluminum metal housing to withstand extreme weather conditions such as rain, sleet, or strong winds. Ideal for outdoor use.

Specifications:

Video & Audio

Image Sensor

1/2.8" CMOS Sensor

Resolution

Standard: 3840 x 2160 (8.0 Megapixel) at 25 fps

Lens

f=2.7-13.5 mm F=1.6-3.3

Optical Zoom

5X

Video Compression

H.265

Viewing Angle

• Horizontal: 96° - 27°

• Vertical: 69° - 21°

Day/Night Mode

Automatic switching

Night Vision

Up to 30M (LED: 24 pcs/14 mil/850 nm)

Audio

Audio recording

Power Supply

PoE

IEEE 802.3 af, 48V Active

DC Power

DC 12.0V⎓1A, < 12W

Interface

Power

DC power input

System

Reset button

Ethernet

1 × 10M/100 Mbps RJ45

Storage

Micro SD card slot (Max. 256 GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2 fps - 25 fps (Standard: 25 fps)

• Substream: 4 fps - 15 fps (Standard: 10 fps)

Bitrate

• Mainstream: 4096 Kbps - 8192 Kbps (Standard: 6144 Kbps)

• Substream: 64 Kbps - 512 Kbps (Standard: 256 Kbps)

Browser

Edge, Chrome, Firefox, Safari

Operating System

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alerts

Motion/people/car detection; pet detection

Recording Mode

Motion recording (default); schedule recording; 24/7 recording

Protocol & Default

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Max.User Access

20 users (1 administrator account & 19 user accounts); supports up to 12 simultaneous video streams (10 × substream & 2 × mainstream)

Smart Home

Google Assistant

Working Environment

Temperature

Working temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Working humidity: 10% - 90%

Weatherproof

IP66

Vandal-proof

IK10

Height & Weight

Size

Φ133 x 100.25 mm

Weight

686 g

RLN16-410:

Video & Audio

Image Sensor

1/2.8" CMOS Sensor

Resolution

Standard: 3840 x 2160 (8.0 Megapixel) at 25 fps

Lens

f=2.7-13.5 mm F=1.6-3.3

Optical Zoom

5X

Video Compression

H.265

Viewing Angle

• Horizontal: 96° - 27°

• Vertical: 69° - 21°

Day/Night Mode

Automatic switching

Night Vision

Up to 30M (LED: 24 pcs/14 mil/850 nm)

Audio

Audio recording

Power Supply

PoE

IEEE 802.3 af, 48V Active

DC Power

DC 12.0V⎓1A, < 12W

Interface

Power

DC power input

System

Reset button

Ethernet

1 × 10M/100 Mbps RJ45

Storage

Micro SD card slot (Max. 256 GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2 fps - 25 fps (Standard: 25 fps)

• Substream: 4 fps - 15 fps (Standard: 10 fps)

Bitrate

• Mainstream: 4096 Kbps - 8192 Kbps (Standard: 6144 Kbps)

• Substream: 64 Kbps - 512 Kbps (Standard: 256 Kbps)

Browser

Edge, Chrome, Firefox, Safari

Operating System

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alerts

Motion/people/car detection; pet detection

Recording Mode

Motion recording (default); schedule recording; 24/7 recording

Protocol & Default

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Max.User Access

20 users (1 administrator account & 19 user accounts); supports up to 12 simultaneous video streams (10 × substream & 2 × mainstream)

Smart Home

Google Assistant

Working Environment

Temperature

Working temperature: -10°C - +55°C (14°F - 131°F)

Humidity

Working humidity: 10% - 90%

Weatherproof

IP66

Vandal-proof

IK10

Height & Weight

Size

Φ133 x 100.25 mm

Weight

686 g
