Reolink 16CH NVR 4K UHD 8MP PoE 4TB HDD Human Car Detect Smart Security System

Regular price $1,200.00
Sale price $1,200.00 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    RLK16-810B8-A
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 16CH NVR 4K UHD 8MP PoE 4TB HDD Human Car Detect Smart Security System - Secure IT Global

Reolink 16CH NVR 4K UHD 8MP PoE 4TB HDD Human Car Detect Smart Security System

Regular price $1,200.00
Sale price $1,200.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

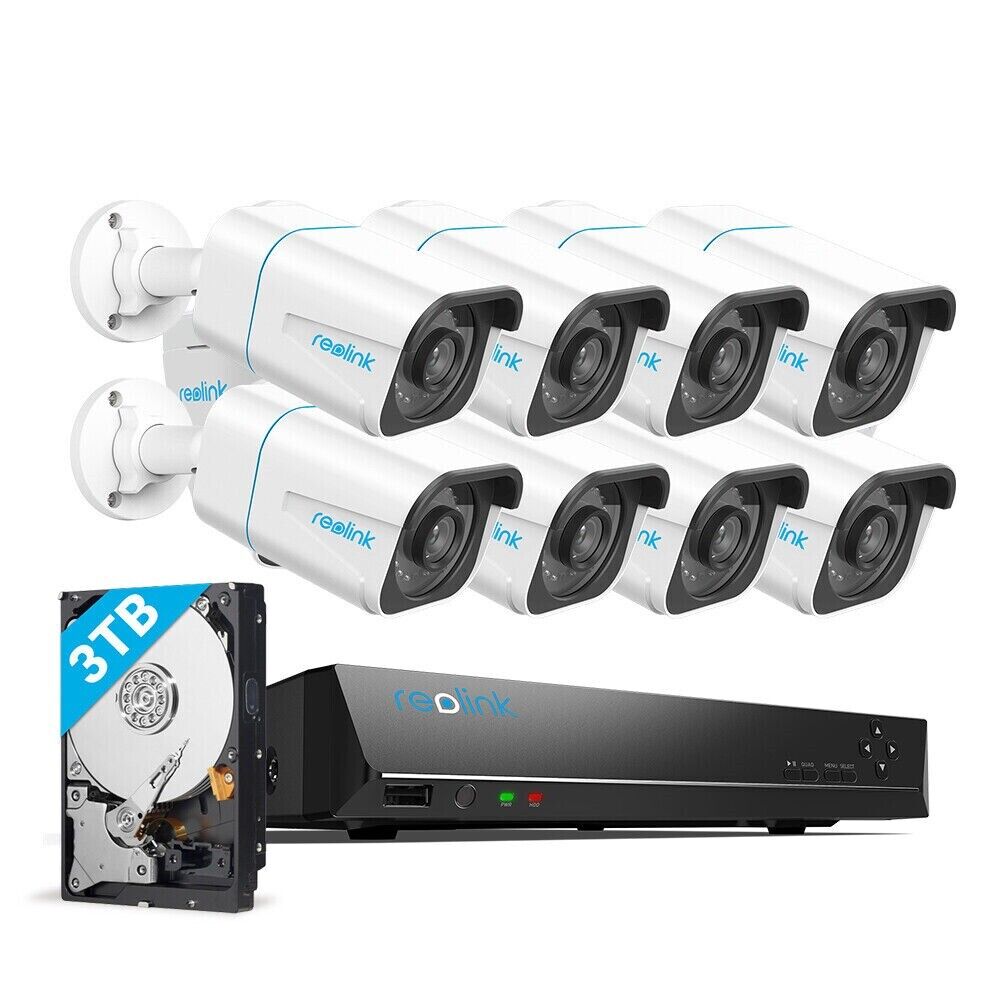

Reolink 4K Security Camera System H.265, 8pcs 8MP Person/Vehicle Detection Smart Wired Outdoor PoE IP Cameras, 8MP 16-Channel NVR with 4TB HDD for 24/7 Recording



Smart Alerts, Less trifle
Powered by smart motion detection technology, this camera can tell people and vehicles from other objects. Get alerts when suspicious person or car is loitering around your house or store. Protect your property from potential threat.

4K Ultra HD, Better in Details!
Futuristic 4K Ultra HD Has Arrived. This 4K 8MP IP camera boasts the pixel resolution of 3840x2160, delivering the highest level of imagery like never before.

See Through the Darkness
Thanks to 18pcs powerful infrared LEDs and enhanced 3D-DNR technology, the 4K ip camera can capture every move of would-be burglars or naughty fence-jumping animals at night with vivid and noise-free details.

Smart Playback, Easy locate key moment
Fliter clips by person, vehicle or motion. Finding important video is much easier.

Set schedule and area as you want
Create motion schedule and specific areas that you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.

Easy PoE Setup
No power cable or adapter is needed. RLK16-810B8-A with Power over Ethernet (PoE) technology needs only a network cable for each camera. Less wiring, less cost, more convenience.

Work with Reolink Wifi Camera
This security camera system also work with all Reolink WiFi cameras except the battery powered cameras.




Remote Access and Playback
With FREE Reolink software, users can access footage via their smart phone (IOS/Android) or computer (Windows/Mac). When replaying all-day videos, you also can easily find the clip you need by date or type of motion event (Human/Vehicle/Motion Detection).

Data Encryption, Cyber Security
We use AWS server to achieve remote access to your system, meaning your data stays your data as the Reolink servers are not involved at all. All the data is dynamically encrypted and well protected.

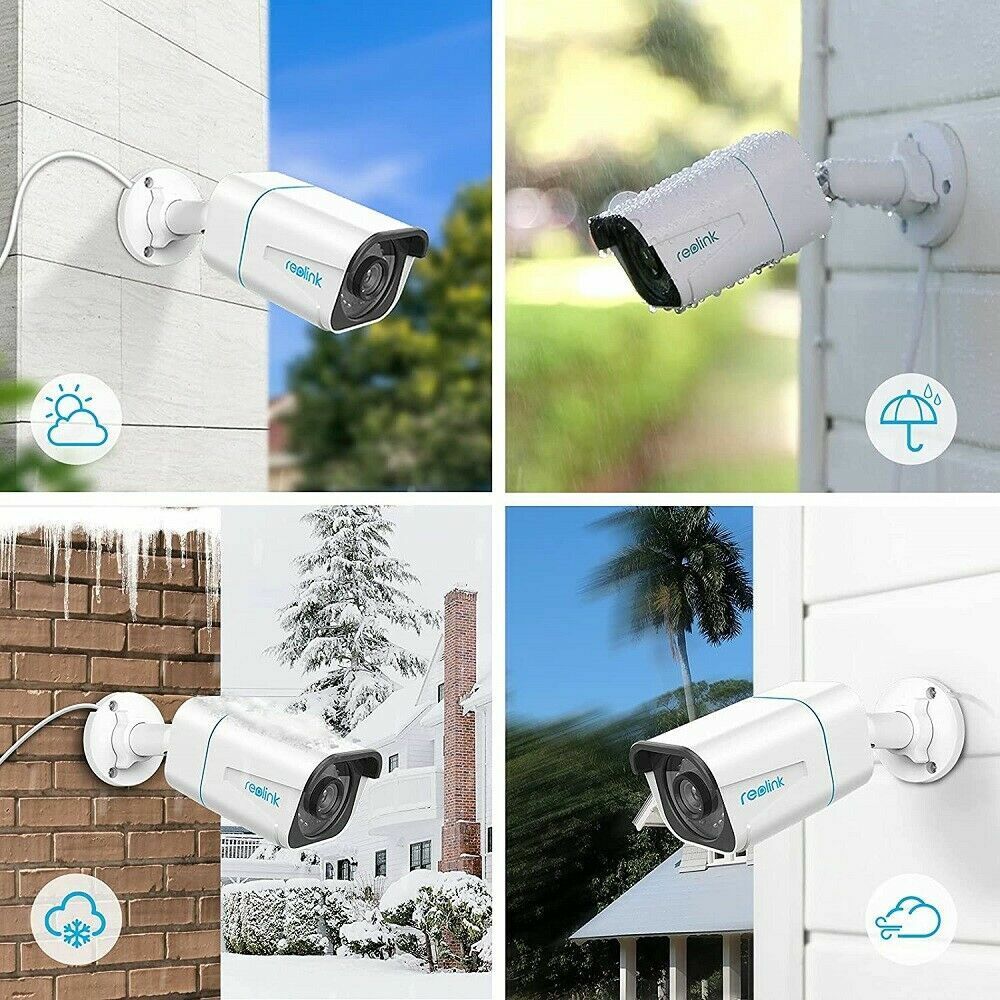

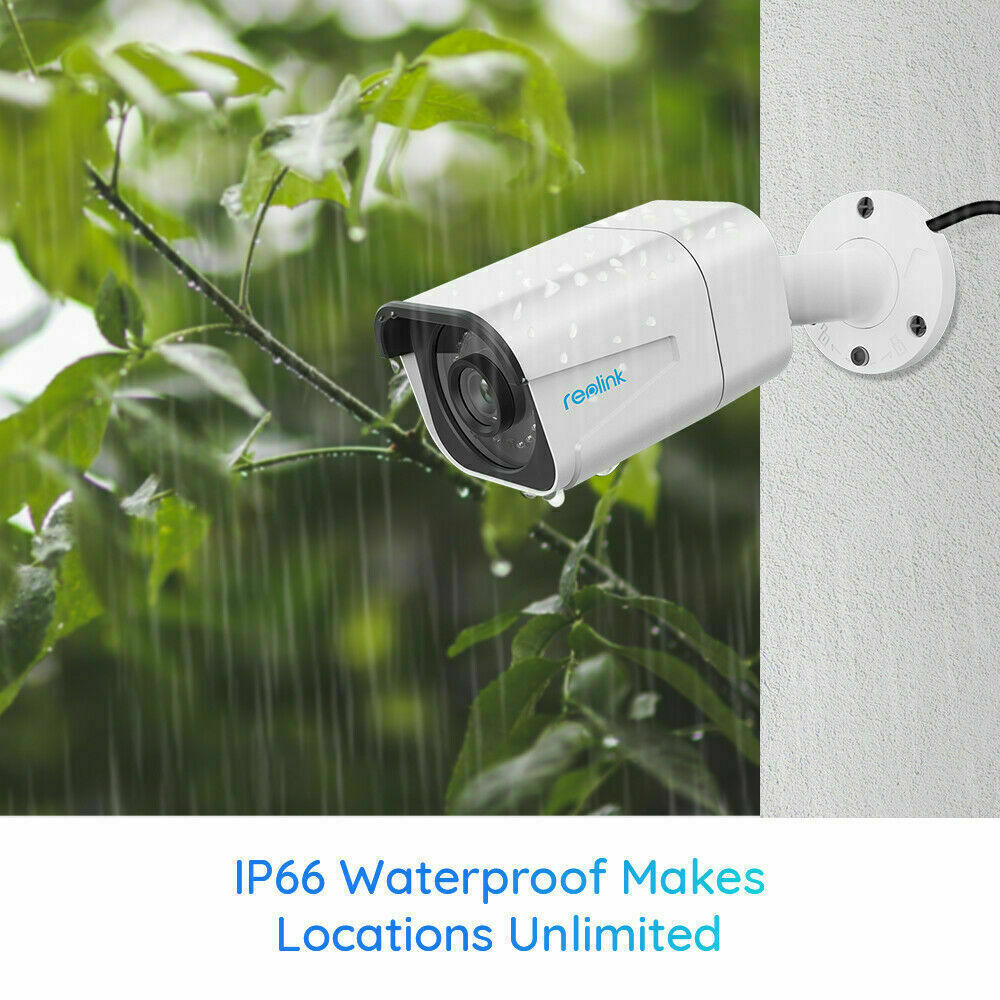

Durable IP66 Certified Weatherproof
Your 4K PoE cameras can operate efficiently both indoors and outdoors. With IP66 waterproof rating, these cameras can withstand various conditions, such as freezing rain, heavy snow and extreme heat.

Applied to Multiple Occasions


RLN16-410-4K Specifications
Hardware Hardware V2
Video/Audio Input IP Video Input PoE IP Camera x 16 Audio Input Cameras with Built-in Mic
Video/Audio Output Video Output VGA, HDMI Display Resolution
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720,1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio Output 1-Channel, RCA
Decoding Video Format H.265, H.264 Live View/Playback Resolution 3840*2160, 2560x1920, 2560*1440, 2048*1536, 2304*1296, 1080P, 720P
Synchronous Playback 1-4 Channel(s)
Storage SATA 2 SATA Interfaces for 2HDDs Capacity Up to 6TB Capacity for Each HDD
External HDD NO
External Interface USB Interface 2 x USB 2.0 Network Interface
• 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
• 16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
PoE Max. Power Consumption/Port 25w Supported Standard
IEEE 802.3 af/at
Network Network Protocol HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browsers Supported
Edge, Firefox, Chrome, Safari
OS Supported PC: Windows, Mac OS; Smart Phone: iOS, Android Max. User Access
20 Users
General Power Supply DC 48V/2.5A Power Consumption
<10W(Without HDD & PoE)
Working Environment Temperature: -10°C ~+55°C (14°F~131°F); Humidity: 10%~90% Dimensions (mm)
330 x 45 x 285
Weight 1.8 kg (Without HDD)




PoE Camera Specifications
Video & Audio Image Sensor 1/2.49" CMOS Sensor Video Resolution 3840x2160 (8.0 Megapixels) at 25 frames/sec
Lens f=4.0mm fixed; F=2.0, with IR-cut filter Video Format H.265
Field of View
• Horizontal: 87°
• Vertical: 44°
Day & Night Auto-switching IR-cut filter
Night Vision 30 meters (100ft) (LED: 18pcs/14mil/850nm) Audio Audio recording
Power PoE IEEE 802.3af, 48V Active DC Power DC 12.0V⎓1A, <12W
Interface Power DC power port System Reset button
Ethernet One 10M/100Mbps; RJ45
Audio Built-in microphone
Software Features Frame Rate
• Mainstream: 2fps - 25fps (default: 25fps)
• Substream: 4fps - 15fps (default: 10fps)
Code Rate
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
Browser Supported
IE, Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Person detection; vehicle detection; motion detection
Record Mode
Motion-triggered recording (default); scheduled recording
Maximal User Access 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Working Environment Temperature
Operating temperature: -10°C - +55°C (14°F - 131°F)
Humidity Operating humidity: 10% - 90%
Waterproof
IP66

Size & Weight Dimension
Φ192*66mm
Weight 485g
