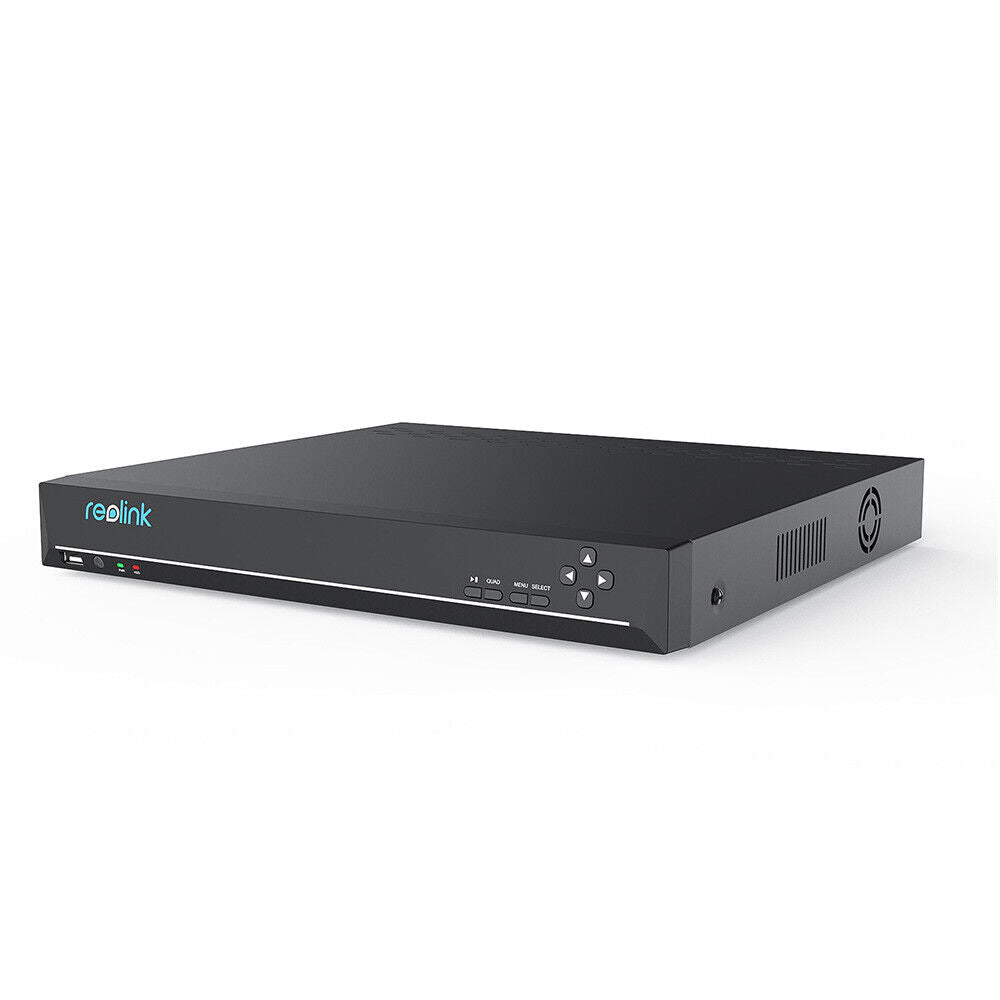

Reolink 36CH Network Video Recorder NVR for Security Camera System No HDD

Regular price $255.00
Sale price $255.00 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    RLN36
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 36CH Network Video Recorder NVR for Security Camera System No HDD - Secure IT Global

Reolink 36CH Network Video Recorder NVR for Security Camera System No HDD

Regular price $255.00
Sale price $255.00 Regular price
Unit price
Product description
Shipping & Return
User Manual
REOLINK 36 Channel Network Video Recorder for Security Camera System, Work with 12MP/4K/5MP/4MP HD Reolink IP Cameras NVR, Integrated O/I Alarm System, 3 HDD Bays, No HDD Included



Only Work with Reolink IP cameras
Work perfectly with all Reolink PoE 4K/5MP/4MP cameras and Reolink WiFi cameras with DC power, such as RLC-510A, 520A, 811A,810A, 820A, 823A, 842A, Duo PoE,E1 Outdoor cameras. Manage up to 36 Reolink IP cameras simultaneously easily.

Incredibly Clear Videos in 12MP & Excellent Night Vision
Higher resolution means more image details to be captured. You will definitely have the best chance to see every image details as you wish.

Expand Your System with PoE Switches
By connecting up to four PoE switches to the LAN ports of the NVR, you can extend your system for broader coverage and higher performance. Separating 36 cameras to 4 PoE switches, then connecting the PoE Switches to the RLN36 for integrated management, your 4K security system can be accessed with no latency with or without internet.

Easy & Flexible Setup
The NVR has one LAN port for connecting to a router and four Internet ports (non-PoE) for connecting to PoE switches or directly to cameras. You can also connect the cameras to the NVR via WiFi without wiring. Note: 1. To protect your PoE switch(es) from overloading, distribute your cameras/PoE switches evenly to the four Internet ports if possible. 2. The PoE switches need separate power supplies.

3 HDD Bays, Business-Grade Storage
The RLN36 network video recorder contains three HDD bays with each supporting up to 16TB HDD (NO HDD included). With 48TB storage in total and 36 IP cameras recording 24/7 at 6Mbps, the HDDs can last around 20 days. For a list of the recommended HDDs, please refer to the FAQ/Video page for more details.
*HDDs are purchased separately.

Audio In/Out: Ready to Listen and Talk
This Reolink NVR can be plugged into mic/speaker devices to hear & talk back to whoever you catch on the monitor via Reolink cameras with two-way talk function. The RCA male-to-female converters are required (not included). The USB 3.0 port will help you back up important footage from your HDD to your portable hard drive efficiently.
*To fully realize the two-way audio function, connect the NVR to Reolink cameras with the mic & speaker.

Alarm In/Out: Enrich Your Surveillance System
8 alarm-in channels for linking extra wired sensors (temperature, IR, magnetic sensors, etc.) to detect separate events; 4 alarm-out channels for commanding controllers (door, light, siren switches, etc.) to execute actions.

Local and Remote Access
For local access and control: Connect the NVR system to a monitor or an HD TV.
For remote access and control: Use the free Reolink App on a mobile device, Reolink Client on a computer or via web browsers.

Upgraded Design, Faster Data Transfer
With or Without Internet: This PoE NVR can be used without being connected to the internet for local recording and live viewing. However, an internet connection is required to enable remote viewing, motion push notifications.
Faster Connection Than You Imagine: RLN36 NVR is embedded with HEVC, 1Gbps LAN ports & WAN port that can provide real-time connection to your 4K security cameras smoother than ever. Hassles saved for loading & caching, more peace of mind gained.

Gallery & Specs


Reolink 36CH Network Video Recorder Specifications

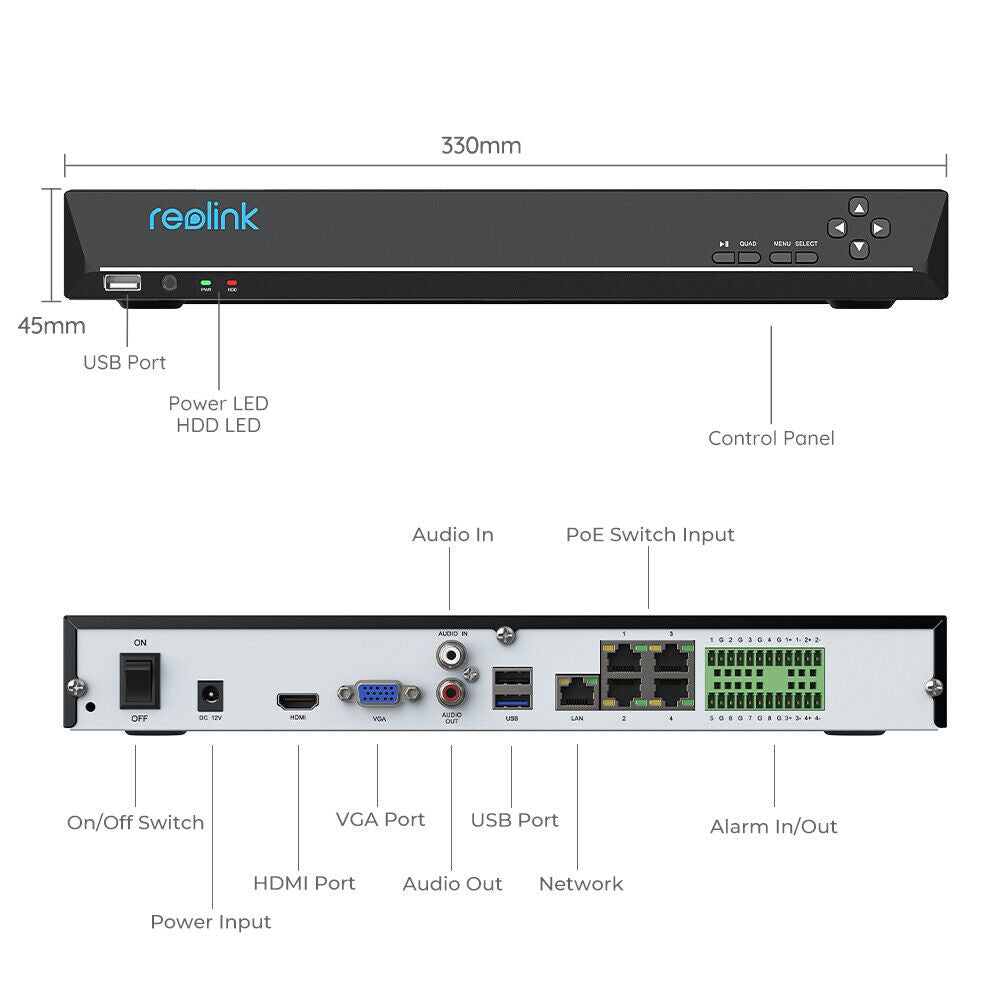

External Interfaces Name
36-Channel 12MP Network Video Recorder
Video Out 1 HDMI, 1 VGA
Audio Ports
1 audio-in channel, RCA; 1 audio-out channel, RCA
USB Ports Front panel: 1 x USB 2.0; Back panel: 1 x USB 2.0, 1x USB 3.0
Ethernet Ports
• 4 x RJ-45, 10/100/1000 Mbps self-adaptive (for IP cameras)
• 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)
• No PoE Port
Alarm In: 8 channels; Out: 4 channels
Video IP Camera Input Supports up to 36 channels of IPC access; each channel up to 12MP input Video Output
• HDMI: 4096x3072, 3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
• VGA: 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
Audio Two-Way Audio Built-in audio in & out ports Audio In Via cameras with Mic; via built-in 1 channel
Audio Out
Via bulit-in 1 channel

Recording Video Compression H.265, H.264 Live View/Playback Resolution 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p
(Supports only 1-channel playback if you view it in 8MP or higher resolution.)
Synchronous Playback 1-4 channels Supported Modes Person/vehicle detection; motion-triggered detection; 24/7 recording
Storage Internal HDD 3 SATA ports for 3 HDDs (optional) External HDD No
Max. Capacity
48TB (Max. 16TB HDD for each SATA)

Network Network Protocols
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
Browsers Supported
Edge, Firefox, Chrome, Safari
OS Supported
PC: Windows, Mac OS; Smart phone: iOS, Android
Max. User Access
20 Users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General Power Supply
DC 12V/5.4A
Power Consumption
<10W(without HDD)
Working Environment
-10°C ~+55°C (14°F~131°F); 10%~90%
Dimensions
330 x 48 x 310mm
Weight
2.26kg (without HDD)


Warranty Limited Warranty
2-year limited warranty.
