Reolink 4MP HD 16CH NVR 4TB HDD 8 Cameras PoE Security IP Camera System

Regular price $840.00
Sale price $840.00 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    RLK16-410B8
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 4MP HD 16CH NVR 4TB HDD 8 Cameras PoE Security IP Camera System - Secure IT Global

Reolink 4MP HD 16CH NVR 4TB HDD 8 Cameras PoE Security IP Camera System

Regular price $840.00
Sale price $840.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

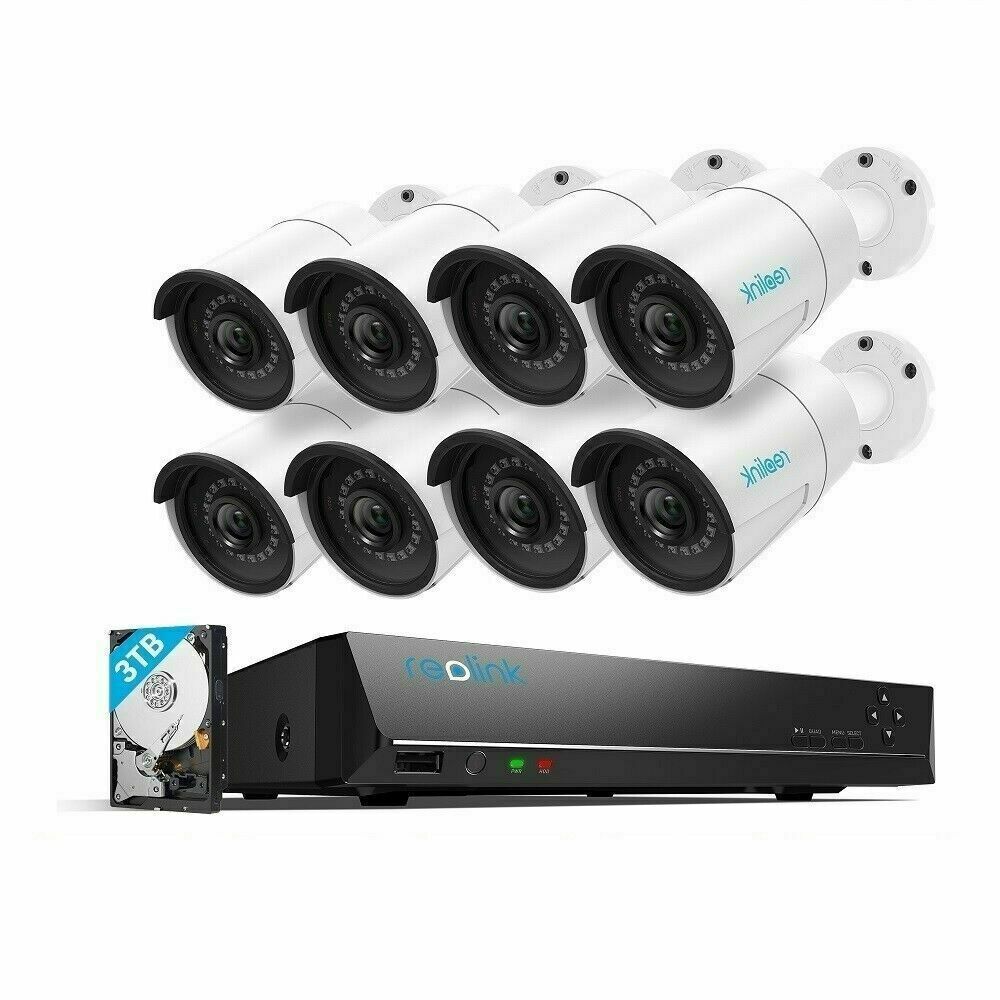

Reolink 4MP 16CH PoE Video Surveillance System, 8pcs Wired Outdoor 1440P PoE IP Cameras,16-Channel NVR with 4TB HDD for Home and Business 24/7 Recording



4MP Super HD, Clear and Sharp
Record real-time live video with 1440P (4MP) cameras. You can see incredibly bright and crystal images in real color. It presents real colors of objects, and enables you to view sharp and super clear images with live video streaming.

Good Night Vision, for Peace of Mind at Night
With 18pcs LEDs in each camera, and improved infrared radiation for 24-hour vigilance, this system ensures a high quality night vision (100 feet long distance)

Built-in Mic, Live Stream and Playback Video with Audio
The IP Security camera system comes with built-in mic. It will transfer both video and clear audio together. You will not only see, but also hear clearly what is going on via Reolink app. or Reolink windows,mac client software.

Smart Motion Alerts
Detects movement in real-time, triggers the camera to record videos of the scene and alerts you via app push notification, an email with a photo or 30s video. You can set up an FTP server for the system to upload the captured images and videos. In addition, the NVR will sound a buzzer sound using the buzzer function.
Set Motion Detection Schedule for NVR
The motion detection on NVRs is enabled all the time by default, users can schedule when the motion detection will work and when not according to actual needs.

Flexible Video Playback
As one of the outstanding features of the Reolink RLK16-410B8 16 channel PoE security camera system, the playback feature allows you to know the whole events.
●Replay significant evidence or funny video records.
●4-channel simultaneous playback.
●Quick search for any event that happened at any time.
●Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.

Optional for Local and Remote Viewing
For local access and controlConnect the system to a monitor or an HD TV.For remote access and controlGet live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows PCs & Mac computers, or via IE browser.

24/7 Continuous Recording
Feel protected 24/7 with 16 cameras running simultaneously. With a pre-installed 3TB HDD, users can record videos continuously or record motion-triggered video only without worrying about missing a thing.

PoE — Easy Setup, Even for a Beginner
A real plug and play security system! With a single network cable connecting each of your IP cameras to the NVR for both power supply and video signal transmission. Easy wiring – the wiring process can’t be simpler for DIY enthusiasts.

Work with Reolink Wifi Camera
RLN16-410 could work perfectly with Reolink PoE camera for 24/7 recording, motion detections, live views, playback and more features. And it also supports working with Reolink wifi camera if they are in the same LAN.

Waterproof Works Perfectly Outdoor/Indoor
With an IP66 waterproof rating, you can feel free to install these cameras outdoors, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.


RLN16-410-5MP Specifications
System GUI 16-Bit True Color Operating System Embedded Linux OS
Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams).
Video/Audio Input Video Input PoE IP Camera x 16 Audio Input Cameras with Built-in Mic
Video/Audio Output Decoding Resolution 5MP/4MP/3MP/1080p/720p VGA Output 1024*768, 1280*720, 1280*800, 1280*1024, 1440*900, 1080p
HDMI Output 1024*768, 1280*720, 1280*800, 1280*1024, 1440*900, 1080p Audio Output 1CH RCA (Linear, 1kΩ)
Playback Resolution 5MP/4MP/3MP/1080p/720p Synchronous Playback 4CH
HDD SATA Devices 1 x 3TB (2 SATA Slots) Maximum Capacity 12TB (Maximum 4TB HDD/Port)
External HDD 1 x e-SATA
External Interface USB Connector 2 x USB 2.0 Network Interface RJ45, 10M/100M Ethernet, 16 Network Ports for IP Cameras, 1 Giga Network Port for LAN/WAN
Network Network Protocol HTTP, HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Mobile Devices iPhone, Android Smartphones
System Upgrade USB Local Update + Client Update Remote Software Reolink App, IE Browser, Reolink Client (Windows/Mac)
General Power Supply Input 100~240V, 48V 2.5A Consumption <10W Without HDD & PoE
Working Temperature -10℃~+55℃(14°F~131°F) Working Humidity 10%~90%
Dimension (mm) 330(W) x 45(H) x 260(D) Weight (w/o HDD/DVD±RW) 3.0 kg



B400 Specifications
Camera Image Sensor 1/2.7" CMOS Sensor Effective Pixels 2560x1440 (4.0 Megapixels)
Lens f=4.0 mm Fixed, F=2.0 Angle of View Horizontal: 80°, Vertical: 42°
Day/Night Mode Auto Switchover Min. Illumination0 Lux  0 Lux (With IR Illuminator)
IR Distance 30 Meters (100ft)(LED: 18pcs/14mil/850nm) Backlight Compensation Support
Noise Reduction 3D DNR Resolution Mainstream: 2560x1440, 2048x1536, 2304x1296, 1080p, 720p; Substream: 640x360
Video Compression H.264
Bitrate Mainstream: 1024Kbps~8192Kbps; Substream: 64Kbps~512Kbps Frame Rate Mainstream@25fps, Substream@6fps
Audio Interface Built-in Microphone
Network Interface One 10M/100Mbps RJ45 Network Protocol SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS
OS Supported PC: Windows, Mac OS; Smartphone: iOS, Android Max. User Access 20 Users (1 admin account & 19 user accounts); Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams).
General Power Supply DC12V & PoE (IEEE 802.3af 48V Active) Power Consumption <10W
Working Environment -10°C~+55°C (14°F~131°F), Humidity: 10%~90% Ingress Protection IP66
Dimension Φ67x186 mm Weight 425 g

Shipping Policies

Items are usually shipped out from distributor or manufacturer warehouse within 1-3 business days but sometimes can take longer due to verification or if the item is on backorder. Once the item has shipped out, delivery time frame within the United States is normally within 5 business days.

If an item is sold out or has been discontinued we may upgrade the item to something similar or better at no additional cost.

*Orders can only be shipped to physical address, for security reasons the billing and shipping address must be the same.  Unfortunately, we cannot deliver to PO Boxes or APO addresses. We also cannot ship to any of the US Territories including Puerto Rico, Guam, the Virgin Islands.

International Shipping

We offer international shipping on some items. Please contact us for international shipping.

THE CUSTOMER IS RESPONSIBLE FOR ALL TAXES AND DUTIES.

All shipping addresses are verified before the order is dispatched. If the provided address is invalid, your order will be put on hold and our representative will contact you for an address update. Mobile World reserves the right to cancel orders with incomplete or invalid shipping addresses.

International Taxes, Import Duties, and Custom Fees

It is your responsibility to pay all applicable taxes and/or customs fees.

Please note that if import duties and taxes are applicable there may be additional charges charged by the courier company handling the delivery of your goods.

We cannot guarantee that your order will ship in a single box. Products may ship from multiple warehouses to facilitate a faster delivery. The recipient is the importer of record and must comply with all local laws and regulations of the destination country.

Orders shipped from the United States destined for an international destination may be subject to local import taxes, customs duties and fees levied by the country where the goods are being delivered.

The recipient of an international shipment may be subject to such import taxes, customs duties and fees, which are levied once a shipment reaches the recipient’s country. Additional charges for customs clearance must be borne by the recipient; we have no control over these charges and can’t predict what they may be.

Return Policies

*Software, services and "Special Order" items including Thermal Imaging products and Temperature monitoring solutions are not eligible for return.

30 Day Return Policy for Unopened Physical Goods Excluding Software, and Special Order Items

If for some reason you no longer want the item, you may return it within 30 days from date of purchase as long as it still brand new, unopened and factory sealed (with the exception of software, services, and special order items such as Thermal Imaging and temperature monitoring solutions which are non returnable). Items must be returned within 10 business days of an RMA issue date, after which the shipment will be refused. that has been opened cannot be returned for credit. Once a product is opened, or the factory seal is broken, it is considered used. This includes product that was just installed to test. Merchandise will not be accepted for return (for credit or repair) unless a Return Merchandise Authorization (RMA) number has been issued. For refunds, there is up to 5% fee to cover merchant processing fees. If an item is returned used or missing any of the original packaging or accessories, based on condition of the product we may additionally charge a minimum 25% re-stocking fee or in some cases refuse any refund and will be returned back to customer at customers’ expense. In case of return for refund, all shipping cost is to be paid by purchaser.

Damaged, Defective or Incorrect Items

If you’ve received an order containing damaged, defective, or incorrect items, please contact us within 5 days from the date of delivery with your order number and a photo of the issue.

Sales Tax

There will be sales tax for all items being shipped to NY. Sales tax will also be collected on behalf of some of our vendors for items shipped to certain states where Nexus applies.

User Manual not available

User Datasheet not available

User Firmware not available

User software / app not available
