Reolink 5MP IP 8CH NVR PoE Security Camera Kit with Person/Vehicle Detection

Regular price $529.00
Sale price $529.00 Regular price
Unit price
  • Vendor:
  • Availability:
    In Stock
  • SKU:
    RLK8-510B4-A(Black)
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 5MP IP 8CH NVR PoE Security Camera Kit with Person/Vehicle Detection - Secure IT Global

Reolink 5MP IP 8CH NVR PoE Security Camera Kit with Person/Vehicle Detection

Regular price $529.00
Sale price $529.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

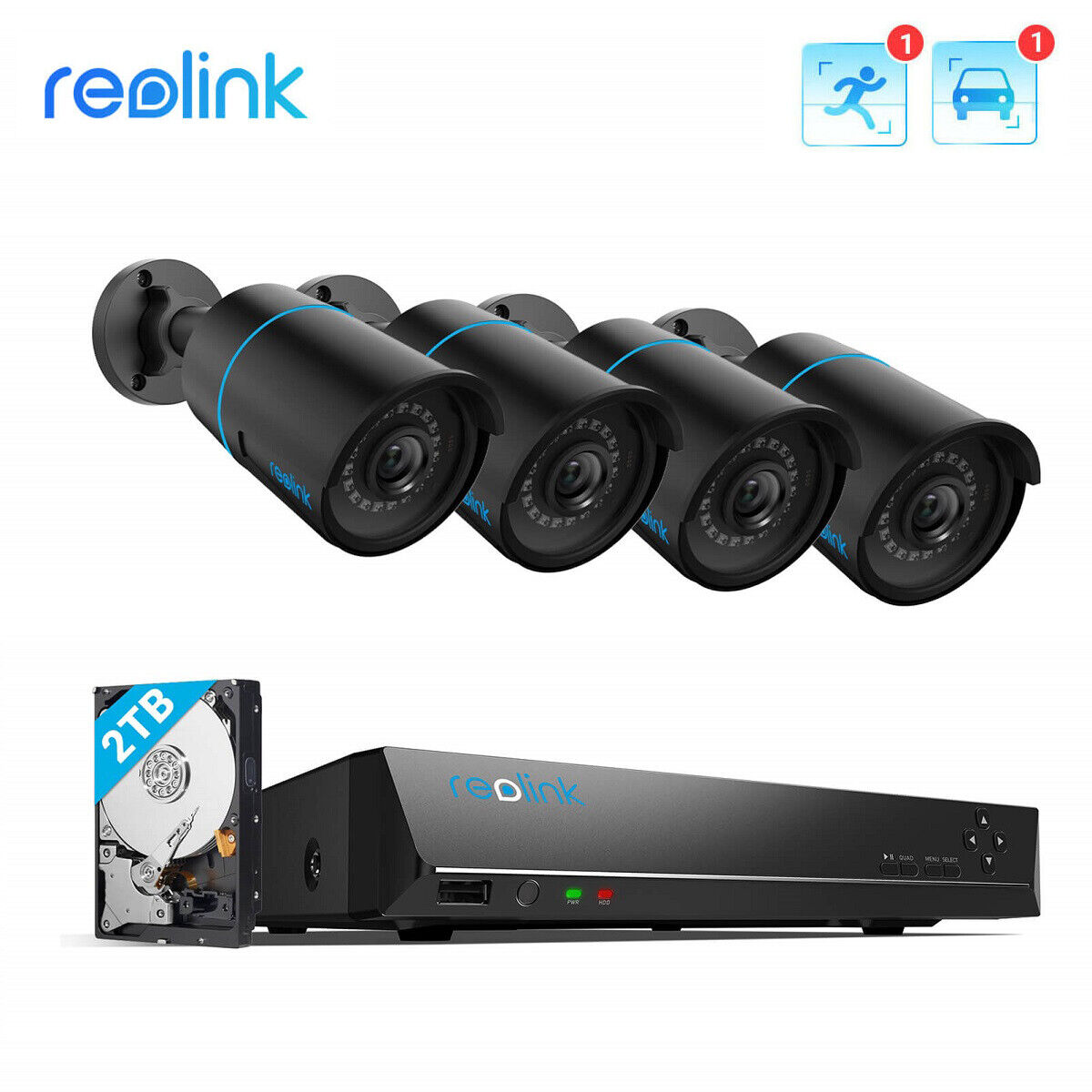

REOLINK 8CH 5MP Security Camera System, 4pcs Person/Vehicle Detection Smart 5MP Wired Outdoor PoE IP Cameras, 8CH NVR with 2TB HDD for 24-7 Recording

                                                                                                                                                         Smart Alerts, Less trifle
Powered by smart motion detection technology, this camera can tell people and vehicles from other objects. Get alerts when suspicious person or car is loitering around your house or store. Protect your property from potential threat.

                                                                                                                         Quick Search in Playback
When replying all-day videos, you can easily find the clip you need by date or type of motion event. With Reolink App or Client.
Remarkable 5MP HD Display
Pixel resolution of 2560x1920, these cameras provide vivid and crystal clear images in real time. You will have the best chance to see every detail in the images.
Keep Guard at Night
With 18 infrared LEDs in each cam, this system captures videos clearly in the dark within the range of up to 100ft, protecting your home and business with 24-hour vigilance.

Motion Alerts
The PoE camera security system detects moving objects and triggers alerts when danger occurs. A prompt e-mail or push notification will be sent to users’ smart devices immediately, allowing for quick action when trouble arises.
Motion Zone
You can customize the motion zone to your like, deciding where objects’ movements will be detected and where they will not.

Record Scheduling
You can set each camera respectively to record continuously, or when the motion is detected, or on your time schedule.


Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.
Unfailing 24/7 Recording
With the 2TB HDD and the storage capacity of up to 12TB, the PoE video surveillance kit supports all cameras to record continuously at the same time. You will have all-day video without missing a beat.
Quick PoE Set-up, Super User-Friendly
Power, video, and sound run through one single PoE cable, making the installation simple. Cameras come with 60ft 8Pin network cables, which can be directly connected to the NVR. Users enjoy an easy set-up without additional purchases.


Work with Reolink Wifi Camera
This security camera system also work with all Reolink WIFI cameras if they are in the same LAN except the battery powered cameras.

Customize Your Own Security Camera System
This security system kit RLK8-510B4-A supports all Reolink 4K/5MP/4MP IP cams(except Battery-powered cameras), apart from this NVR, you can choose up to 8 cameras to build your own video surveillance system.
(It needs two unoccupied channels of the Reolink NVR to add Duo PoE/WiFi security camera.)
DO IT YOURSELF
811A 822A 842A 823A 810A 820A 812A 510A 510A-Black 520A
PoE Cameras with Person/Vehicle Detection and Zoom PoE Cameras with Person/Vehicle Detection
Duo PoE Duo WiFi 523WA 542WA 511WA E1 Outdoor 510WA Lumus 410W E1 Series
Dual Lens Cameras WiFi Cameras with Person/Vehicle Detection and Zoom Outdoor/ Indoor WiFi Cameras

IP66 Weatherproof and Durable
The rugged housing and body make these security IP cameras waterproof. They work perfectly both inside and outside your house, in any harsh weather conditions.

Data Encryption, Cyber Security
We use AWS server to achieve remote access to your system, meaning your data stays your data as the Reolink servers are not involved at all. All the data is dynamically encrypted and well protected.



Specifications
Model Name 8-Channel PoE Network Video Recorder Hardware V2
Video/Audio Input IP Video Input PoE IP Camera x 8 Audio Input Cameras with Built-In Mic
Video/Audio Output Video Output VGA, HDMI Display Resolution
• HDMI: 3840*2160, 1920*1080, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1280*1024, 1280*720, 1024*768
Audio output 1CH RCA
Decoding Live View/Playback Resolution
3840*2160/2560*1920/2560*1440/
2048*1536/2304*1296/1080P/720P
Video Format H.265, H.264
Synchronous Playback 1-4 Channels
Storage SATA 1 SATA Interface (2TB HDD Included) Maximum Capacity 12TB (up to 6TB Capacity for Each HDD)
External HDD 1 eSATA Interface for HDD
External Interface USB Interface 2 x USB 2.0 Network Interface
• 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
• 8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Camera
PoE Supported Standard IEEE 802.3 af/at Max. Power Consumption 25W
Network Network Protocol HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browser Supported Edge, Firefox, Chrome, Safari
OS Supported PC: Windows, Mac OS; SmartPhone: iOS, Android Max. User Access 20 Users
General Power Supply DC 48V/1.875A Power Consumption <10W (Without HDD&PoE)
Working Environment Temperature: -10℃~+45℃ (14°F~113°F); Humidity: 10%~90% Dimensions (mm) 260(W) x 41(H) x 230(D)
Weight (w/o HDD) 1.2 kg


PoE Camera Specifications
Video & Audio Image Sensor 1/2.7" CMOS Sensor Video Resolution 2560x1920 (5.0 Megapixels) at 30 frames/sec
Lens f=4.0mm fixed; F=2.0, with IR-cut filter Video Format H.264
Field of View
• Horizontal: 80°
• Vertical: 42°
Day & Night Auto-switching IR-cut filter
Night Vision 30 meters (100ft) (LED: 18pcs/14mil/850nm) Audio Audio recording
Power PoE IEEE 802.3af, 48V Active DC Power DC 12.0V⎓1A, <12W
Interface Power DC power port System Reset button
Ethernet One 10M/100Mbps; RJ45
Audio Built-in microphone
Software Features Frame Rate
• Mainstream: 2fps - 30fps (default: 30fps)
• Substream: 4fps - 15fps (default: 10fps)
Code Rate
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
Browser Supported IE, Edge, Chrome, Firefox, Safari OS Supported PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm Person detection; vehicle detection; motion detection Record Mode Motion-triggered recording (default); scheduled recording
Maximal User Access 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Working Environment Temperature Operating temperature: -10°C - +55°C (14°F - 131°F) Humidity Operating humidity: 10% - 90%
Waterproof IP66
Size & Weight Dimension Φ186*67mm Weight 425g
