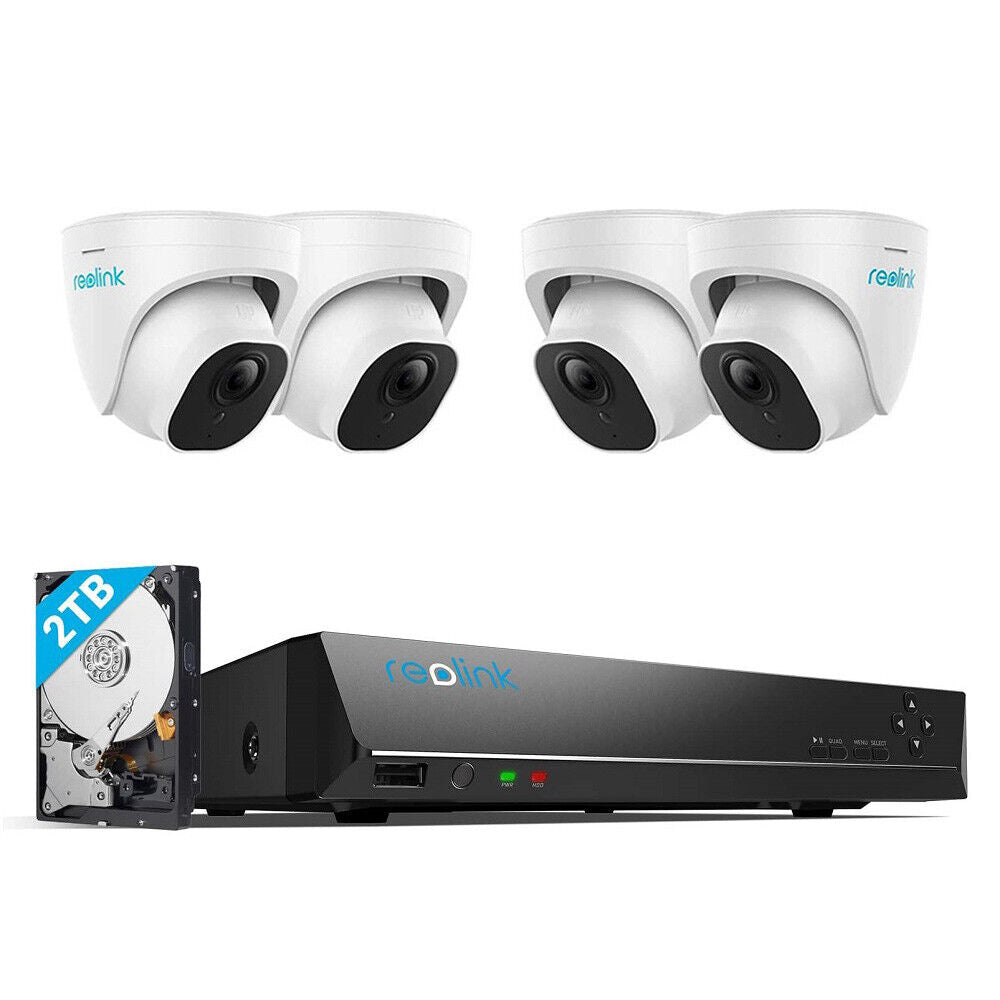

Reolink 5MP 8CH NVR PoE IP Security Camera Kit with Person/Vehicle Detection
Reolink 5MP 8CH NVR PoE IP Security Camera Kit with Person/Vehicle Detection




Buzzer: The buzzer in NVR makes sound warning.
Email: Email photos or 30-second video clips.
App: Push notifications to your mobile device.
FTP: Save and upload captured images & videos to an FTP server.


●Support all cameras recording at the same time (up to 8 cameras).
●If you want longer recording, try motion detection recording, which will trigger recording only when motion is detected.
●Allow you to install an external hard disk drive via e-SATA for more storage (up to 6TB).

●4-channel simultaneous playback.
●Quick search for any event that happened at any time.
●Freely playback any event on days, hours and even minutes with the help of timer axis under the split screen.

For remote access and control: Get live streaming via free Reolink App on iOS & Android devices, through free Reolink Client software on Windows pcs & Mac computers, or via web browsers. Also, up to 19 user accounts can be created to share access.



![]() |
|
|||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
| 811A | 822A | 842A | 823A | 810A | 820A | 812A | 510A | 510A-Black | 520A | |
| PoE Cameras with Person/Vehicle Detection and Zoom | PoE Cameras with Person/Vehicle Detection | |||||||||
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
| Duo PoE | Duo WiFi | 523WA | 542WA | 511WA | E1 Outdoor | 510WA | Lumus | 410W | E1 Series | |
| Dual Lens Cameras | WiFi Cameras with Person/Vehicle Detection and Zoom | Outdoor/ Indoor WiFi Cameras | ||||||||


| RLN8-410 8-channel NVR Specifications | ||||
| Hardware | Hardware V2 |
|||
| Video/Audio Input | IP Video Input | PoE IP camera x 8 | Audio Input | Cameras with built-in mic |
| Video/Audio Output | Video Output | VGA, HDMI | Display Resolution |
• HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
• VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768
|
| Audio output | 1-channel, RCA | |||
| Decoding | Video Format | H.264, H.265 | Live View/Playback Resolution | 3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p |
| Synchronous Playback | Up to 4 channels | |||
| HDD | SATA | 1 x SATA interface (1 x Seagate 2TB HDD included) | External HDD | 1 eSATA interface for HDD |
| Capacity | Up to 8TB (Max. 4TB capacity for each HDD) | |||
| External Interface | USB Interface | 2 x USB 2.0 | Network Interface |
• RJ45,10M/100M Ethernet, 8 Network Ports for IP camera, 1 Giga Network Port for LAN/WAN
• 8 Independent 100 Mbps PoE Network Interfaces
|
| PoE | Max. Power Per Port | 25W | Supported Standard | IEEE 802.3af/at |
| Network | Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP | Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; SmartPhone: iOS, Android | Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) | |
| General | Power Supply |
DC 48V/2A | Power Consumption | <10W (without HDD&PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% | Dimensions | 260 x 41 x 230mm | |
| Weight | 1.4kg | |||
| Warranty | Limited Warranty | 2-year limited warranty. | ||

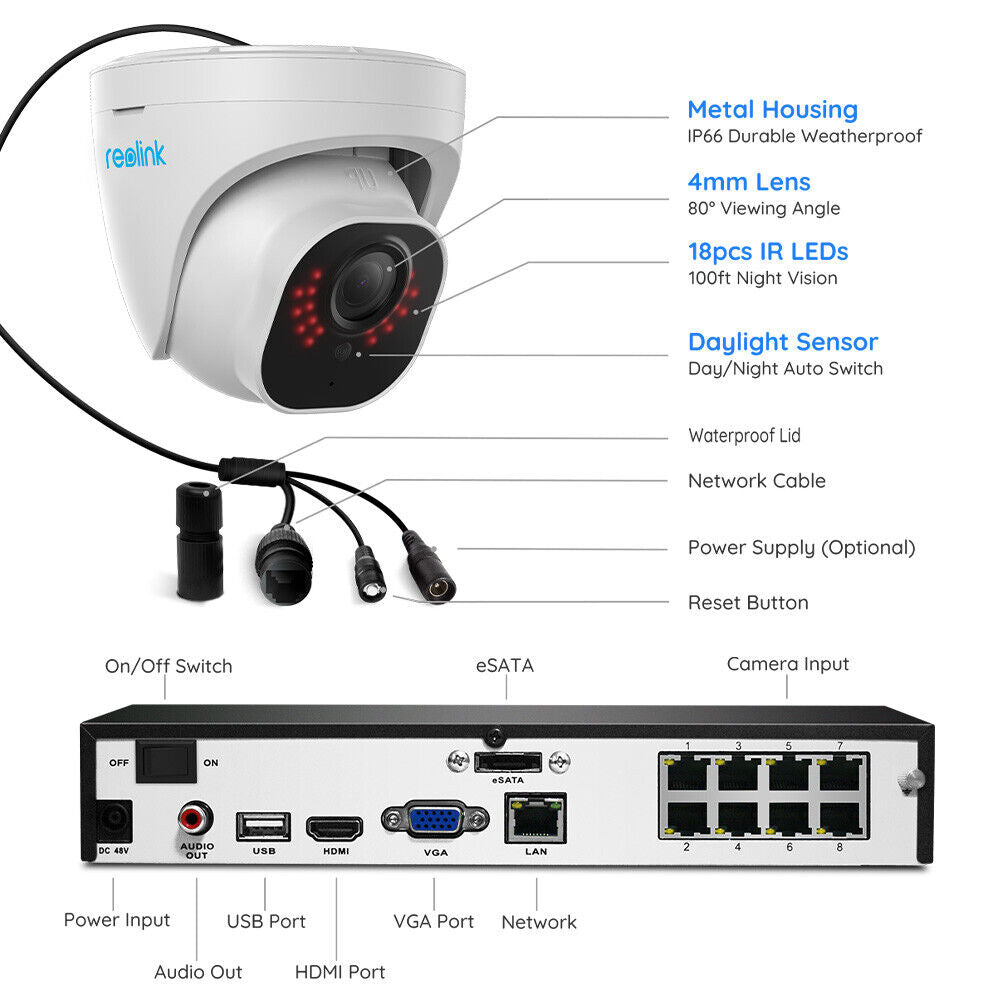

| D500 5MP Camera Specifications | ||||
| Video & Audio | Image Sensor | 1/2.7" CMOS Sensor | Video Resolution | 2560x1920 (5.0 Megapixels) at 30 frames/sec |
| Lens | f=4.0mm fixed; F=2.0, with IR-cut filter | Video Format | H.264 | |
| Field of View |
• Horizontal: 80°
• Vertical: 58°
|
Day & Night | Auto-switching with IR-cut filter | |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) | Audio | Audio recording | |
| Power | PoE | IEEE 802.3af, 48V Active | DC Power | DC 12.0V⎓1A, <12W |
| Interface | Power | DC power port | System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 | Audio | Built-in microphone | |
| Software Features | Frame Rate |
• Mainstream: 2fps - 30fps (default: 30fps)
• Substream: 4fps - 15fps (default: 10fps)
|
Code Rate |
• Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps)
• Substream: 64Kbps - 512Kbps (default: 160Kbps)
|
| Smart Alarm | Motion detection; person detection; vehicle detection | Record Mode | Motion-triggered recording; scheduled recording; 24/7 recording | |
| Working Environment | Temperature | Operating temperature: -10°C - +55°C (14°F - 131°F) | Humidity | Operating humidity: 10% - 90% |
| Waterproof | IP66 | |||
| Size & Weight | Dimension | Φ105*93mm | Weight | 480g |
| Warranty | Limited Warranty | 2-year limited warranty. | ||
