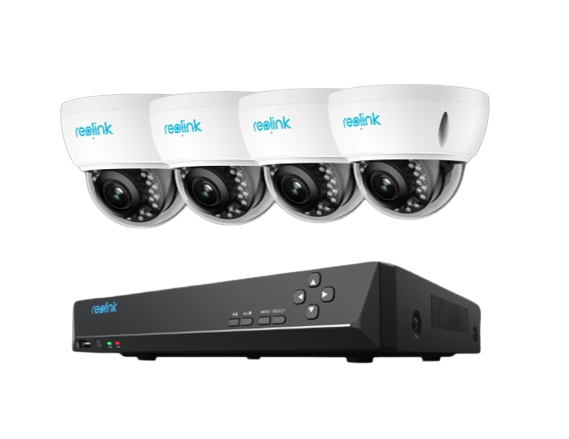

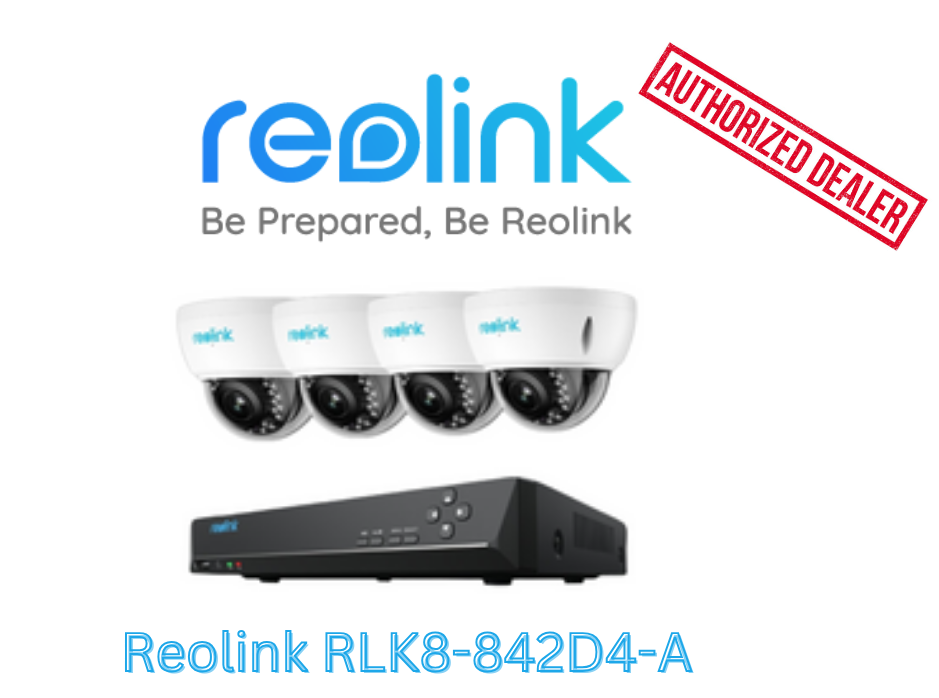

Reolink 8CH 2TB NVR 4K 8MP Ultra HD IK10 PoE 5X Optical Zoom Security Camera

Regular price $725.00
Sale price $725.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 8CH 2TB NVR 4K 8MP Ultra HD IK10 PoE 5X Optical Zoom Security Camera - Secure IT Global

Reolink 8CH 2TB NVR 4K 8MP Ultra HD IK10 PoE 5X Optical Zoom Security Camera

Regular price $725.00
Sale price $725.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

4K Vandal-Proof PoE Security Camera System with 5X Optical Zoom



4K 8MP Ultra HD

Person/Vehicle Detection

IK10 Vandal Proof

8-Channel 2TB NVR

                                    Intelligent Detection

The cameras in this PoE security camera system can analyze the shapes of people, vehicles, and pets, thus sending you more accurate and meaningful alerts in real time. No subscription is needed.

                                 Day and Night in 4K Ultra HD

4K Ultra HD captures sharp images with the finest details during the day and at night. You’re better informed with the movements of anyone in front of the camera.

                                         5X Optical Zoom

Each camera in this kit is equipped with a motorized varifocal lens, providing a wide viewing angle of 27°~96°. Its 5X optical zoom allows you to zoom in for astonishing details and zoom out for a broader perspective.

                                         IK10 Vandal-Proof

Being IK10 vandal-proof means that the cameras are tougher to withstand outside damage. The solid and robust housing protects the lens from accidental damage and human attempts to destroy the camera.


                                       Non-Stop Recording

With the 2TB HDD and the storage capacity of up to 12TB, the PoE security camera system supports all cameras to record continuously at the same time.

                               Work with Various Reolink IP Cameras

This PoE security camera system can be expanded up to 8-camera kit with Reolink IP cameras - bullet, dome or PTZ; 12MP, 4K, 5MP or 4MP – to cover every corner in your home, store or factory.



* For best compatibility, Reolink cameras are recommended.


                                     Fearless of Any Harsh Weather

Cameras in this system can be used indoors or outdoors. The rugged body and housing enable these cameras to withstand powerful water jets, intense heat, humidity, and the cold.

Specifications:

Hardware

Hardware

V2

Video/Audio Input

IP Video Input

PoE IP camera x 8

Audio Input

Cameras with built‐in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

Audio output

1‐Channel, RCA

Decoding

Video Format

H.264, H.265

Live View/Playback Resolution

4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p

Synchronous Playback

Up to 4 Channels

HDD

SATA

1 x SATA interface (1 x 2TB HDD included)

External HDD

1 eSATA interface for HDD

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ‐45 10/100 Mbps self‐adaptive Ethernet interface for LAN/WAN

• 8, RJ‐45 10/100 Mbps self‐adaptive PoE Ethernet interface for IP camera


PoE

Max. Power Per Port

25W

Supported Standard

IEEE 802.3af/at

Network

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams
(10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~53V

Power Consumption

<10W (Without HDD & PoE)

Working Environment

Temperature: &dash;10°C~+45°C (14°F~113°F); humidity: 10%~90%

Dimensions

260 x 41 x 230mm

Weight

1.4kg

RLC-842A:

Video & Audio

Image Sensor

1/2.8" CMOS sensor

Video Resolution

Default: 3840 x 2160 (8.0 Megapixels) at 25 fps

Lens

f=2.7-13.5mm; F=1.6-3.3

Optical Zoom

5X

Video Format

H.265

Field of View

• Horizontal: 105°-31°

• Vertical: 55°-17°

Day & Night

Auto-switching

Night Vision

30 Meters (100 ft) (LED: 24pcs/14mil/850nm)

Audio

Audio recording

Power

POE

IEEE 802.3af, 48V Active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps RJ45

Storage

Micro SD card slot (max. 256GB)

Audio

Built-in microphone

Software Features

Frame Rate

• Mainstream: 2fps - 25fps (default: 25fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)

• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browser Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; pet detection

Record Mode

Motion-triggered recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS,
DDNS, FTP, P2P

Maximal User Access

20 users (1 admin account & 19 user accounts); Support up to 12 simultaneous
video streams (10 substreams & 2 mainstreams)

Smart Home

Google Assistant

Working Environment

Temperature

Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP66

Vandal-proof

IK10

Size & Weight

Dimension

Φ133*100.25mm

Weight

686g
