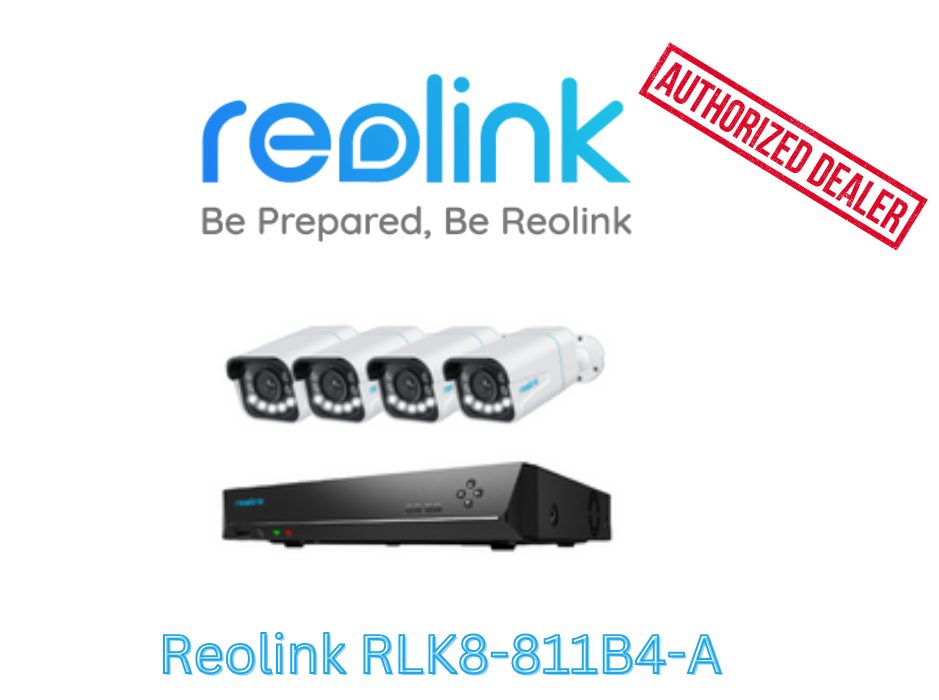

Reolink 8CH NVR 4K 8MP PoE 5X Optical Zoom Color Night Vision Security Camera

Regular price $725.00
Sale price $725.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
Reolink 8CH NVR 4K 8MP PoE 5X Optical Zoom Color Night Vision Security Camera - Secure IT Global

Reolink 8CH NVR 4K 8MP PoE 5X Optical Zoom Color Night Vision Security Camera

Regular price $725.00
Sale price $725.00 Regular price
Unit price
Product description
Shipping & Return
User Manual

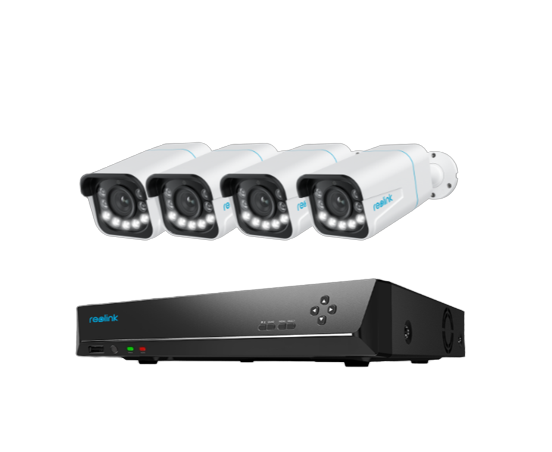

4K Smart PoE Camera System with 5X Optical Zoom & Spotlights



4K 8MP Ultra HD

Color Night Vision

Person/Vehicle Detection

8-Channel NVR

                              Smart Detection, Secured Home

By analyzing the shapes of people, vehicles, and pets, it can precisely detect these objects. It brings you peace of mind by providing accurate real-time alerts and reducing false alarms.

                              Double Warning for the Unwelcome

Once an intruder is detected, the camera's spotlights and siren will be triggered or manually activated to warn off the would-be criminal. Stop the crime before it happens.

                                            Two-Way Talk

Built-in mic & speaker allow you to listen and talk back to whoever the camera catches in real time: A "hello" to families and friends or a warning to suspicious strangers.

                                     Rich Details with 4K UHD

This 8MP security system delivers excellent images and videos with the finest and most minute details. Enjoy the immersive visual experience with 4K clarity.

                                 5X Optical Zoom for More Details

The camera's motorized varifocal lens provides a 31°~105° viewing angle* and 5X optical zoom, allowing you to zoom in for a sharp close-up or zoom out for a clear overview.

                                          Colorful Night

When daylight is out, the cameras with 5 built-in spotlights continue to offer full-color video, bringing more visual details to help identify people and cars.

                                      Plug & Play with PoE

Transmission of both power and data is handled by one single network cable for each Power-over-Ethernet camera in the kit. Less wiring, less cost, more convenience..

                                        24/7 Continuous Recording

With a 2TB HDD and up to 12TB storage capacity, the PoE video surveillance kit supports all cameras to record continuously at the same time. You can have all-day videos without missing a beat.

                                 Work with Various Reolink IP Cameras

This security camera system can be expanded with up to 8 Reolink IP cameras—bullet , dome, or PTZ; 12MP, 8MP, 5MP, or 4MP—to cover every corner of your home, store, or factory.



* For best compatibility, Reolink cameras are recommended.

                                     Fearless of Harsh Weather

Armed with rugged housing, the IP66 weatherproof cameras of this security kit can stand up to thunderstorms, extreme cold/heat and any other harsh weather. Your faithful guard never quits.

Specifications:

RLN8-410:


Hardware

Hardware

V2

Video/Audio
Input

IP Video Input

PoE IP camera x 8

Audio Input

Cameras with built-in mic

Video/Audio Output

Video Output

VGA, HDMI

Display Resolution

• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768

• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768

Audio output

1-channel, RCA

Decoding

Video Format

H.264, H.265

Live View/Playback
Resolution

4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1
296/1080p/720p

Synchronous
Playback

Up to 4 channels

HDD

SATA

1 x SATA interface (1 x 2TB HDD included)

External HDD

1 eSATA interface for HDD

Capacity

Up to 12TB (max. 6TB capacity for each HDD)

External Interface

USB Interface

2 x USB 2.0

Network Interface

• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for
LAN/WAN

• 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP
camera

PoE

Max. Power Per Port

25W

Supported

IEEE 802.3af/at

Network

Network Protocols

HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS,
DDNS, NTP, FTP

Browsers Supported

Edge, Firefox, Chrome, Safari

OS Supported

PC: Windows, Mac OS; smartphone: iOS, Android

Max. User Access

20 users (1 admin account & 19 user accounts); up to 12
simultaneous video streams (10 substreams & 2 mainstreams)

General

Power Supply

DC 48V~53V

Power

<10W (without HDD & PoE)

Working
Environment

Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90%

Dimensions

260 x 41 x 230mm

Weight

1.4kg

RLC-811A:


Video & Audio

Image Sensor

1/2.8" CMOS Sensor

Video Resolution

Default: 3840 x 2160 (8.0 megapixels) at 25 frames/sec

Lens

f=2.7-13.5mm F=1.6-3.3, with IR cut

Optical Zoom

5X

Video Format

H.265

Field of View

• Horizontal: 105°- 31°

• Vertical: 55°- 17°

Day & Night

Auto-switching with IR-cut filter

Infrared Night Vision

Up to 30 meters (IR LED: 4pcs/28mil/850nm)

Color Night Vision

Spotlight: 5pcs/4W/6500K/450 lumens

Audio

Two-way audio

Power

PoE

IEEE 802.3af, 48V active

DC Power

DC 12.0V⎓1A, <12W

Interface

Power

DC power port

System

Reset button

Ethernet

One 10M/100Mbps; RJ45

Storage

Micro SD card slot (Max. 256GB)

Audio

Built-in microphone and speaker

Software Features

Frame Rate

• Mainstream: 2fps - 25fps (default: 25fps)

• Substream: 4fps - 15fps (default: 10fps)

Code Rate

• Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)

• Substream: 64Kbps - 512Kbps (default: 256Kbps)

Browsers Supported

Edge, Chrome, Firefox, Safari

OS Supported

PC: Windows, Mac OS; Smartphone: iOS, Android

Smart Alarm

Motion detection; person detection; vehicle detection; pet
detection

Record Mode

Motion recording (default); scheduled recording; 24/7 recording

Protocols & Standards

HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P

Maximal User Access

20 Users (1 admin account & 19 user accounts); Supports up to 12 simultaneous video streams (10 substreams & 2
mainstreams)

Work with

Google Assistant

Working Environment

Temperature

Operating temperature: -10°C~+55°C (14°F~131°F)

Humidity

Operating humidity: 10% ~ 90%

Waterproof

IP66

Size & Weight

Dimension

80 x 72 x 238mm

Weight

838g
