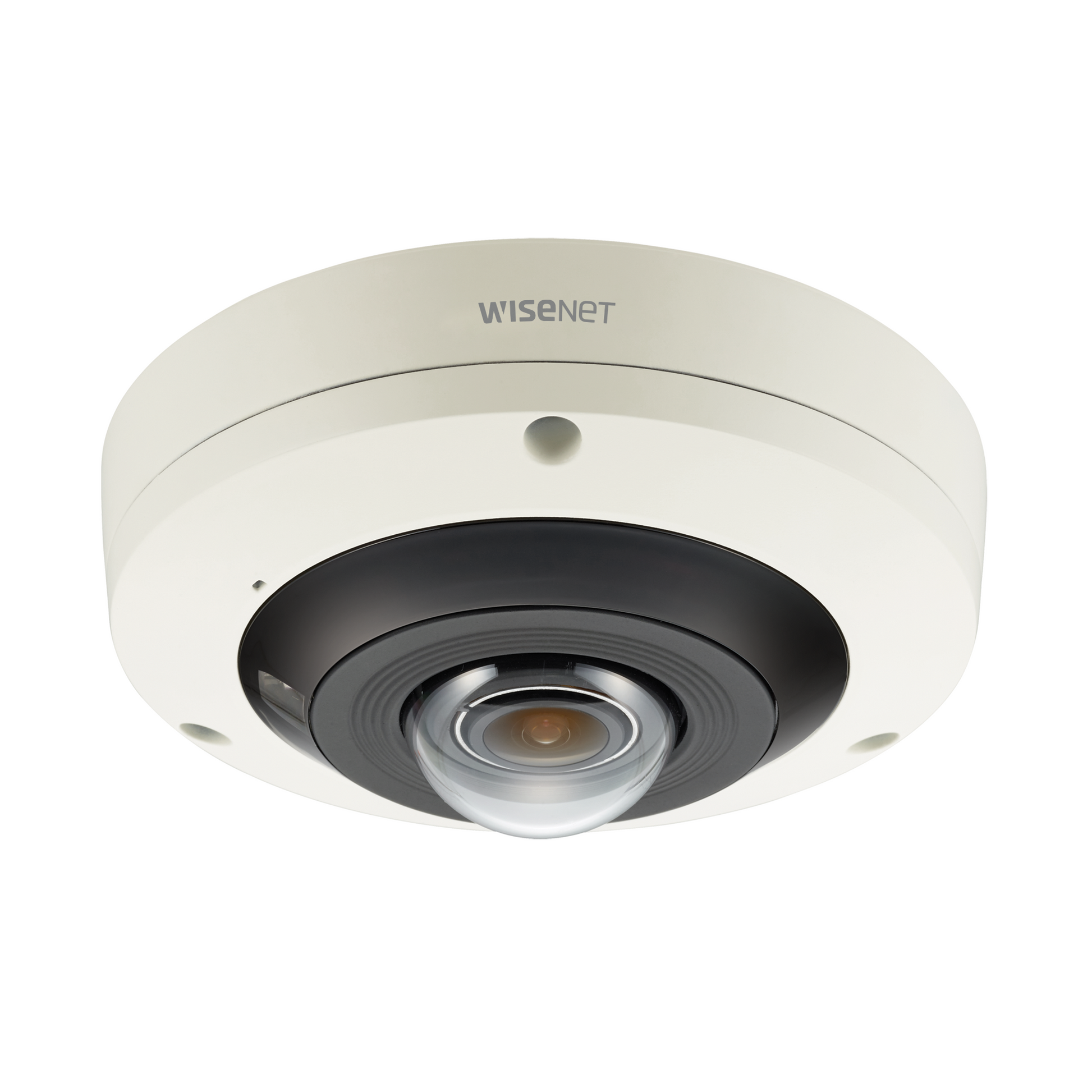

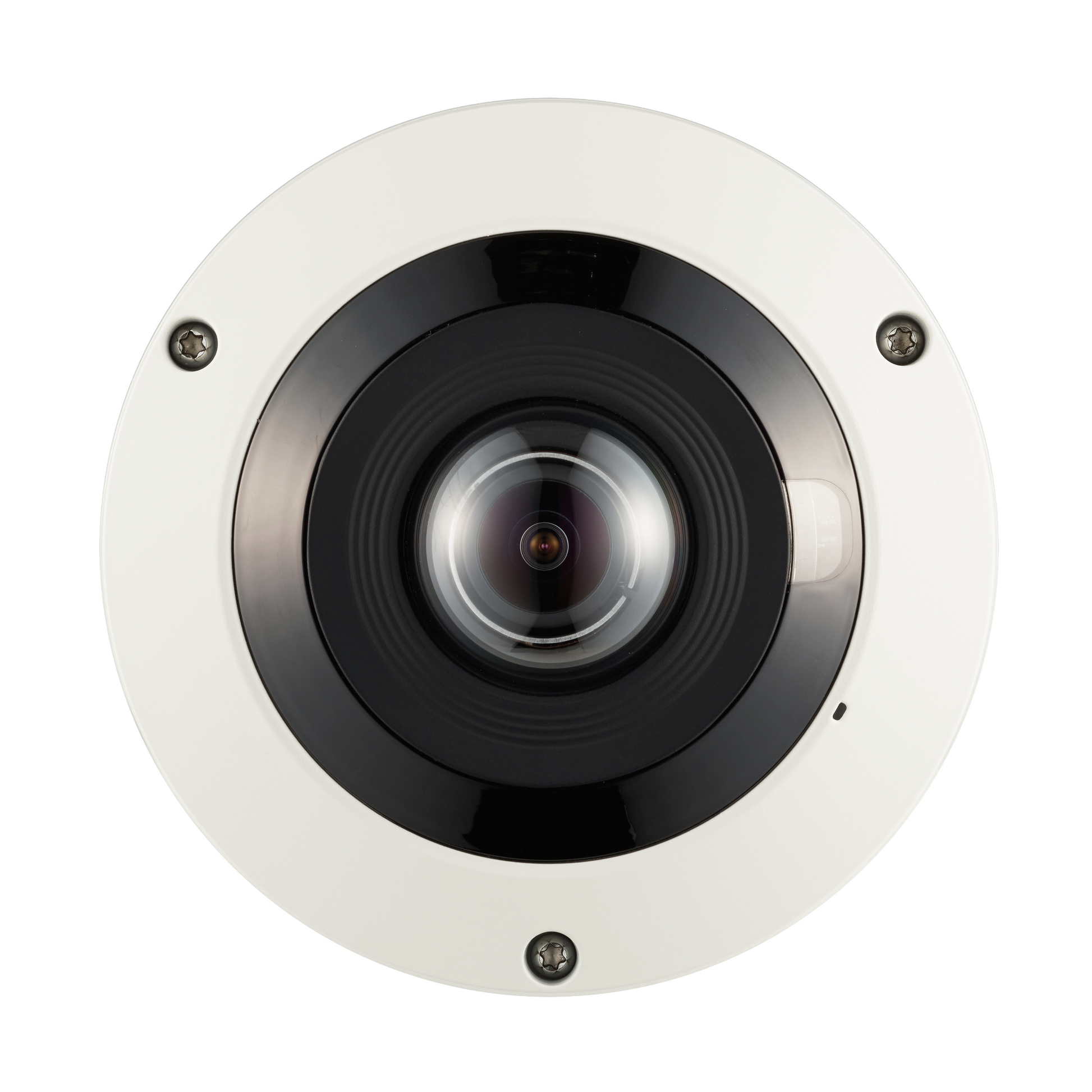

Samsung Hanwha Techwin PNF-9010RV 4K H.265 NW Fisheye Security Camera
Samsung Hanwha Techwin PNF-9010RV 4K H.265 NW Fisheye Security Camera
- 9MP @ 25fps
- 12MP @ 20fps
- Triple Codec H.265/H.264/MJPEG
- Simple Focus
- Wide Dynamic Range 120dB
- On-board Analytics
- IP66, IK10
Product Spec
Video Imaging Device 1/1.7" 12M CMOS Min. Illumination Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on) Video Out CVBS : 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P), for Installation Lens Focal Length (Zoom Ratio) 2.1mm fixed focal Max. Aperture Ratio F2.2 Angular Field of View H: 180° / V: 180° / D: 180° Min. Object Distance 0.5m(1.64ft) Focus Control Simple focus Operational Camera Title Displayed up to 60 characters Day & Night Auto(ICR) Backlight Compensation BLC, WDR Wide Dynamic Range 120dB Digital Noise Reduction SSNR Defog Support Motion Detection 8ea, 8point polygonal zones Privacy Masking 8ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/WhiteGain Control Low / Middle / High White Balance ATW / AWC / Manual / Indoor / Outdoor Electronic Shutter Speed Minimum / Maximum / Anti flicker Video Rotation Flip, Mirror Analytics Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection Business Intelligence People counting, Heatmap Alarm I/O Input 1ea / Output 1ea Alarm Triggers Analytics, Network disconnect, Alarm input Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm outputAudio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K OhmAudio Out Line out, Max.output level: 1Vrms IR Viewable Length 15m(49.21ft) Network Ethernet RJ-45(10/100BASE-T) Video Compression H.265/H.264: Main/Baseline/High, MJPEG Smart Codec Manual(5ea area), WiseStreamⅠ Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBRStreaming Multiple streaming(Up to 3 profiles) Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)Application Programming Interface ONVIF Profile S/G
SUNAPI(HTTP API)
Wisenet open platformEnvironmental & Electrical Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH Storage Temperature / Humidity -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH Certification IP66, IK10
EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009,
EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014,
EN61000-4-6:2009Mechanical Color / Material Ivory / Aluminum Product dimensions / weight Ø146x63.4mm(Ø5.75x2.5"), 810g(1.79 lb)
