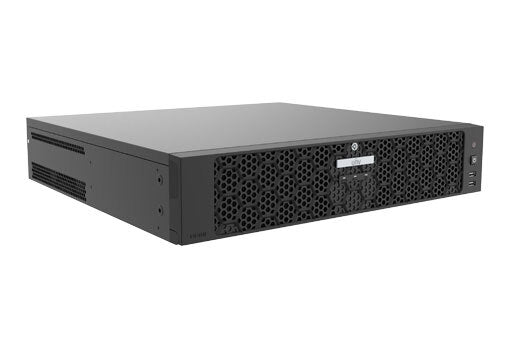

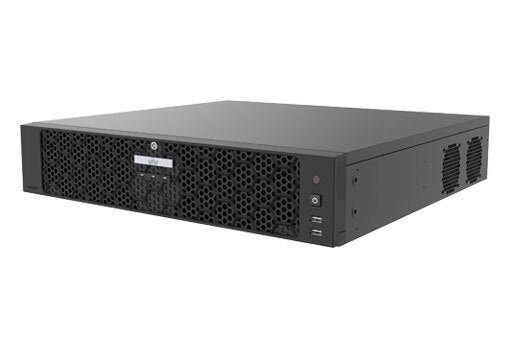

UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

Regular price $5,689.00
Sale price $5,689.00 Regular price $0.00
Unit price
  • Vendor:
  • Availability:
    Out of stock
  • SKU:
    NVR508-64E-R
UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Security Surveillance Recorder NVR

Regular price $5,689.00
Sale price $5,689.00 Regular price $0.00
Unit price
Description
Specification
What's Included
Shipping & Return
User Manual

UNV 64-Ch 32MP 8 SATA HDDs Audio NDAA Uniview Network Security Surveillance Recorder NVR

Features:

Support Ultra 265/H.265/H.264 video formats

64 channel input

Support mainstream cameras of ONVIF conformance (Profile S, Profile G, Profile T) and RTSP protocols

Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output

Up to 32 Megapixels resolution recording

8 SATA HDDs, up to 16TB for each HDD

Support N+1 Hot spare

Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable

Redundant power supply optional

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Specification:

Video/Audio Input
IP Video Input 64-ch
Audio Input 1-ch, RCA
Network
Incoming bandwidth 384Mbps
Outgoing bandwidth 384Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPV6
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome (version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output HDMI1, HDMI2:
4K (3840x2160)@60, 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
VGA1, VGA2:
1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
Recording Resolution 32MP/16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 2-ch, RCA
Two-way Audio 1-ch, RCA(Using the audio input and output)
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live View Display HDMI1, VGA1: 1/4/6/8/9/16/25/36/64
HDMI2, VGA2: 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event Snapshot 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format Ultra 265/H.265/H.264
Live View/Playback 32MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 72 x 720P@30, 128 x D1
Hard Disk
SATA 8 SATA interfaces
Capacity Up to 16TB for each disk
Disk Group Support
Disk Array Type RAID 0/1/5/6/10
External Interface
Network Interface 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface Front: 2 x USB2.0, Rear panel: 2 x USB3.0
eSATA 1
RS232 1
RS485 1
Alarm In 16-ch
Alarm Out 10-ch
Power Output 12V
General
Power Supply 100~240V AC
Power Consumption: ≤ 50W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 442mm × 448mm × 93mm (17.4" × 17.6" × 3.7")
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC Part15 Subpart B
