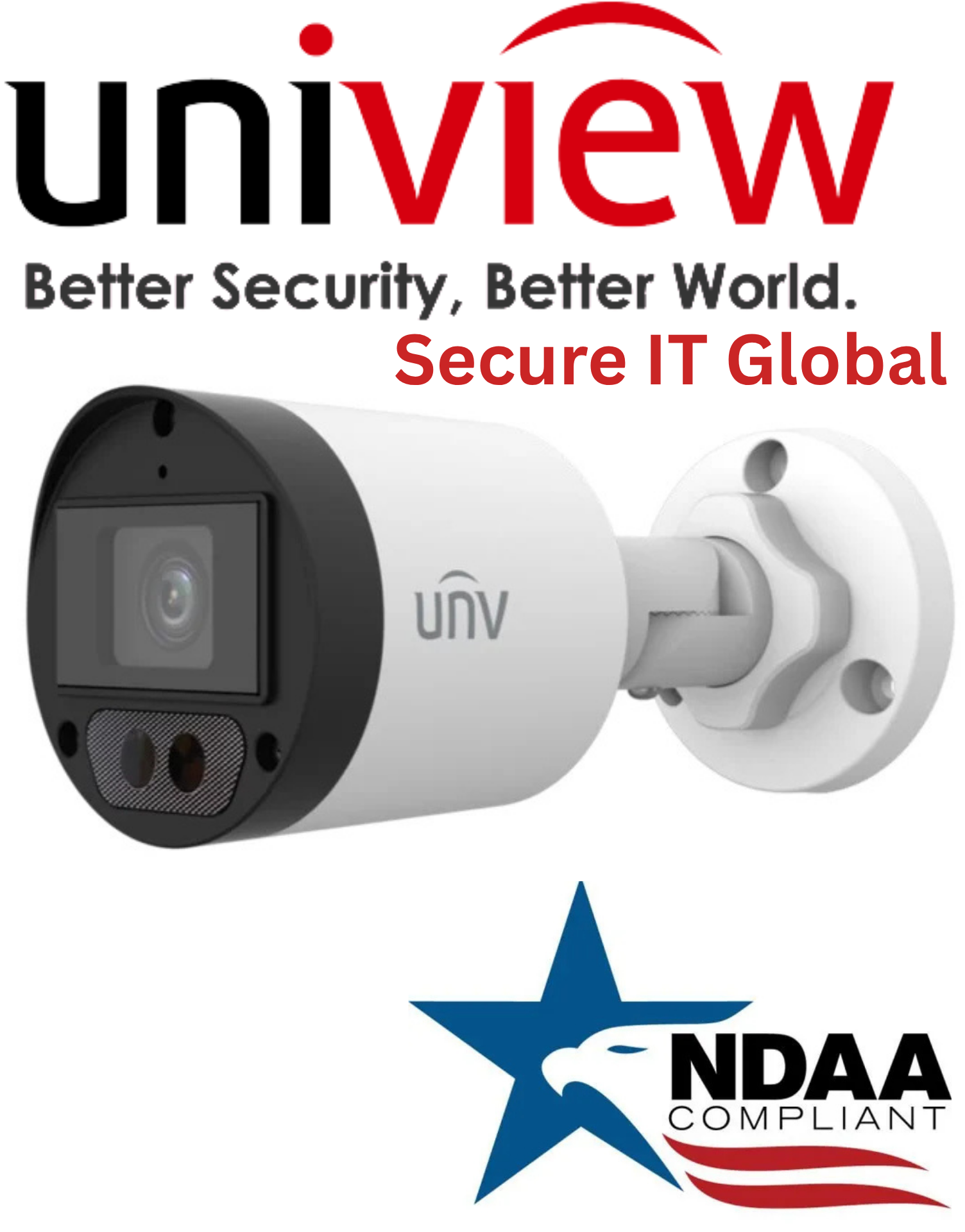

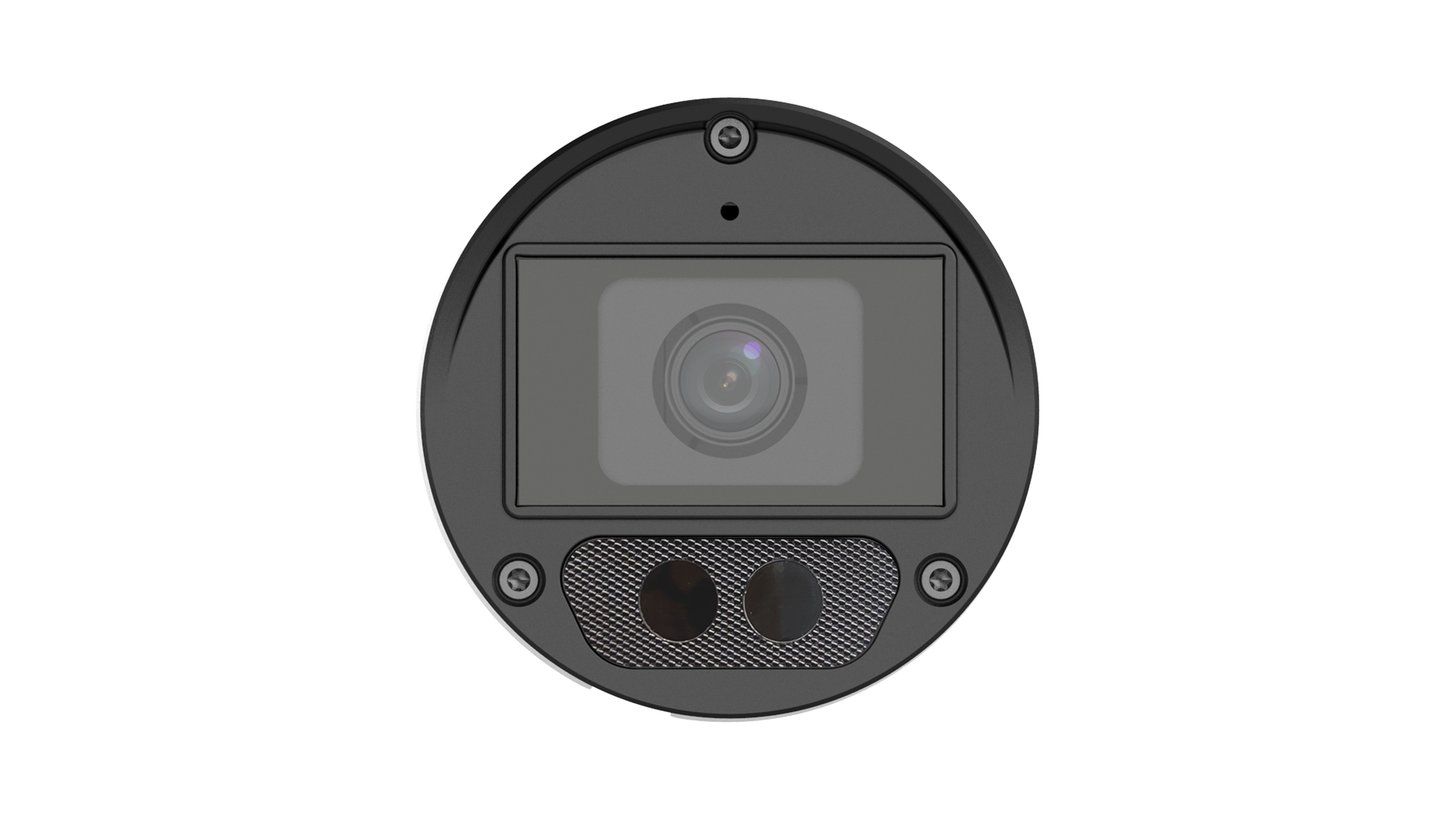

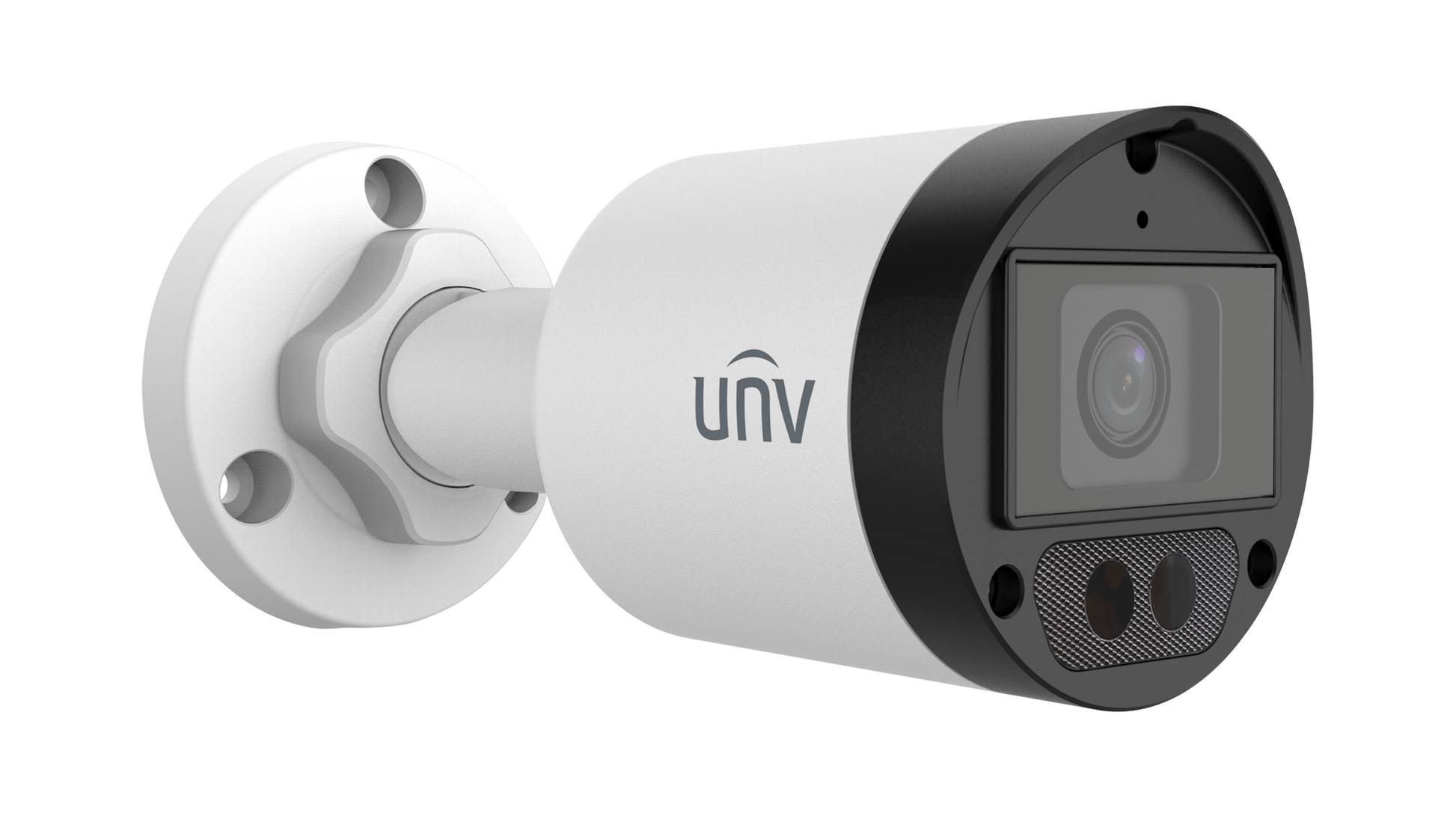

UNV 8MP IP67 Audio Uniview Analog Bullet Security Surveillance Camera 2.8mm Lens

UNV 8MP IP67 Audio Uniview Analog Bullet Security Surveillance Camera 2.8mm Lens

Regular price $153.30
Sale price $153.30 Regular price $0.00
Unit price
Product description
Shipping & Return
User Manual

Uniview 8MP IP67 Audio M12 LightHunter Bullet Analog Security Camera 2.8mm Fixed Lens

Features:

High quality imaging with 8MP resolution TVI/AHD/CVI/CVBS
Supports IR-cut filter with auto-switch (ICR)
LightHunter monitoring with high-sensitivity sensor
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
120dB true WDR technology enables clear image in strong light scene

Description:

The Uniview Analog Bullet Camera 8MP LightHunter fixed IR with a high-performance 1/2.7-inch CMOS sensor and 3D noise reduction technology. It supports flexible switch among TVI/CVI/AHD/CVBS through DIP switches, effectively enhancing product adaptability and diversity of networking solutions. With SYV-75-3 or other coaxial cable types, the camera can achieve low-cost, long-distance, and anti-interference mega-pixel HD video transmission without time delay.

Specification:

Specification:

Sensor
Pixel 8 MP
Sensor Size 1/2.7" CMOS
Min. Illumination 0.005 lux (F1.6, AGC ON)
0 lux (IR ON)
Lens
Focus 2.8 mm 4.0 mm
Lens Mount M12
Angle of View (H) 109.1° 86.8°
Angle of View (V) 61.0° 49.4°
Angle of View (D) 126.7° 99.9°
Illuminator
Illuminator Number Two IR illuminators
Illumination Distance 40m
Lifetime ≥ 60000 hours
Video
Resolution 4K: 3840(H) × 2160(V)
5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V)
4MP: 2560(H)×1440(V)
Frame Rate CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps
TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
CVBS: PAL, NTSC
Shutter Time PAL: 1/25s-1/50000s,
NTSC: 1/30s-1/50000s
Exposure Mode Four modes: Global (default), BLC, HLC, WDR
Day/Night Three modes: Auto (default), Day, Night
Digital Noise Reduction 2D/3D
White Balance Two modes: Auto (default), Manual
WDR 120 dB WDR
Smart IR Support
Flip Supports 180°horizontal flip, 180°vertical flip
Digital Defog N/A
Audio
Built-in Mic Support
Camera Audio CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power Interface 5.5 mm Power Interface
Video Output BNC, supports TVI/AHD/CVI/CVBS
Operating Environment
Temperature -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉)
Humidity ≤ 95% RH (non-condensing)
Surge Protection 4kV for power&4kV for video output interfaces
General
Power DC 12 V ± 25%
Power Consumption MAX 4.8W
Mount Corner Mount&Pole Mount
Dimensions 157mm*67mm*66mm (L*W*H)
Material Metal
Weight 300g(0.67lb)
OSD Menu Language 11 Languages: English, German, Spanish (Latin America), French, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Turkish
Certification
EMC CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035), FCC (FCC 47 CFR part15 B)
Safety CE-LVD (EN 62368-1)
Environment CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)
Protection IP67 (IEC 60529)
