UNV UTP Cat6 IP Network Cable Uniview Surveillance Security Accessory

$219.99

$219.99 ~~$0.00~~

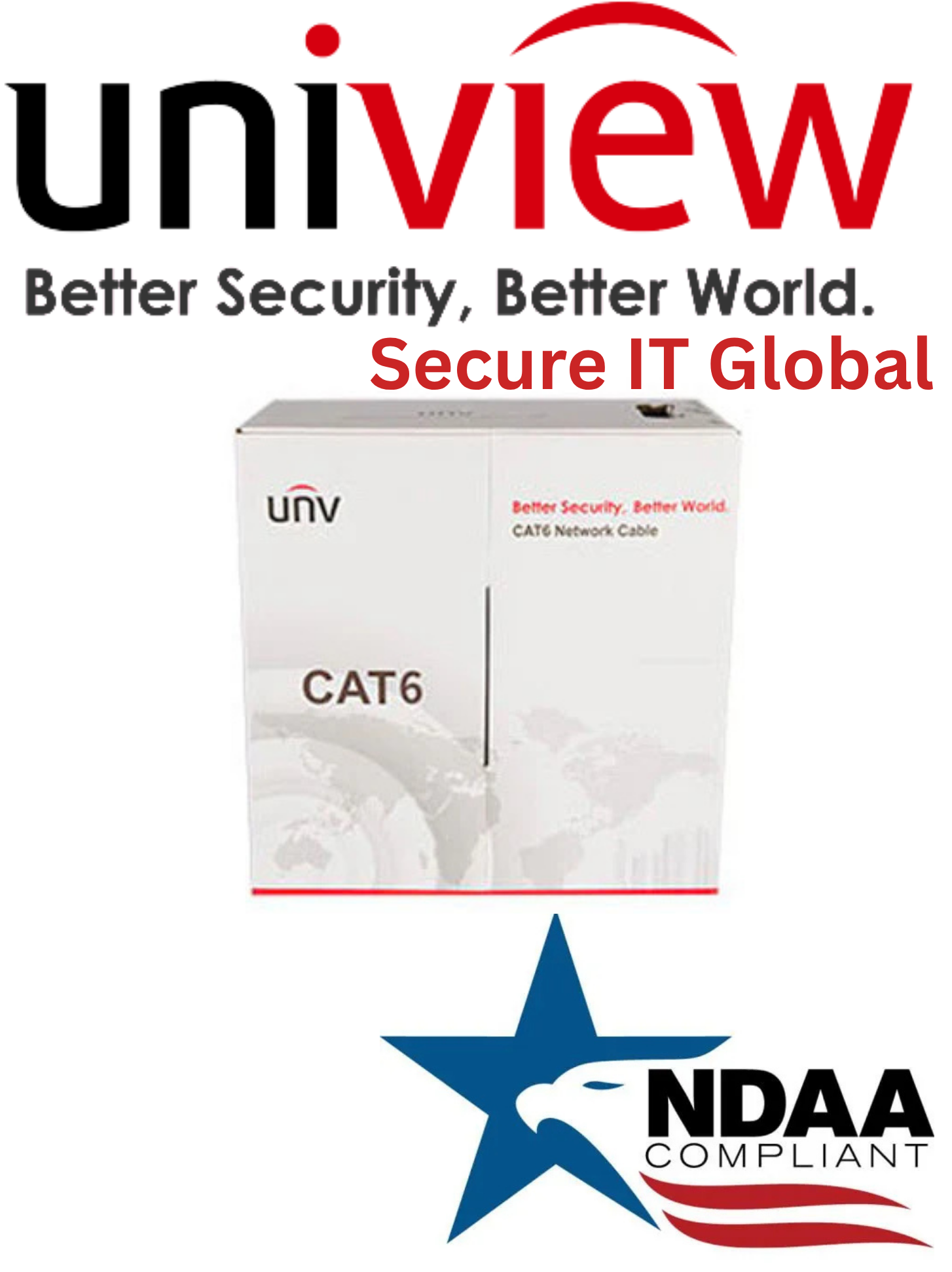

UNV UTP Cat6 Ethernet 1000' Pull Box IP Network Cable Uniview Security Accessory

The Uniview is the right cables for our electronic devices.

Features:

High-Quality Copper Conductors: Features 23 AWG oxygen-free copper for minimal signal loss and enhanced conductivity.

Advanced Insulation: High-density polyethylene insulation shields against interference, ensuring signal integrity.

Optimized Electrical Characteristics: Stable characteristic impedance across frequencies for reliable performance.

Durable Construction: Encased in a PVC sheath for added durability.

Installation Efficiency: Comes with a rip-cord and crossing backbone for streamlined installation.

Wide Temperature Range: Suitable for environments from -4°F to 140°C, accommodating various operational conditions.

Product specification

HSYV-6 4×2×0.57

Test Standard

YD/T1019-2013

Conductor

Material

OFC(Oxygen free copper)

AWG

23

Nom.O.D.(mm)

0.57±0.005 mm

DC resistance

≤95 Ω/km

Insulation

Material

HDPE

Thickness

0.2±0.02 mm

Diameter

1.02±0.05 mm

Color

Blue/White- Blue

Green/White-Green

Electrical Characteristics:
Frequency	Characteristic impedance	RL	ATT	NEXT
MHz	ohm	≥dB/100m	≤dB/100m	≥dB/100m
1	100±15	20.0	2.0	74.3
4	100±15	23.0	3.8	65.3
10	100±15	25.0	6.0	59.3
16	100±15	25.0	7.6	56.2
20	100±15	25.0	8.5	54.8
31.25	100±15	23.6	10.7	51.9
62.5	100±15	21.5	15.4	47.4
100	100±15	20.1	19.8	44.3
155	100±15	18.9	24.7	41.7
200	100±15	18.0	29.0	39.8
250	100±15	17.3	32.8	38.3

Frequency	FEXT	PS NEXT	PS FEXT	Phase delay
MHz	≥dB/100m	≥dB/100m	≥dB/100m	≤ns/100m
1	63.8	72.3	64.8	570.0
4	51.7	63.3	57.7	552.0
10	43.8	57.3	44.8	545.4
16	39.7	54.3	40.7	543.0
20	37.7	52.8	38.7	542.0
31.25	33.9	49.9	34.9	540.4
62.5	27.8	45.4	28.8	538.6
100	23.8	42.3	24.8	537.4
150	20.2	39.4	20.9	536.0
200	17.7	37.8	18.7	536.0
250	15.8	36.3	16.8	536.0

Orange
/White-Orange

Brown/White-Brown

Pitch

Offset pitch

≤20 mm

Cable pitch

≤120 mm

Sheath

Material

PVC(complies RoHS/REAC)

External O.D.

6.2±0.3 mm

Color

Blue(RAL5015)

Tensile strength

>13.5 Mpa

Thickness

0.6±0.05 mm

Surface Printing

Letter height

3.0±0.3 mm

Color

Black

Print error & Space

1±0.005 m

Case number

Yes

Packing

Carton

Once packing dimension

420mm*205mm*420mm

Twice packing dimension

450mm*440mm*445mm

Twice packing quantity

2 cases

Packing length

305±1m

Rip-cord

Yes

Crossing backbone

Yes

Ambient temperature

-20℃～60℃
